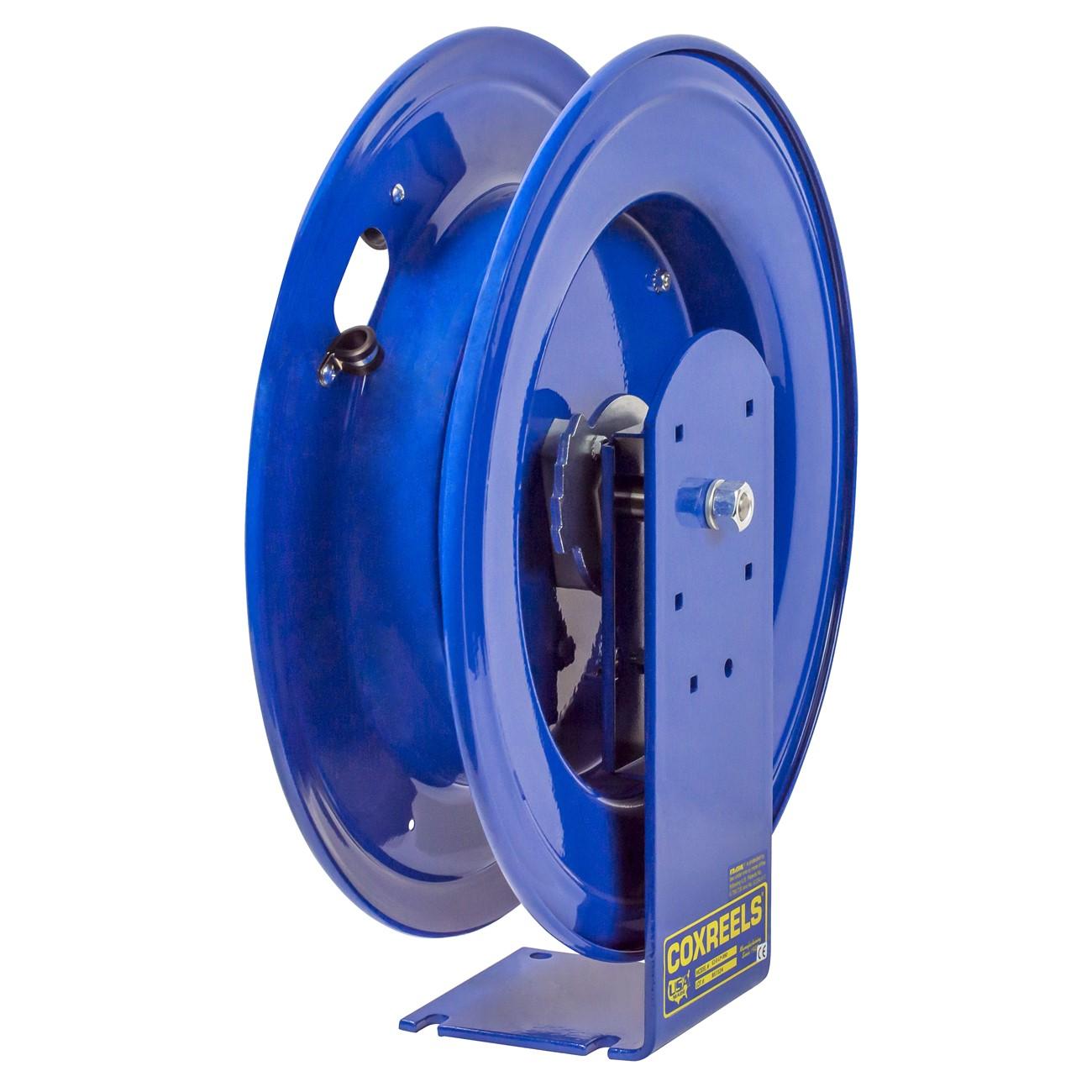

Coxreels EZ-E-HPL-130 Spring Rewind Hose Reel 1/4 in 30 Ft

Product Description

The COXREELS EZ-E-HPL-130 is a spring-driven, EZ-Coil equipped retractable hose reel built for high-pressure fluid delivery in professional service environments. It accepts 1/4-inch ID, 9/16-inch OD hose up to 30 feet in length. The EZ-Coil motor is a lubricated, enclosed cartridge-style unit that retracts hose up to 80 percent slower than conventional spring reels, reducing snap-back hazards on the job. The reel ships as a standalone assembly and is also compatible with COXREELS E Series interlocking cabinet bank systems for multi-reel installations requiring a clean, organized footprint.

The EZ-E-HPL-130 is suited for automotive service shops, fleet maintenance facilities, industrial plants, and similar environments where controlled hose retraction and durable construction are required. It installs on a solid single-pedestal steel base with a no-weld support post design. The machined zinc-plated steel swivel is a 90-degree full-flow NPT type, allowing hose replacement without removing the reel from its mount. This reel is appropriate for use in both standalone pedestal configurations and within the expandable E Series multi-bank cabinet system.

Key Features

• EZ-Coil enclosed cartridge spring motor retracts hose up to 80 percent slower than standard spring reels for improved operator safety
• Machined zinc-plated steel 90-degree full-flow NPT swivel allows hose changes without dismounting the reel
• CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and durability
• Solid one-piece steel base and no-weld support post provide stable single-pedestal mounting
• Multi-position lock ratchet mechanism holds hose at any extended length
• CPC powder coat finish resists chipping, rust, and general shop wear
• Compatible with E Series expandable interlocking cabinet bank systems for multi-reel configurations

Compatibility

Designed for use as a standalone spring-rewind hose reel or as part of the COXREELS E Series expandable interlocking cabinet bank system. Accepts 1/4-inch ID, 9/16-inch OD hose up to 30 feet.

Installation Notes

Installation is typically performed by a qualified service technician or maintenance professional. Shut off and depressurize the fluid supply line completely before connecting or disconnecting hose or swivel fittings. Verify that the NPT swivel inlet connection matches the supply line fitting before installation. Follow applicable OSHA and facility safety guidelines when mounting the pedestal base to ensure the unit is secure under operational load.

Technical Specifications

• Hose Inside Diameter: 1/4 inch
• Hose Outside Diameter: 9/16 inch
• Hose Length: 30 feet
• Swivel Type: 90-degree full-flow NPT, zinc-plated steel
• Spring Motor: EZ-Coil lubricated enclosed cartridge
• Base Material: Steel, no-weld single-pedestal
• Finish: CPC powder coat
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 39 pounds
• UPC: 674255730397

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-E-HPL-130
