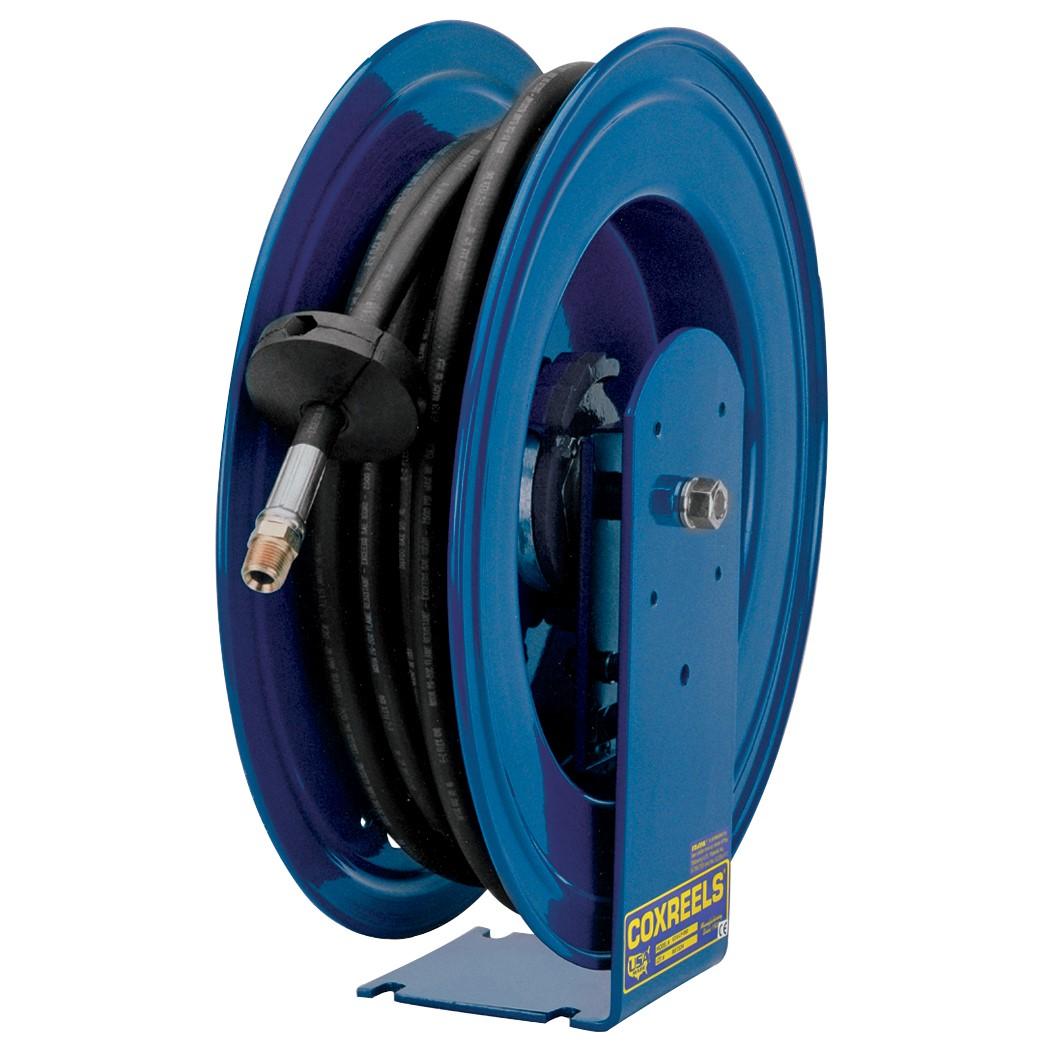

Coxreels EZ-E-HP-350 Spring Rewind Hose Reel 3/8 in 50 Ft

Product Description

The COXREELS EZ-E-HP-350 is a spring-rewind hose reel built for high-pressure fluid delivery in professional service environments. It accepts 3/8 inch ID, 11/16 inch OD hose up to 50 feet in length and uses Coxreels patented EZ-Coil retraction system, which slows retraction speed by up to 80 percent compared to conventional spring reels. The reel ships as a single-pedestal unit with a solid one-piece steel base and no-weld support post. It weighs 61 pounds and measures 20.5 inches long by 10.5 inches wide by 22 inches tall. Licensed HVAC technicians, fleet service shops, and industrial maintenance crews rely on this reel for organized, repeatable hose management at fixed service bays.

The EZ-E-HP-350 is part of the COXREELS E Series expandable bank system. Multiple reel assemblies can be combined inside interlocking metal cabinets to build a multi-bay delivery station for shops that need air, oil, coolant, or other fluid lines organized in one location. The single-pedestal base suits floor-mount or pit installations where vertical clearance is a factor. The reel is well suited to residential and commercial service bays, automotive shops, and industrial maintenance facilities.

Key Features

• EZ-Coil patented spring motor retracts hose up to 80 percent slower than conventional reels, reducing snap-back hazard
• Lubricated, enclosed cartridge-style spring motor is removable without pulling the reel from its mount
• Machined zinc-plated steel 90-degree full-flow NPT swivel allows hose installation and seal service without dismounting the reel
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Solid one-piece steel base with no-weld single pedestal design for maximum stability
• CPC powder coat finish resists chips and rust; multi-position lock ratchet holds hose at any extension; adjustable solid rubber hose stop included

Compatibility

Designed for use within the COXREELS E Series expandable multiple-bank cabinet system; compatible with 3/8 inch ID, 11/16 inch OD hose up to 50 feet in length.

Installation Notes

Installation is typically performed by a licensed mechanic, plumber, or qualified maintenance technician. Shut off and relieve pressure from the supply line before connecting or disconnecting the swivel fitting. Secure the pedestal base to a stable floor or mounting surface using fasteners rated for the expected load. Verify that hose working pressure rating meets or exceeds the system supply pressure before placing the reel in service.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 11/16 inches
• Hose Capacity: 50 feet
• Unit Dimensions: 20.5 inches L x 10.5 inches W x 22 inches H
• Weight: 61 pounds
• Swivel Material: Zinc-plated steel
• Finish: CPC powder coat
• Retraction Type: Spring-driven EZ-Coil
• Sold As: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-E-HP-350
