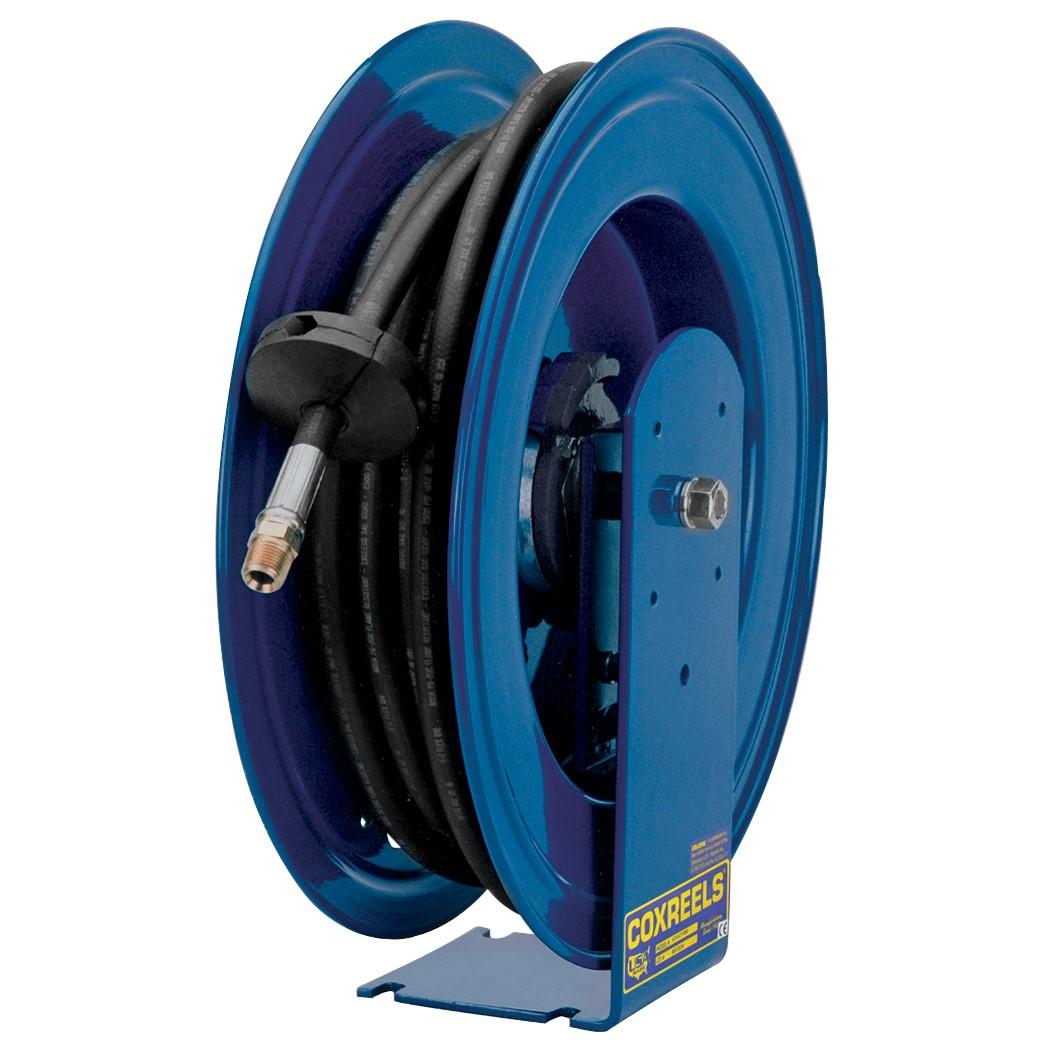

Coxreels EZ-E-HP-330 Spring Rewind Hose Reel 3/8 in 30 Ft

Product Description

The COXREELS EZ-E-HP-330 is a spring-driven, EZ-Coil equipped hose reel built for high-pressure fluid delivery in professional service environments. It accepts 3/8-inch ID, 11/16-inch OD hose up to 30 feet and retracts up to 80% slower than conventional spring reels, reducing snap-back hazards during retraction. The reel features CNC robotically spun and ribbed discs with rolled edges for structural rigidity and hose protection. A machined zinc-plated steel 90-degree full-flow NPT swivel allows seal servicing and hose changes without removing the reel from its mount. This unit weighs 47 pounds and measures 20.5 inches long, 10.5 inches wide, and 22 inches tall.

The EZ-E-HP-330 is designed for fixed installation in professional shop, fleet service, or industrial maintenance settings. It integrates into COXREELS E Series expandable metal cabinet bank systems, allowing multiple reel assemblies to be mounted together in a single interlocking enclosure. The single-pedestal, no-weld steel base and dual-axle Exclusive Super Hub support system make it well suited for high-cycle, high-demand work environments where stability and consistent retraction performance are required.

Key Features

• EZ-Coil patented retraction system slows spring rewind up to 80% compared to conventional reels, reducing hose whip hazard
• Lubricated, enclosed cartridge-style spring motor is removable for maintenance without full reel disassembly
• Machined zinc-plated steel 90-degree full-flow NPT swivel allows hose and seal service without dismounting the reel
• CNC robotically spun ribbed discs with rolled edges provide strength, durability, and hose protection
• Solid one-piece steel base with single-pedestal, no-weld construction and dual-axle hub support for maximum stability
• CPC powder coat finish is chip-resistant and rust-inhibiting; includes adjustable rubber hose stop, multi-position lock ratchet, and lubricated precision bearings

Compatibility

Designed for use within the COXREELS E Series expandable cabinet bank system; compatible with 3/8-inch ID, 11/16-inch OD hose up to 30 feet in length.

Installation Notes

Installation should be performed by a qualified technician familiar with high-pressure fluid systems. Depressurize the supply line and bleed residual pressure from the hose before connecting or servicing the swivel and fittings. The reel must be securely anchored to a structural surface using hardware appropriate for the mounting substrate and load. Consult applicable facility and plumbing codes for high-pressure hose assembly requirements.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 11/16 inches
• Hose Length Capacity: 30 feet
• Drive Type: Spring rewind (EZ-Coil)
• Swivel Material: Zinc plated steel
• Swivel Angle: 90 degrees
• Base Construction: One-piece steel, no-weld single pedestal
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 47 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-E-HP-330
