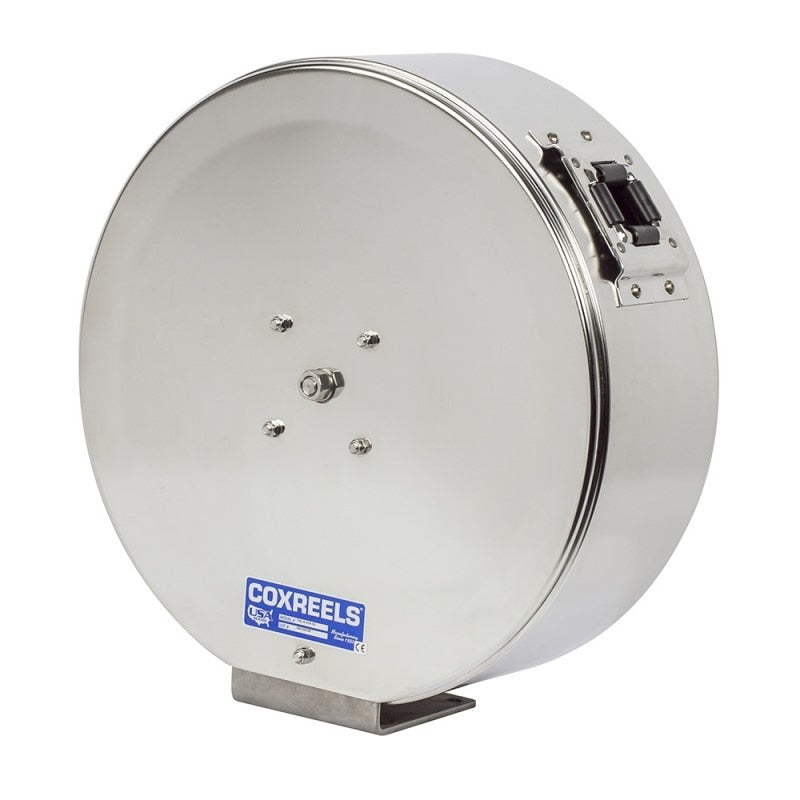

Coxreels ENML-N-450-SS Stainless Steel Hose Reel 1/2 in 50 Ft

Product Description

The COXREELS ENML-N-450-SS is an electro-polished stainless steel spring-driven hose reel built for environments where corrosion, contamination, and rust are constant concerns. It accepts 1/2 inch ID hose up to 50 feet in length and delivers a fully enclosed, non-corrosive fluid path from inlet swivel to hose end. The spring-driven retraction mechanism uses a cartridge-style motor that is removable without disassembling the reel, keeping maintenance straightforward. At 82 pounds, this is a heavy-duty unit suited to permanent installation. Licensed contractors and facilities maintenance technicians working in demanding environments are the primary installers.

This reel is designed for food processing facilities, chemical processing lines, marinas, and any wash-down or dispensing application where stainless steel fluid contact surfaces are required. The enclosed casing protects the hose from UV, chemical splash, and physical damage between uses. The adjustable hose roller guide assists with smooth, consistent hose layering on the drum. Applications involving potable water, sanitizing agents, or mild chemicals benefit from the non-reactive stainless steel construction throughout the fluid path.

Key Features

• Electro-polished stainless steel construction throughout fluid path and enclosure for corrosion resistance
• Cartridge-style spring motor is enclosed, lubricated, and removable for field maintenance without full reel disassembly
• Machined stainless steel 90-degree full-flow NPT swivel inlet provides a non-corrosive external fluid path
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and operator safety
• Solid one-piece stainless steel base and support post, no-weld single pedestal design for maximum stability
• Multi-position lock ratchet mechanism with lubricated precision bearings for controlled hose positioning

Compatibility

Designed as an OEM-style stainless steel spring-driven hose reel accepting 1/2 inch ID hose up to 50 feet, suited to food service, chemical processing, marine, and industrial wash-down installations requiring stainless steel fluid contact surfaces.

Installation Notes

Installation should be performed by a qualified plumbing or mechanical contractor familiar with hose reel mounting and fluid system connections. Shut off fluid supply and depressurize the line before making any inlet or outlet connections. The reel should be mounted to a structurally adequate wall, ceiling, or floor surface using fasteners rated for the combined weight of the unit and a fully charged hose. Follow all applicable plumbing codes and facility safety requirements for the fluid being dispensed.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 13/16 inch
Hose Length Capacity: 50 feet
• Drive Type: Spring driven
• Material: Electro-polished stainless steel
• Length: 22.25 inches
• Width: 12.75 inches
• Height: 23.75 inches
• Weight: 82 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: ENML-N-450-SS
