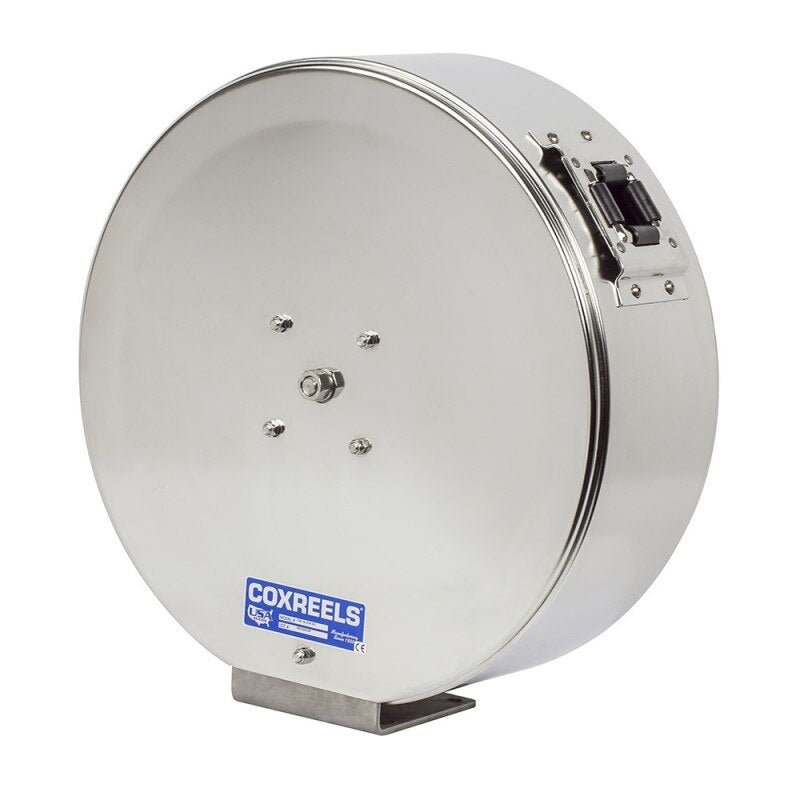

Coxreels ENML-N-425-SS Stainless Steel Hose Reel 1/2in 25ft

Product Description

The COXREELS ENML-N-425-SS is an electro-polished stainless steel, spring-driven hose reel built for applications where corrosion resistance and contamination control are non-negotiable. It accepts hose with a 1/2 inch inner diameter and 13/16 inch outer diameter, handling up to 25 feet of hose. The enclosed reel body and all-stainless fluid path make it well suited for food processing, chemical handling, marina environments, and any setting where rust, corrosion, or contamination must be eliminated. Licensed plumbers, industrial maintenance technicians, and marine service professionals are the typical installers.

The ENML-N-425-SS is designed for demanding service environments where standard carbon steel or zinc-plated reels are unsuitable. Typical applications include food and beverage facilities, chemical processing plants, marine docks, car wash bays, and industrial washdown stations. The enclosed casing provides both aesthetic appeal and added hose protection in high-traffic service areas.

Key Features

• Electro-polished stainless steel construction throughout, including fluid path, for non-corrosive performance
• Cartridge-style spring motor is enclosed, lubricated, and fully removable for maintenance without disassembling the reel
• 90-degree full-flow NPT swivel inlet machined from stainless steel for a leak-resistant, non-corrosive external fluid path
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Solid one-piece stainless steel base and support post, no-weld single pedestal design for maximum stability
• Multi-position lock ratchet mechanism and lubricated precision bearings for reliable hose positioning

Compatibility

Accepts hose with a 1/2 inch inner diameter and 13/16 inch outer diameter, up to 25 feet in length. Designed as an OEM-style stainless steel spring-driven hose reel for industrial, food service, chemical, and marine fluid-delivery applications.

Installation Notes

Installation should be performed by a qualified plumber or industrial pipefitter familiar with NPT threaded connections and local plumbing codes. Shut off and depressurize the fluid supply before connecting or disconnecting hose reel fittings. Secure the reel base to a structurally sound mounting surface rated for the combined weight of the reel and filled hose. Verify that the hose material and fittings are compatible with the intended fluid and operating pressure before placing the reel in service.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 13/16 inch
• Hose Capacity: 25 feet
• Drive Type: Spring-driven
• Material: Electro-polished stainless steel
• Inlet Type: 90-degree full-flow NPT swivel
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 61 pounds
• UPC: 674255715851

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: ENML-N-425-SS
