Coxreels ENML-N-350-SS Stainless Steel Hose Reel 3/8 in 50 Ft

Product Description

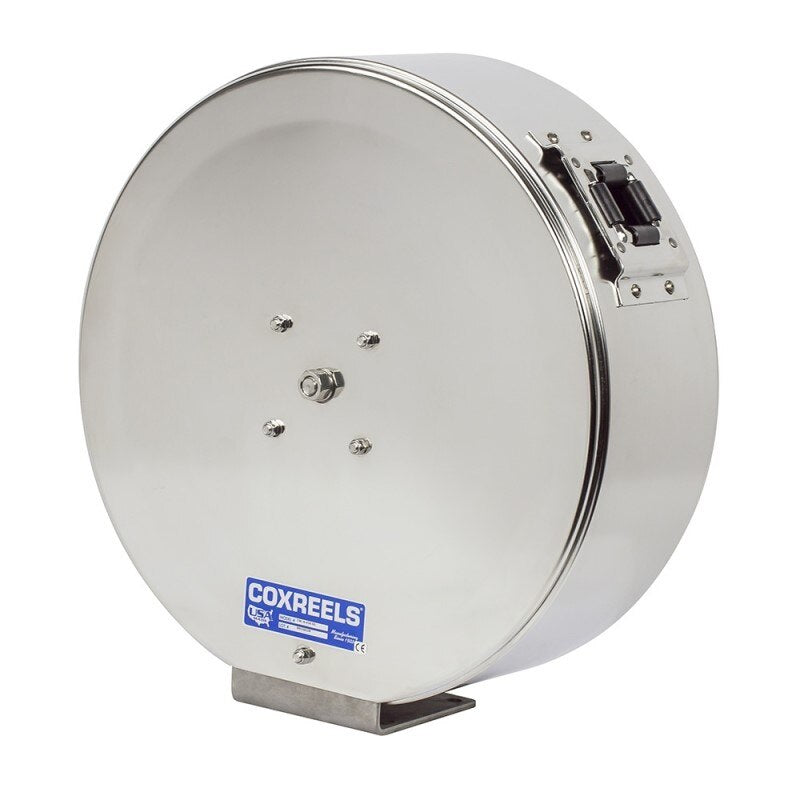

The COXREELS ENML-N-350-SS is an electro-polished stainless steel spring-rewind hose reel from the EN-SS Series, designed for fluid dispensing applications where corrosion resistance and contamination control are critical. It accommodates 3/8 inch ID, 11/16 inch OD hose up to 50 feet in length. The spring-driven retraction mechanism and fully stainless steel fluid path make this reel suitable for demanding environments where standard steel components would corrode or contaminate the media being dispensed. Installation is typically handled by licensed plumbers, industrial maintenance technicians, or fluid system specialists.

This reel is built for use in food and chemical processing facilities, marinas, wash-down stations, and similar environments where rust, corrosion, and contamination are ongoing concerns. The enclosed stainless steel casing and non-corrosive fluid path make it appropriate for both indoor and outdoor installations where hygiene and material integrity are required. It is sold as a single unit and is suitable for permanent wall, floor, or ceiling mounting in industrial and commercial settings.

Key Features

• Electro-polished stainless steel construction throughout for corrosion resistance and clean fluid paths
• Spring-driven automatic rewind with cartridge-style motor that is removable for maintenance without disassembling the reel
• Machined stainless steel 90-degree full-flow NPT swivel inlet with non-corrosive external fluid path
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for structural strength and hose protection
• Enclosed 3-piece stainless steel casing with adjustable hose roller guide for hose protection and clean appearance
• Multi-position lock ratchet mechanism and lubricated precision bearings included

Compatibility

Designed for use with 3/8 inch ID, 11/16 inch OD hose up to 50 feet in length in spring-rewind reel applications requiring stainless steel construction.

Installation Notes

This reel should be installed by a qualified technician familiar with fluid distribution systems. Shut off the fluid supply and depressurize the line before connecting or servicing the reel. Mounting hardware should be rated for the combined weight of the reel and filled hose. Consult applicable plumbing codes and the manufacturer documentation for NPT fitting torque guidance and mounting orientation options.

Technical Specifications

• Hose ID: 3/8 inch
• Hose OD: 11/16 inch
• Hose Length Capacity: 50 feet
• Drive Type: Spring rewind
• Construction Material: Electro-polished stainless steel
• Length: 22.25 inches
• Width: 12.75 inches
• Height: 23.75 inches
• Weight: 80 pounds
• UPC: 674255715820

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: ENML-N-350-SS
