Coxreels ENML-N-335-SS Ss Spring Driven Hose Reel 3/8in 35ft

Product Description

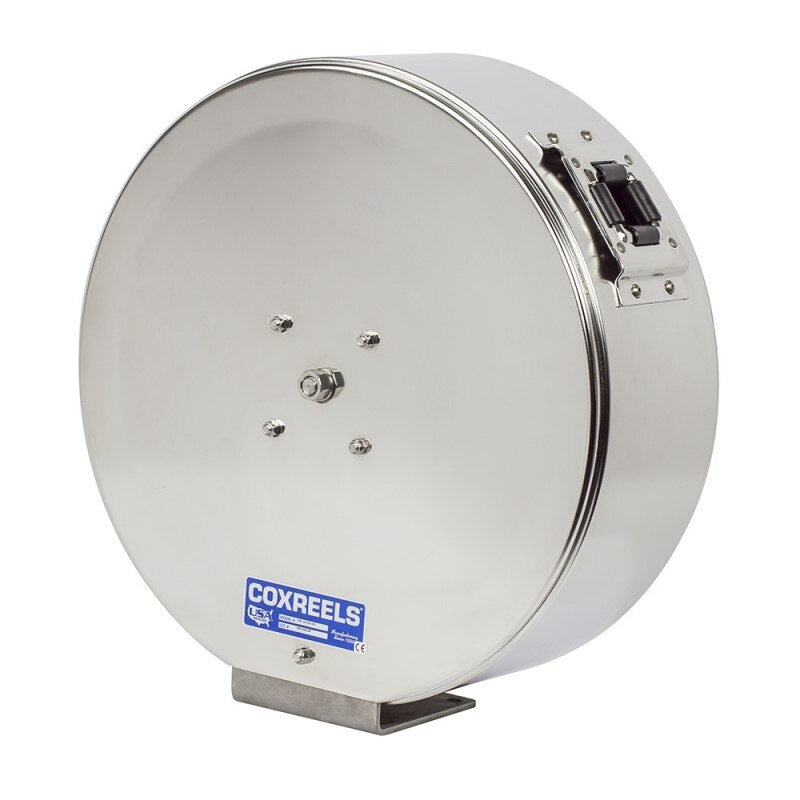

The COXREELS ENML-N-335-SS is an electro-polished stainless steel, spring-driven hose reel from the EN-SS series, designed for demanding environments where corrosion, contamination, and rust are ongoing concerns. It accepts 3/8-inch ID hose up to 35 feet in length and delivers a fully stainless steel fluid path from the swivel inlet through the reel drum. The spring-rewind cartridge motor is enclosed in an electro-polished stainless steel housing, keeping internals protected while remaining accessible for maintenance. Licensed contractors and service technicians in corrosion-intensive trades install this reel as a fixed or semi-permanent dispensing station.

This reel is suited for food and chemical processing facilities, marinas, wash-down stations, and any application where rust, contamination, or chemical exposure would compromise a standard steel or aluminum reel. The enclosed three-piece stainless steel casing and adjustable hose roller guide make it appropriate for both indoor and outdoor installations where cleanliness and hose protection are priorities. The single-pedestal base design provides stable mounting on floors or elevated platforms without requiring welded fabrication.

Key Features

• Electro-polished stainless steel construction throughout drum, casing, and fluid path for non-corrosive performance
• Machined stainless steel 90-degree full-flow NPT swivel inlet with external fluid path
• Removable cartridge-style spring motor — lubricated, enclosed, and serviceable without full reel disassembly
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and operator safety
• Solid one-piece stainless steel base and support post — no-weld single pedestal design for maximum stability
• Multi-position lock ratchet mechanism and lubricated precision bearings for controlled hose positioning

Compatibility

Designed as an OEM-style stainless steel spring-driven hose reel for 3/8-inch ID hose up to 35 feet, suitable for food processing, chemical processing, marina, and wash-down service applications requiring a non-corrosive fluid path.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid distribution systems and applicable facility plumbing codes. Shut off and depressurize the supply line completely before connecting or disconnecting the swivel inlet. Mount the base to a structurally sound surface using appropriate fasteners rated for the expected load. Verify NPT thread engagement and use thread sealant compatible with the fluid media being dispensed.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 11/16 inches
• Hose Length: 35 feet
• Drive Type: Spring-driven rewind
• Material: Electro-polished stainless steel
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 64 pounds
• UPC: 674255715790

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: ENML-N-335-SS
