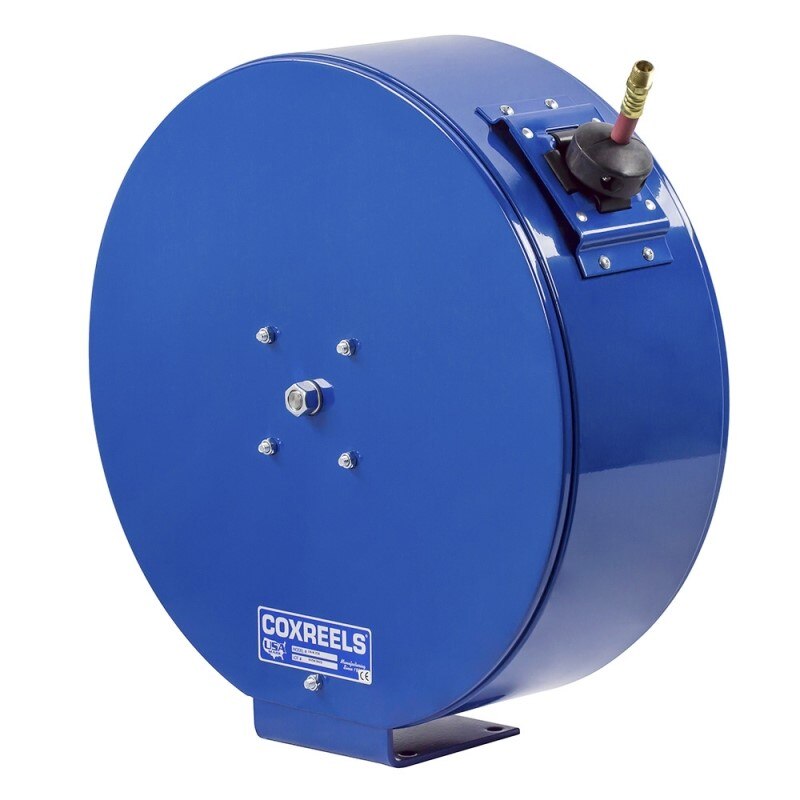

Coxreels ENM-N-450 Enclosed Spring Driven Hose Reel

Product Description

The COXREELS ENM-N-450 is an enclosed, spring-driven hose reel designed for professional service environments where hose protection and a clean installation appearance are both required. The reel features a heavy-gauge, powder-coated steel three-piece casing that shields the internal components, the hose, and the reel mechanism from contaminants, moisture, and physical damage. It accepts 1/2 inch inner diameter hose up to 50 feet in length. A machined brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mounting position. This unit is installed by HVAC technicians, plumbers, mechanics, and general service professionals in shops, fleet facilities, and field service vehicles.

The ENM-N-450 is suited for fixed wall or pedestal installations in commercial and industrial service environments where a tidy, professional appearance is required alongside reliable hose retraction. The enclosed casing design makes it well matched to wash bays, lube rooms, compressed air stations, and similar trade workspaces. The adjustable hose roller guide and solid rubber hose stop support consistent, repeatable hose management during daily use.

Key Features

• Heavy-gauge steel three-piece casing with powder-coat finish resists chipping, rust, and environmental exposure
• Machined solid brass 90-degree full-flow NPT swivel allows seal service and hose changes without dismounting the reel
• Cartridge-style spring motor is lubricated, enclosed, and fully removable for maintenance access
• CNC robotically spun and ribbed discs with rolled edges provide strength, hose protection, and operator safety
• Single-pedestal solid one-piece steel base with no-weld construction and dual axle support for maximum stability
• Multi-position lock ratchet mechanism with lubricated precision bearings and adjustable solid rubber hose stop

Compatibility

The ENM-N-450 is part of the COXREELS EN Series and is designed for use with 1/2 inch inner diameter, 13/16 inch outer diameter hose up to 50 feet in length. Consult COXREELS documentation to confirm hose material and working pressure compatibility for specific fluid or air applications.

Installation Notes

Installation is typically performed by a qualified service technician using standard hand tools. Mount the reel to a structurally sound wall, ceiling, or pedestal surface capable of supporting the unit weight plus the weight of the loaded hose. Depressurize and disconnect any fluid or air supply lines before servicing the swivel, motor cartridge, or hose connections. Follow applicable facility safety procedures and local codes when connecting to compressed air or fluid distribution systems.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 13/16 inch
• Maximum Hose Length: 50 feet
• Drive Type: Spring driven
• Casing Material: Steel
• Finish: CPC powder coat
• Length: 22.25 inches
• Width: 12.75 inches
• Height: 23.75 inches
• Weight: 82 pounds
• UPC: 674255715752

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: ENM-N-450
