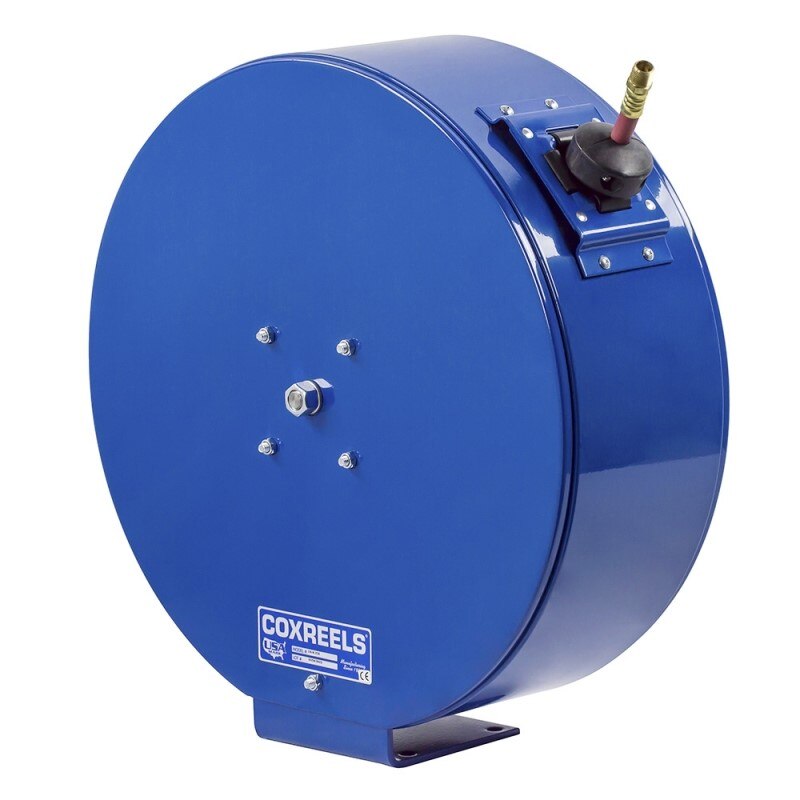

Coxreels ENM-N-435 Enclosed Spring Driven Hose Reel

Product Description

The COXREELS ENM-N-435 is an enclosed, spring driven hose reel built for trade professionals who need reliable hose management in demanding work environments. The reel features a heavy gauge powder coated steel three-piece casing that protects internal components from dirt, moisture, and physical damage. Designed for 1/2 inch ID hose up to 35 feet in length, it uses a machined solid brass 90-degree full-flow NPT swivel for leak-resistant performance and easy seal maintenance. A cartridge-style spring motor is lubricated and fully enclosed, allowing safe removal for routine service without disturbing the mounting. This unit weighs 76 pounds and measures 22.25 inches long by 12.75 inches wide by 23.75 inches tall.

The ENM-N-435 is suited for industrial, commercial, and professional service environments where a clean, organized appearance is required alongside functional durability. The enclosed casing keeps the hose and reel protected from workshop debris, weather exposure, and incidental contact. Typical applications include automotive service bays, manufacturing facilities, construction job sites, and any professional setting where hose retraction needs to be contained and protected. Licensed contractors and service technicians are the primary installers for this product type.

Key Features

• Enclosed three-piece heavy gauge steel casing with CPC powder coat finish for corrosion and chip resistance
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• Enclosed, lubricated cartridge-style spring motor is removable for maintenance without full reel disassembly
• CNC robotically spun and ribbed steel discs with rolled edges for added strength and hose protection
• Solid one-piece steel base with single pedestal design and dual axle support for maximum stability, no weld construction
• Includes adjustable solid rubber hose stop, multi-position lock ratchet mechanism, adjustable hose roller guide, and lubricated precision bearings

Compatibility

Designed as an OEM-style enclosed spring driven hose reel for 1/2 inch ID hose with 13/16 inch OD, accommodating hose lengths up to 35 feet.

Installation Notes

Installation should be performed by a qualified technician familiar with hose reel mounting and plumbing connections. Shut off the supply line and relieve all pressure in the hose before beginning installation or maintenance. The three-piece casing is designed for straightforward assembly and disassembly, allowing access to internal components without full removal from the mount. Follow applicable facility safety and plumbing codes when making NPT connections.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 13/16 inch
• Hose Length Capacity: 35 feet
• Drive Type: Spring driven
• Casing Material: Steel
• Finish: CPC powder coat
• Length: 22.25 inches
• Width: 12.75 inches
• Height: 23.75 inches
• Weight: 76 pounds
• UPC: 674255715745

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: ENM-N-435
