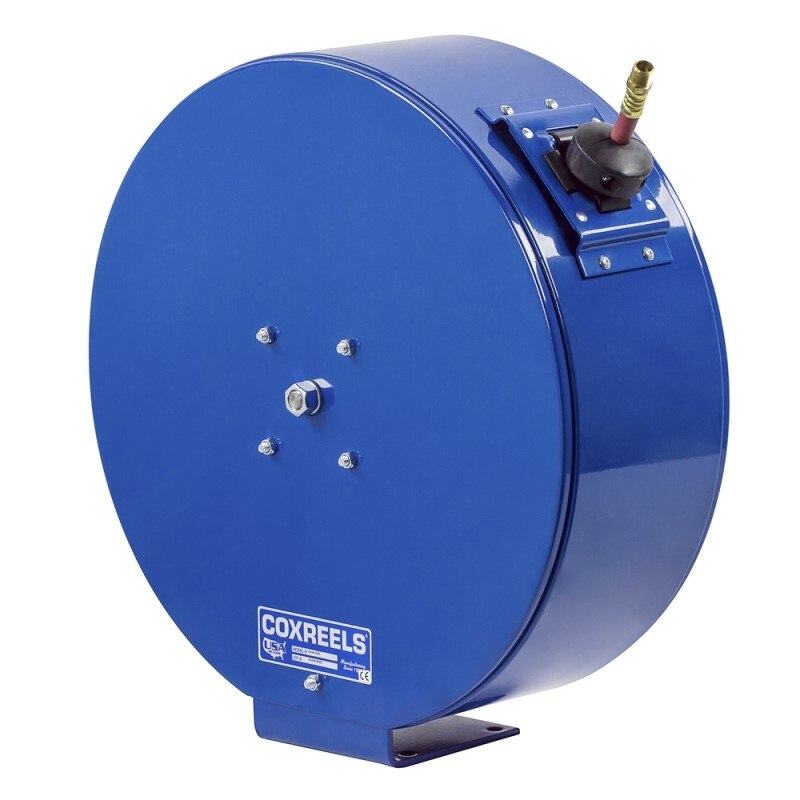

Coxreels ENM-N-425 Enclosed Spring Driven Hose Reel

Product Description

The COXREELS ENM-N-425 is an enclosed, spring-driven hose reel built for trade and industrial environments where hose protection and a clean appearance are both priorities. The reel is housed in a heavy-gauge, powder-coated steel three-piece casing that shields internal components from dust, moisture, and physical damage. It accommodates hose with a 1/2 inch inner diameter and 13/16 inch outer diameter up to 25 feet in length. The spring-driven retraction mechanism stores hose automatically after each use. Licensed contractors, shop technicians, and facility maintenance crews are the typical installers of this unit.

The ENM-N-425 fits applications where a tidy, enclosed reel is preferred over an open-drum design. Common install locations include service bays, mechanical rooms, wash bays, and industrial work cells. The enclosed casing keeps the reel protected in environments with airborne debris, grease, or washdown exposure. The adjustable hose roller guide and multi-position lock ratchet mechanism make it practical for fixed-position dispensing where the hose needs to stop and hold at a set length without retracting.

Key Features

• Heavy-gauge steel three-piece casing with powder-coat finish resists chips, rust, and environmental exposure
• Machined solid-brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• Cartridge-style spring motor is lubricated, enclosed, and fully removable for field maintenance
• CNC robotically spun and ribbed steel discs with rolled edges provide structural strength and protect hose edges
• Single-pedestal steel base with solid one-piece construction and dual axle support for maximum stability
• Multi-position lock ratchet mechanism, adjustable solid rubber hose stop, and lubricated precision bearings included

Compatibility

Designed for use with hose measuring 1/2 inch inner diameter and 13/16 inch outer diameter, up to 25 feet in length, with standard NPT fittings. Consult the COXREELS EN Series product documentation to confirm hose and fitting compatibility for specific fluid media or pressure requirements.

Installation Notes

Installation is typically performed by a qualified mechanic or maintenance technician. Mount the reel securely to a wall, ceiling, or floor pedestal capable of supporting the unit weight before connecting the supply line. Shut off and depressurize the supply line completely before making any hose or swivel connections. The three-piece casing disassembles for access during installation and servicing without requiring full removal of the reel from its mount.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 13/16 inch
• Hose Length Capacity: 25 feet
• Reel Drive Type: Spring driven
• Casing Material: Steel
• Swivel Material: Brass
• Finish: CPC powder coat
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 61 pounds
• UPC: 674255715738

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: ENM-N-425
