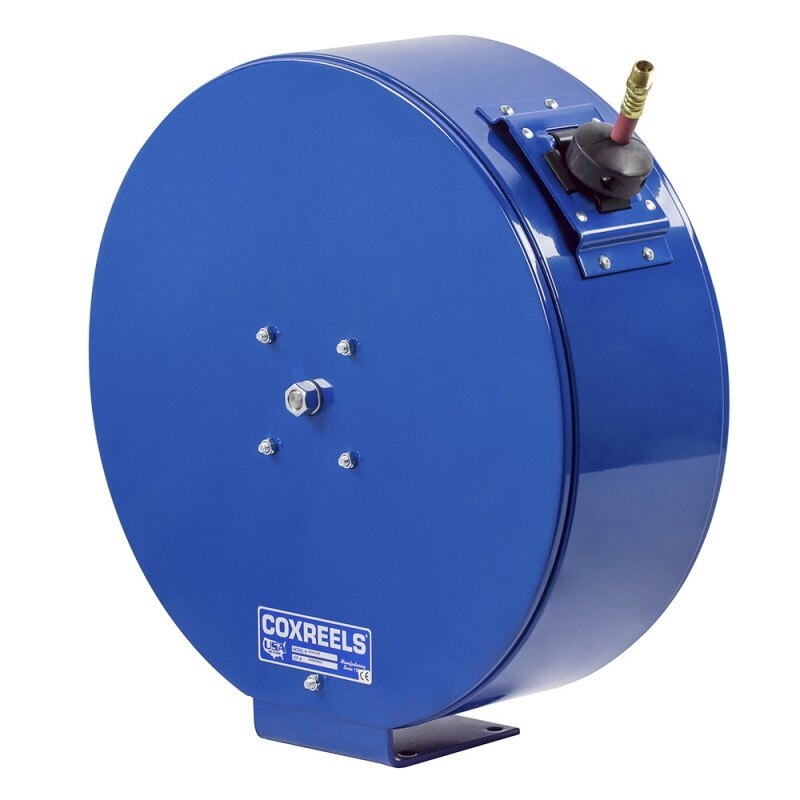

Coxreels ENM-N-350 Enclosed Spring Driven Hose Reel

Product Description

The COXREELS ENM-N-350 is an enclosed, spring-driven hose reel built for trade environments where durability and a clean installation matter. Part of the COXREELS EN Series, the reel is housed in a heavy-gauge, three-piece powder-coated steel casing that protects internal components from dirt, moisture, and physical damage. The 3/8 inch ID hose capacity and 50-foot hose length make it a practical choice for compressed air, fluid dispensing, and similar service lines. At 80 pounds, this is a substantial, fixed-mount unit intended for professional installation in service bays, shop floors, and similar work environments.

The ENM-N-350 is designed for use in commercial and industrial settings where an enclosed reel is required for both equipment protection and workplace appearance. The spring-driven retraction mechanism keeps hose neatly stored when not in use. The three-piece casing is designed for straightforward assembly and disassembly, which keeps maintenance time low. Typical installations include automotive service bays, fleet maintenance facilities, and industrial production floors where hose management and a professional appearance are both priorities.

Key Features

• Enclosed powder-coated steel casing protects the reel, hose, and internal components from the elements and physical damage
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Removable cartridge-style spring motor is lubricated and enclosed for safe, convenient field maintenance
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges provide strength, durability, and operator safety
• Solid one-piece steel base and support post with no-weld single pedestal design for maximum stability
• Includes multi-position lock ratchet mechanism, adjustable solid rubber hose stop, adjustable hose roller guide, and lubricated precision bearings

Compatibility

Designed as an OEM-style enclosed spring-driven hose reel suitable for 3/8 inch ID hose applications in commercial and industrial service installations.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed air or fluid distribution systems. Shut off and depressurize the supply line before mounting or connecting the reel. The single-pedestal steel base is designed for fixed surface mounting; verify that the mounting surface can support the unit weight of 80 pounds plus hose and fluid load. Follow applicable facility codes and manufacturer torque guidance for all fittings and mounting hardware.

Technical Specifications

• Hose ID: 3/8 inch
• Hose OD: 11/16 inch
• Hose Length: 50 feet
• Drive Type: Spring driven
• Casing Material: Steel
• Finish: CPC powder coat
• Weight: 80 pounds
• Length: 22.25 inches
• Width: 12.75 inches
• Height: 23.75 inches
• UPC: 674255715721

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: ENM-N-350
