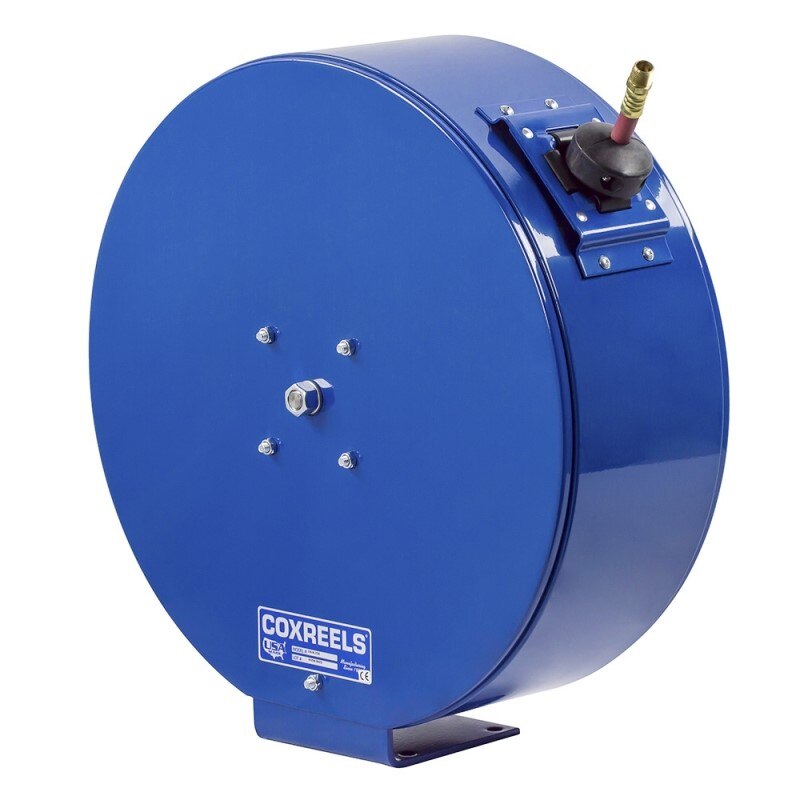

Coxreels ENM-N-335 Enclosed Spring Hose Reel 3/8 in 35 Ft

Product Description

The COXREELS ENM-N-335 is an enclosed, spring-driven hose reel built for professional trade environments that require both functionality and a clean, organized appearance. The reel features a heavy-gauge powder-coated steel three-piece casing that shields internal components from environmental exposure, extending the service life of the reel, hose, and hardware. Designed for 3/8-inch ID hose with an 11/16-inch OD and a 35-foot hose capacity, this unit is suited for service bays, shops, and industrial facilities where hose management and appearance matter. Licensed contractors and shop technicians are the typical installers.

The ENM-N-335 is well suited for light-to-medium duty compressed air, water, or fluid delivery applications in residential service shops, commercial garages, and industrial maintenance environments. The enclosed casing design makes it a practical choice for customer-facing work areas where a tidy appearance is required alongside reliable hose retraction. The adjustable hose roller guide accommodates a range of routing configurations during installation.

Key Features

• Enclosed three-piece heavy-gauge steel casing with powder-coat finish resists chipping, rust, and environmental exposure
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Cartridge-style spring motor is lubricated, enclosed, and removable for safe field maintenance
• CNC robotically spun and ribbed discs with rolled edges provide structural strength and hose protection
• Solid one-piece steel base and support post with no-weld single pedestal design for maximum stability
• Multi-position lock ratchet mechanism, adjustable solid rubber hose stop, and lubricated precision bearings included

Compatibility

Designed as an OEM-style enclosed spring-driven hose reel replacement or new installation for 3/8-inch ID hose assemblies in professional shop and industrial service environments.

Installation Notes

Installation is typically performed by a qualified mechanic, millwright, or facilities technician. Shut off and depressurize the supply line before connecting or disconnecting hose fittings. The three-piece casing disassembles without special tooling, simplifying wall or ceiling mounting and routine maintenance access. Follow applicable local codes and the manufacturer's mounting load ratings when selecting the mounting surface and hardware.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 11/16 inches
• Hose Capacity: 35 feet
• Casing Material: Steel
• Finish: CPC Powder Coat
• Swivel Material: Solid Brass
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 64 pounds
• UPC: 674255715714

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: ENM-N-335
