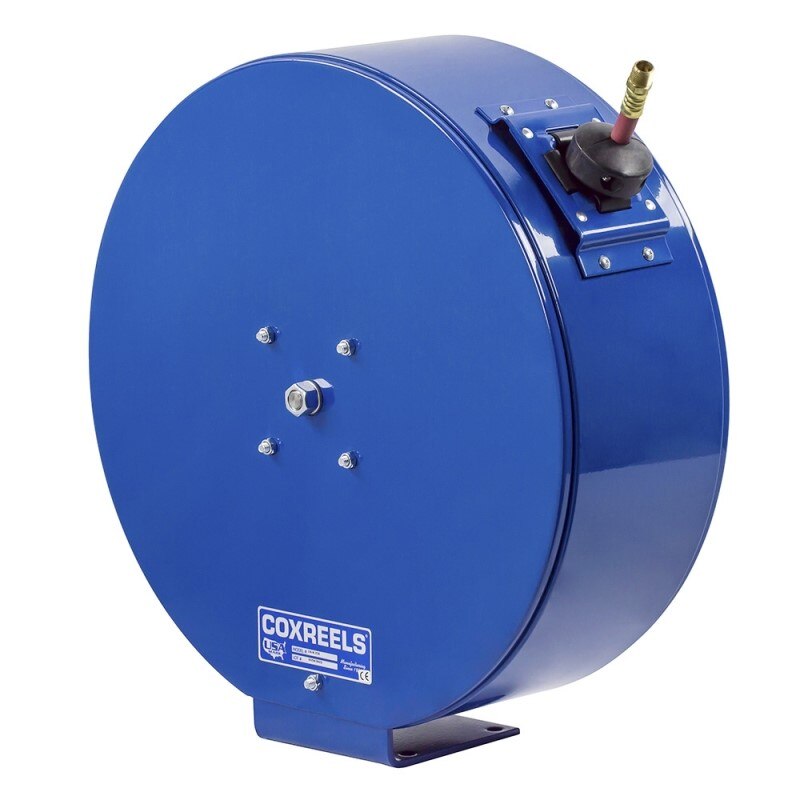

Coxreels ENM-N-325 Enclosed Spring Driven Hose Reel

Product Description

The COXREELS ENM-N-325 is an enclosed, spring-driven hose reel from the EN Series, built for trade professionals who need reliable hose management in demanding work environments. The reel is housed in a heavy-gauge powder-coated steel 3-piece casing that protects the internal components, the hose, and the reel mechanism from dirt, moisture, and environmental wear. It accepts 3/8 inch ID, 11/16 inch OD hose up to 25 feet in length. At 61 pounds, this is a substantial, fixed-mount unit suited for shop, garage, fleet service, and industrial applications where a clean, professional appearance is required alongside dependable performance.

The ENM-N-325 is designed for installation in residential shops, commercial service bays, fleet maintenance facilities, and industrial work areas where hose retraction and storage must be organized and protected. The enclosed casing keeps the reel and hose free from debris and reduces wear caused by exposure. The spring-driven retraction mechanism eliminates manual coiling. This unit is appropriate for compressed air, water, and compatible fluid delivery applications where a 3/8 inch hose is standard. Licensed technicians and experienced service professionals typically handle permanent mounting and plumbing connections.

Key Features

• Heavy-gauge steel 3-piece casing with CPC powder coat finish for corrosion and chip resistance
• Spring-driven retraction with multi-position lock ratchet mechanism for controlled hose deployment
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance without removing the reel from its mount
• Lubricated enclosed cartridge-style motor is removable for straightforward maintenance
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Adjustable solid rubber hose stop and adjustable hose roller guide included

Compatibility

Designed for use with 3/8 inch ID, 11/16 inch OD hose up to 25 feet in length. Suitable as an enclosed spring-driven reel for compressed air, water, and compatible fluid service lines in commercial and industrial installations.

Installation Notes

Installation should be performed by a qualified technician familiar with hose reel mounting and fluid or pneumatic system connections. Shut off and depressurize the supply line completely before making or breaking any connections. The single-pedestal steel base is designed for fixed surface mounting; ensure the mounting surface is rated for the combined weight of the reel and hose under load. Follow applicable local codes and the manufacturer instructions for swivel fitting torque and thread sealant use.

Technical Specifications

• Hose ID: 3/8 inch
• Hose OD: 11/16 inch
• Hose Length: 25 feet
• Drive Type: Spring driven
• Casing Material: Steel
• Weight: 61 pounds
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• UOM: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: ENM-N-325
