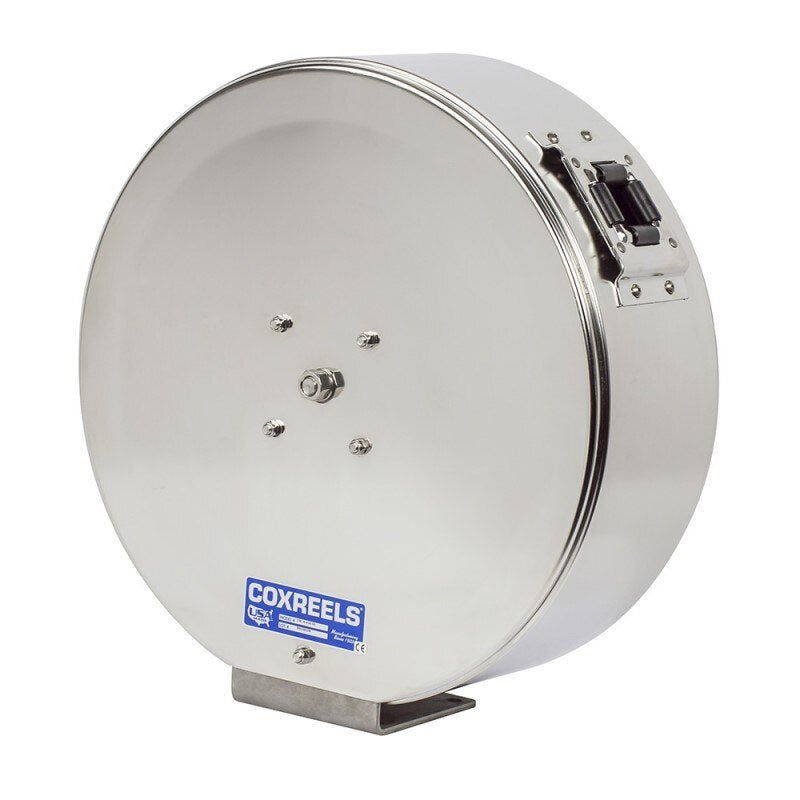

Coxreels ENL-N-450-SS Stainless Steel Hose Reel 50 Ft

Product Description

The COXREELS ENL-N-450-SS is a spring-driven, enclosed stainless steel hose reel designed for demanding service environments where corrosion, contamination, and moisture are constant concerns. Built on the EN-SS series platform, it features an electro-polished stainless steel drum, a stainless steel fluid path, and a cartridge-style spring motor that is fully enclosed and removable for field maintenance. The reel accepts hose with a 1/2 inch inner diameter and accommodates 50 feet of hose. It is installed and serviced by licensed plumbers, industrial mechanics, and fluid system technicians.

This reel is suited for commercial and industrial applications where standard carbon steel or aluminum reels are not appropriate. Typical deployment environments include food and beverage processing facilities, chemical handling operations, marinas, car washes, and any site where rust or chemical contamination of the fluid path is a disqualifying condition. The enclosed three-piece stainless steel casing protects the hose from UV, abrasion, and incidental contact while keeping the installation clean and professional in appearance.

Key Features

• Electro-polished stainless steel construction throughout drum, casing, base, and fluid path for non-corrosive performance
• Cartridge-style spring motor is lubricated, enclosed, and removable without special tooling for convenient maintenance
• Machined stainless steel 90-degree full-flow NPT swivel inlet provides non-corrosive external fluid path connection
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for structural strength and hose protection
• Single-pedestal stainless steel base and support post, no-weld construction, for maximum stability
• Multi-position lock ratchet mechanism with lubricated precision bearings for controlled hose extension and retraction
• Adjustable hose roller guide integrated into enclosed three-piece stainless steel casing

Compatibility

Designed for use with 1/2 inch inner diameter, 3/4 inch outer diameter hose up to 50 feet in length. Connects via standard NPT swivel inlet fitting. Verify hose material compatibility with the fluid being dispensed prior to installation.

Installation Notes

Installation should be performed by a qualified plumber or industrial piping technician familiar with fluid distribution systems. Shut off supply pressure and depressurize the line completely before mounting or making any hose connections. Secure the pedestal base to a structurally adequate surface using fasteners appropriate for the substrate. Consult applicable plumbing codes and facility safety requirements when routing hose in food processing or chemical environments.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 3/4 inch
• Hose Capacity: 50 feet
• Drive Type: Spring-driven
• Construction Material: Electro-polished stainless steel
• Inlet Connection: 90-degree full-flow NPT swivel
• Length: 22.25 inches
• Width: 12.75 inches
• Height: 23.75 inches
• Weight: 61 pounds
• UPC: 674255715691

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: ENL-N-450-SS
