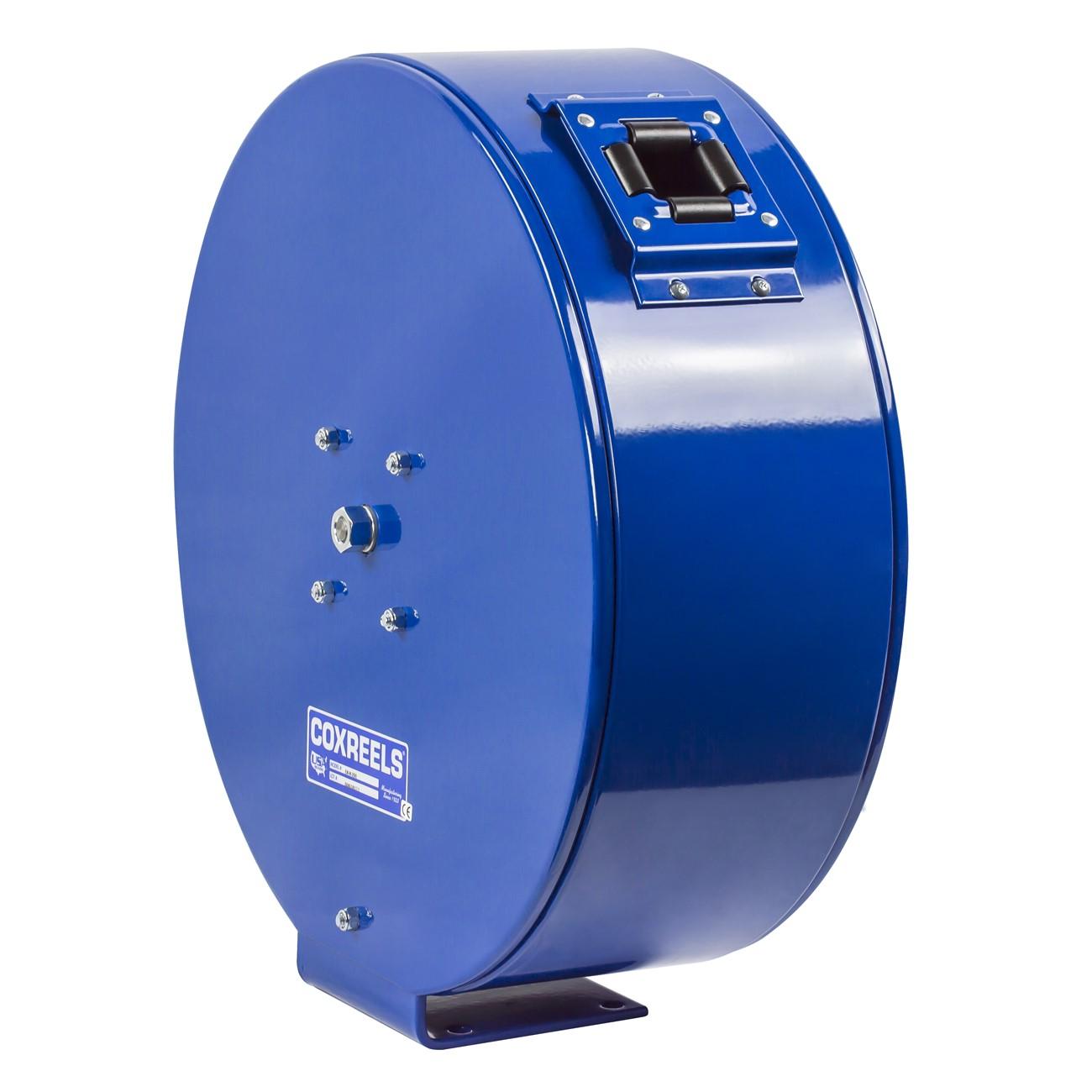

Coxreels ENL-N-450 Enclosed Spring Driven Hose Reel

Product Description

The COXREELS ENL-N-450 is an enclosed, spring-driven hose reel built for professional trade environments where reel protection and a clean installation appearance are both required. The reel is housed in a heavy-gauge, three-piece powder-coated steel casing that shields internal components from dust, moisture, and job-site debris. It accepts 1/2 inch ID hose and is sized for up to 50 feet of hose. The spring-driven retraction mechanism keeps hose coiled and ready without manual winding. Licensed mechanical and plumbing contractors, as well as industrial maintenance techs, are the primary installers of this reel in both shop and field service applications.

The ENL-N-450 is suited for use in workshops, service bays, equipment rooms, and commercial facilities where a tidy, protected hose management solution is needed. The enclosed casing protects the reel and hose from environmental exposure, making it appropriate for demanding environments. The three-piece casing design allows the unit to be disassembled for straightforward installation and routine maintenance without specialized tooling.

Key Features

• Heavy-gauge steel three-piece powder-coated casing shields the reel, hose, and internal components from the elements
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose changes without removing the reel from its mount
• Cartridge-style spring motor is lubricated, enclosed, and fully removable for safe field maintenance
• CNC robotically spun and ribbed discs with rolled edges provide strength, durability, and hose protection
• Single-pedestal steel base with one-piece support post and no-weld construction for maximum stability
• Multi-position lock ratchet mechanism, precision lubricated bearings, and adjustable hose roller guide included

Compatibility

Designed as an OEM-style enclosed spring-driven hose reel for professional shop, service bay, and commercial facility installations requiring 1/2 inch ID hose management.

Installation Notes

Installation is typically performed by licensed mechanical contractors or qualified maintenance personnel. Shut off the fluid supply and relieve all line pressure before connecting or disconnecting hose or fittings. The single-pedestal base should be secured to a structurally adequate surface using fasteners appropriate for the substrate. Verify that the hose material and fittings used are rated for the intended fluid, pressure, and temperature before placing the reel in service.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 3/4 inch
• Hose Capacity: 50 feet
• Drive Type: Spring driven
• Casing Material: Steel with powder coat finish
• Length: 22.25 inches
• Width: 12.75 inches
• Height: 23.75 inches
• Weight: 61 pounds
• UPC: 674255715677

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: ENL-N-450
