Coxreels ENL-N-435 Enclosed Spring Driven Hose Reel

Product Description

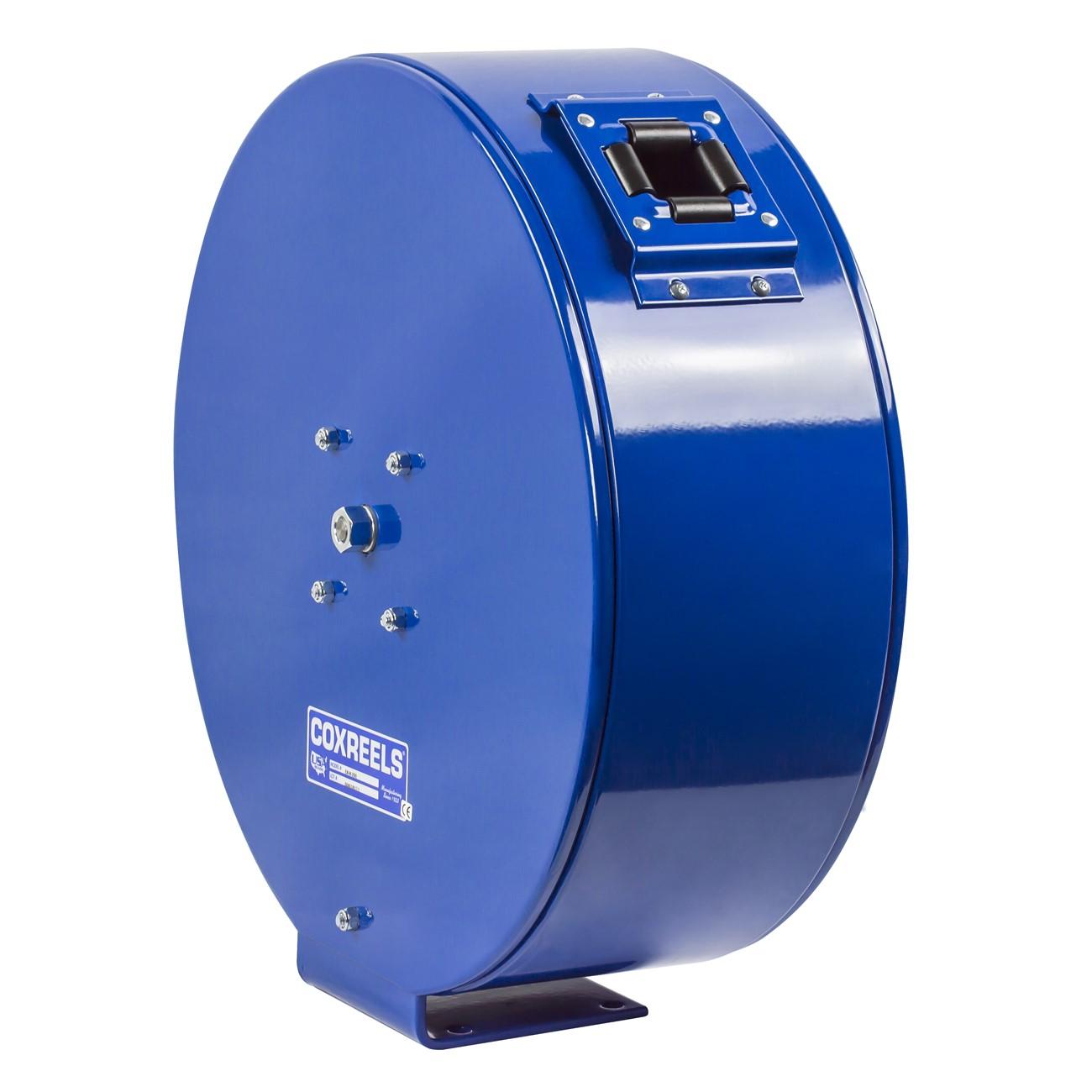

The COXREELS ENL-N-435 is an enclosed, spring-driven hose reel designed for trade and industrial environments where hose protection and a clean installation appearance are both required. The reel features a heavy-gauge, powder-coated steel three-piece casing that shields internal components from contaminants and physical damage, extending service life. It accommodates hose with a 1/2 inch inner diameter and 3/4 inch outer diameter, with a working length of 35 feet. A machined solid-brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount. Licensed trades and service technicians in HVAC, plumbing, and general plant maintenance commonly install this reel in shops, service bays, and mechanical rooms.

The ENL-N-435 is suited for applications where a neat, enclosed reel is required to meet facility appearance standards or protect the hose from shop debris, UV exposure, and incidental damage. The enclosed casing design makes it appropriate for both light industrial and commercial service environments. The spring-driven retraction mechanism keeps hose off the floor automatically, reducing trip hazards and wear. The three-piece casing disassembles easily for periodic inspection and internal maintenance without special tooling.

Key Features

• Powder-coated steel three-piece enclosure shields reel, hose, and internal components from contaminants and physical damage
• Machined solid-brass 90-degree full-flow NPT swivel supports seal maintenance and hose swaps without dismounting the reel
• Cartridge-style spring motor is lubricated, enclosed, and removable for straightforward field maintenance
• CNC robotically spun and ribbed discs with rolled edges provide structural strength and protect hose edges during retraction
• Single-pedestal steel base with one-piece no-weld support post delivers stable mounting in fixed installations
• Multi-position lock ratchet mechanism, chip-resistant CPC powder coat finish, and lubricated precision bearings included

Compatibility

Designed as an OEM-style enclosed spring-driven hose reel compatible with 1/2 inch ID, 3/4 inch OD hose up to 35 feet in length, typical for shop air, water, and similar fluid transfer applications.

Installation Notes

Installation is typically performed by a licensed plumber, pipefitter, or qualified maintenance technician. Shut off the fluid supply and depressurize the line before connecting or disconnecting the swivel inlet. Mount the reel to a structurally sound wall, ceiling, or pedestal surface capable of supporting the reel weight plus the loaded hose. Follow applicable plumbing or mechanical codes for the jurisdiction where the reel is installed.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 3/4 inch
• Hose Length: 35 feet
• Drive Type: Spring driven
• Casing Material: Steel
• Finish: CPC powder coat
• Swivel Material: Solid brass
• Length: 22.25 inches
• Width: 12.75 inches
• Height: 23.75 inches
• Weight: 58 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: ENL-N-435
