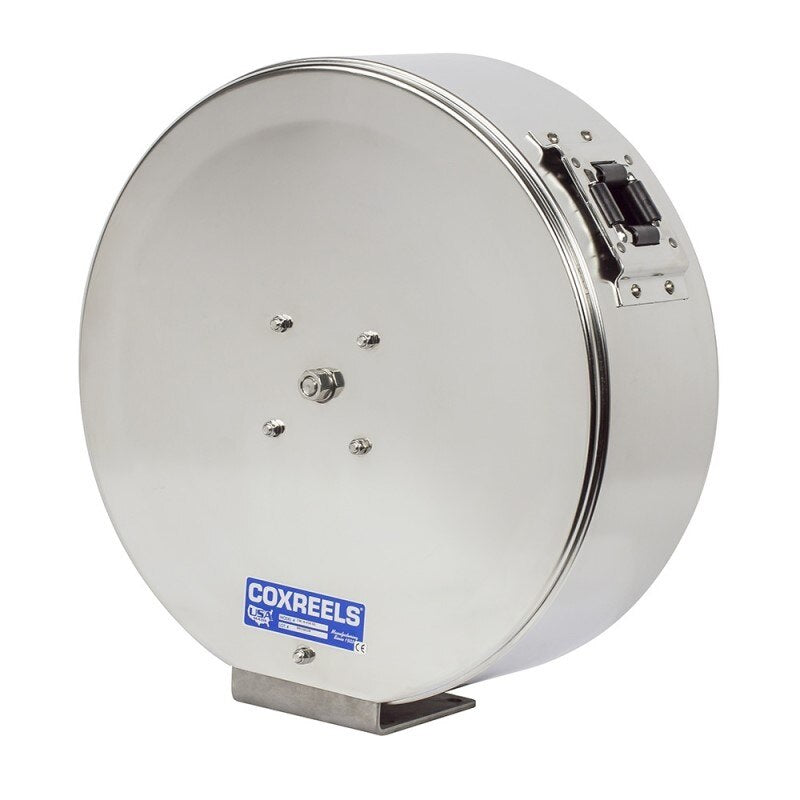

Coxreels ENL-N-425-SS Stainless Steel Hose Reel 25 Ft

Product Description

The COXREELS ENL-N-425-SS is a spring-driven, enclosed stainless steel hose reel from the EN-SS Series, built for applications where corrosion resistance and contamination control are critical. The reel features an electro-polished stainless steel construction throughout, including a stainless steel fluid path, to maintain clean, non-reactive performance. Designed for a 1/2-inch ID, 3/4-inch OD hose up to 25 feet in length, it suits demanding environments in food processing, chemical handling, marina service, and similar settings where rust, corrosion, and product contamination are ongoing concerns. The unit weighs 63 pounds and measures 20.5 inches long, 10.5 inches wide, and 22 inches tall.

This hose reel is well-suited for stationary or permanently mounted service points in commercial and industrial facilities. Typical applications include food-grade washdown stations, chemical dispensing lines, marine docking areas, and any site where ambient moisture, salt air, or aggressive fluids would degrade a standard steel or aluminum reel. The enclosed casing with an adjustable hose roller guide keeps the hose protected between uses, making it appropriate for both indoor and outdoor installation scenarios where appearance and cleanliness matter.

Key Features

• Electro-polished stainless steel construction with full stainless steel fluid path for corrosion-free, contamination-resistant performance
• Machined 90-degree full-flow NPT stainless steel swivel inlet for non-corrosive external fluid connection
• Cartridge-style spring motor is electro-polished, lubricated, and fully enclosed for easy removal and safe maintenance
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and hose protection
• Solid one-piece stainless steel base and support post — no welds — for maximum structural stability
• Multi-position lock ratchet mechanism and lubricated precision bearings for controlled hose positioning

Compatibility

Designed for use with 1/2-inch ID, 3/4-inch OD hose up to 25 feet in length. Part of the COXREELS EN-SS Series of spring-driven enclosed stainless steel hose reels.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid handling systems and appropriate mounting hardware for the reel weight and application. Shut off all fluid supply and depressurize the line before connecting or disconnecting hose fittings. Secure the base to a stable mounting surface capable of supporting the reel weight plus the loaded hose. Verify that the NPT swivel inlet thread size is compatible with the supply line fitting before final assembly.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 3/4 inch
• Hose Length: 25 feet
• Drive Type: Spring driven
• Construction Material: Electro-polished stainless steel
• Inlet Type: 90-degree full-flow NPT swivel
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 63 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: ENL-N-425-SS
