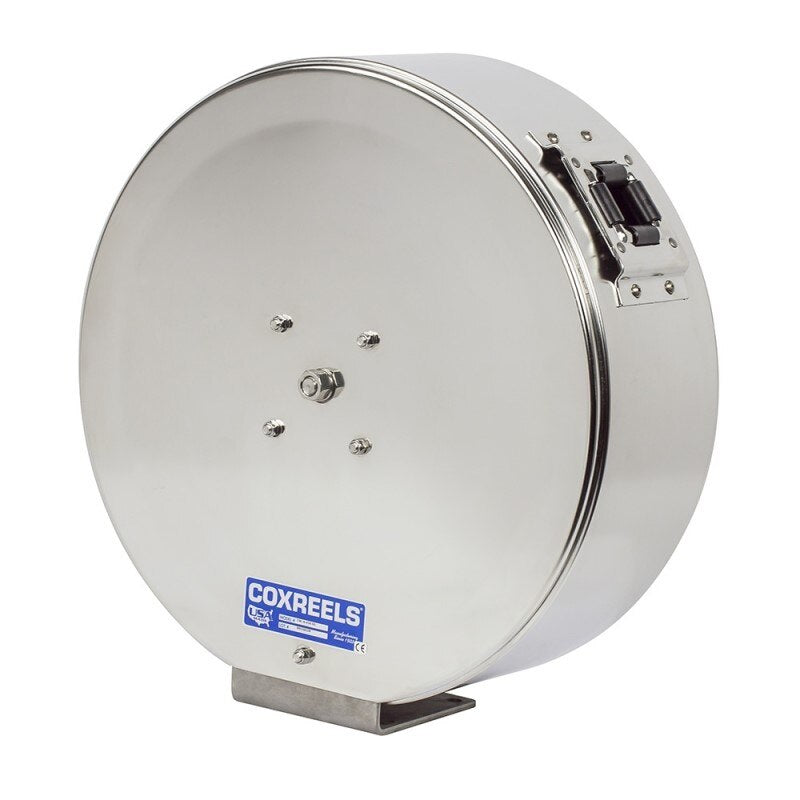

Coxreels ENL-N-350-SS Stainless Steel Spring Hose Reel

Product Description

The COXREELS ENL-N-350-SS is a spring-driven, enclosed stainless steel hose reel designed for applications where corrosion resistance and contamination control are critical. Built from electro-polished stainless steel throughout, including the fluid path, this reel delivers clean, non-corrosive performance in demanding environments. It accommodates 3/8 inch ID, 5/8 inch OD hose up to 50 feet in length. The cartridge-style motor is enclosed and lubricated, and the heavy-duty CNC robotically spun discs feature rolled edges for structural strength and hose protection. Licensed tradespeople and industrial service technicians are the primary installers.

This reel is suited for food and chemical processing facilities, marinas, car washes, and any environment where rust, corrosion, and contamination are ongoing concerns. The enclosed three-piece stainless steel casing with an adjustable hose roller guide makes it well-matched to fixed service stations, equipment bays, and wash-down stations where a durable, self-retracting hose management solution is required. Its single-pedestal, solid one-piece stainless steel base and support post design provides stable, permanent mounting in these settings.

Key Features

• Electro-polished stainless steel construction throughout for corrosion and contamination resistance
• Stainless steel 90-degree full-flow NPT swivel inlet machined from solid stock for a non-corrosive external fluid path
• Enclosed, lubricated cartridge-style motor is easily removable for maintenance without special tooling
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Solid one-piece stainless steel base and support post, no-weld construction, for maximum stability
• Multi-position lock ratchet mechanism with lubricated precision bearings for reliable hose positioning

Compatibility

Designed for use with 3/8 inch ID, 5/8 inch OD hose up to 50 feet in length. Part of the COXREELS EN-SS Series of enclosed stainless steel spring-driven hose reels intended for corrosive, sanitary, and chemical-exposure environments.

Installation Notes

Installation is typically performed by licensed plumbers, mechanical contractors, or qualified industrial maintenance technicians. Shut off the fluid supply and depressurize the line completely before mounting or connecting the reel. Follow applicable plumbing codes and the manufacturer mounting instructions for fastener selection and base anchoring. Verify swivel inlet thread type and size match the existing supply line before final connection.

Technical Specifications

• Hose ID: 3/8 inch
• Hose OD: 5/8 inch
• Hose Length: 50 feet
• Drive Type: Spring driven
Casing: Stainless steel 3-piece enclosed with adjustable hose roller guide
• Base and Post: Solid one-piece stainless steel, no-weld construction
• Length: 22.25 inches
• Width: 12.75 inches
• Height: 23.75 inches
• Weight: 58 pounds
• UPC: 674255715615

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: ENL-N-350-SS
