Coxreels ENL-N-335-SS Ss Spring Rewind Hose Reel 3/8 in 35 Ft

Product Description

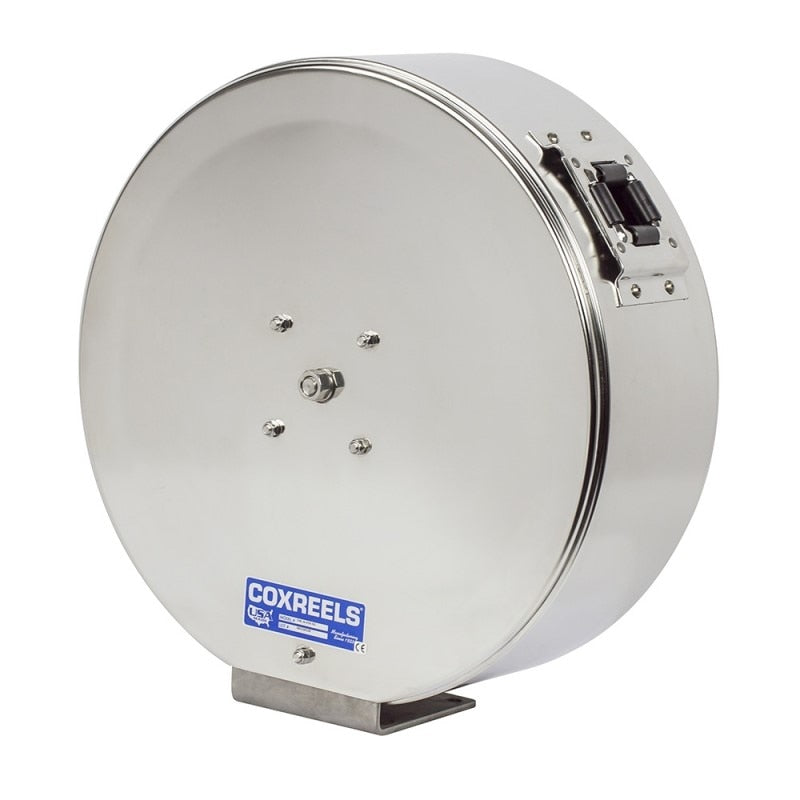

The COXREELS ENL-N-335-SS is an electro-polished stainless steel spring-driven hose reel from the EN-SS Series, designed for demanding environments where corrosion, contamination, and rust are ongoing concerns. The reel accepts hose with a 3/8-inch ID and 5/8-inch OD and accommodates up to 35 feet of hose. The fully enclosed stainless steel housing protects the hose from environmental exposure while the cartridge-style spring motor rewinds automatically. This reel is installed by plumbing, maintenance, or industrial service technicians in food processing facilities, chemical handling operations, marinas, and other corrosive or sanitary environments.

The ENL-N-335-SS is suited for applications requiring non-corrosive, contamination-free fluid delivery. Typical installations include food and beverage processing lines, chemical dispensing stations, marine dock service bays, and washdown systems where stainless steel fluid paths are required. The enclosed reel design keeps the hose and internal components protected from splatter, wash cycles, and airborne contaminants common in these environments. Its spring rewind function allows single-handed operation, reducing fatigue during repetitive use.

Key Features

• Electro-polished stainless steel construction throughout, including fluid path, discs, base, and 3-piece casing
• Cartridge-style spring motor is lubricated and enclosed for easy removal and safe field maintenance
• 90-degree full-flow NPT swivel inlet machined from stainless steel for a non-corrosive external fluid path
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and operator safety
• Multi-position lock ratchet mechanism with lubricated precision bearings for controlled hose positioning
• Solid one-piece stainless steel base and support post, no-weld single pedestal design for maximum stability
• Adjustable hose roller guide included within the enclosed 3-piece stainless steel casing

Compatibility

Designed for use with 3/8-inch ID, 5/8-inch OD hose up to 35 feet in length. Suitable for food processing, chemical processing, marina, and industrial washdown applications requiring stainless steel construction and non-corrosive fluid paths.

Installation Notes

Installation should be performed by a qualified plumbing or industrial maintenance technician. Shut off all fluid supply and relieve line pressure before mounting or connecting the reel. Follow all applicable facility safety codes and manufacturer torque guidance for NPT fittings. The spring motor is enclosed and factory-lubricated; do not disassemble the cartridge motor in the field beyond the designed removable cartridge interface.

Technical Specifications

• Hose ID: 3/8 inch
• Hose OD: 5/8 inch
• Hose Capacity: 35 feet
• Drive Type: Spring rewind
• Material: Electro-polished stainless steel
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 46 pounds
• Inlet Connection: 90-degree full-flow NPT swivel
• UPC: 674255715585

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: ENL-N-335-SS
