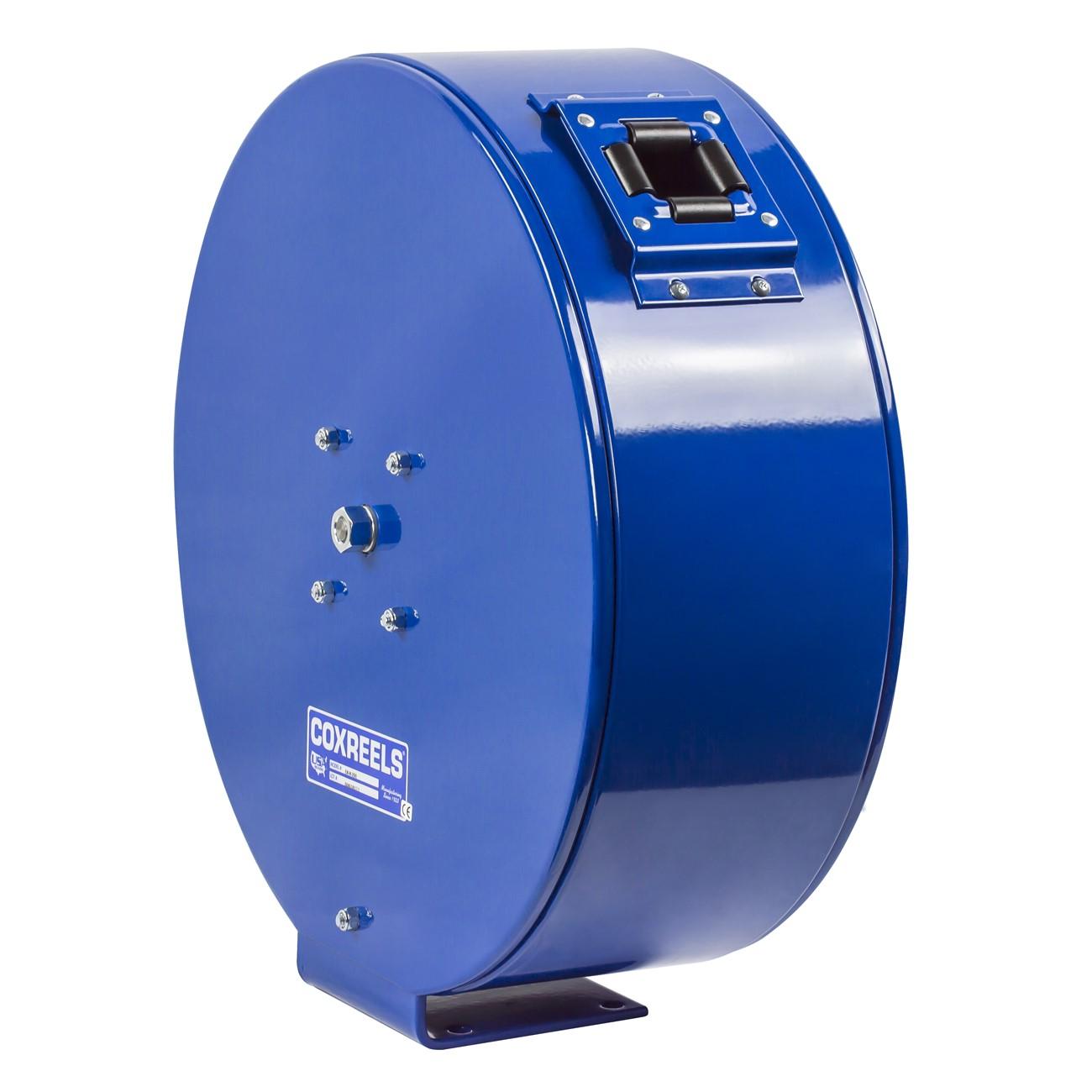

Coxreels ENL-N-160 Enclosed Spring Driven Hose Reel

Product Description

The COXREELS ENL-N-160 is an enclosed, spring-driven hose reel built for trade and industrial environments where hose protection and a clean appearance matter. The reel features a heavy-gauge powder-coated steel three-piece casing that shields the internal components, hose, and reel mechanism from dirt, moisture, and physical damage. Designed for 1/4 inch ID hose up to 60 feet in length, it uses a cartridge-style spring motor and a machined brass 90-degree full-flow NPT swivel. The unit weighs 60 pounds and measures 22.25 inches long by 12.75 inches wide by 23.75 inches tall. Licensed HVAC, plumbing, and general mechanical contractors install this reel in service bays, shops, and mechanical rooms.

The ENL-N-160 suits commercial and industrial service environments where a tidy, professional appearance is required alongside reliable hose retraction. The enclosed casing makes it appropriate for wash-down areas, automotive shops, manufacturing floors, and HVAC or plumbing service facilities. The single-pedestal steel base and support post provide a stable mounting footprint on floors or elevated platforms. The adjustable hose roller guide protects the hose at the entry point during repeated retraction cycles, reducing wear over the service life of the assembly.

Key Features

• Heavy-gauge steel three-piece powder-coated casing shields internal components and extends reel and hose service life
• Cartridge-style spring motor is fully enclosed and removable for maintenance without dismounting the reel
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• CNC robotically spun and ribbed steel discs with rolled edges provide structural strength and protect the hose during winding
• Multi-position lock ratchet mechanism holds the hose at any extended length
• Chip-resistant, rust-inhibiting CPC powder coat finish for long-term durability in demanding environments

Compatibility

Designed for use with 1/4 inch ID hose up to 60 feet in length. Consult COXREELS EN Series documentation for approved hose types and pressure ratings specific to the intended fluid or air application.

Installation Notes

Installation is typically performed by a qualified mechanical or service technician. Shut off and depressurize the supply line before connecting or disconnecting the swivel inlet. Follow all applicable OSHA and facility safety guidelines when mounting the reel to walls, ceilings, or floor pedestals. The three-piece casing should be fully assembled and fasteners confirmed secure before returning the system to service.

Technical Specifications

• Hose ID: 1/4 inch
• Hose Capacity: 60 feet
• Length: 22.25 inches
• Width: 12.75 inches
• Height: 23.75 inches
• Weight: 60 pounds
• Material: Steel casing with brass swivel
• Finish: CPC powder coat
• Drive Type: Spring driven
• UPC: 674255715547

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: ENL-N-160
