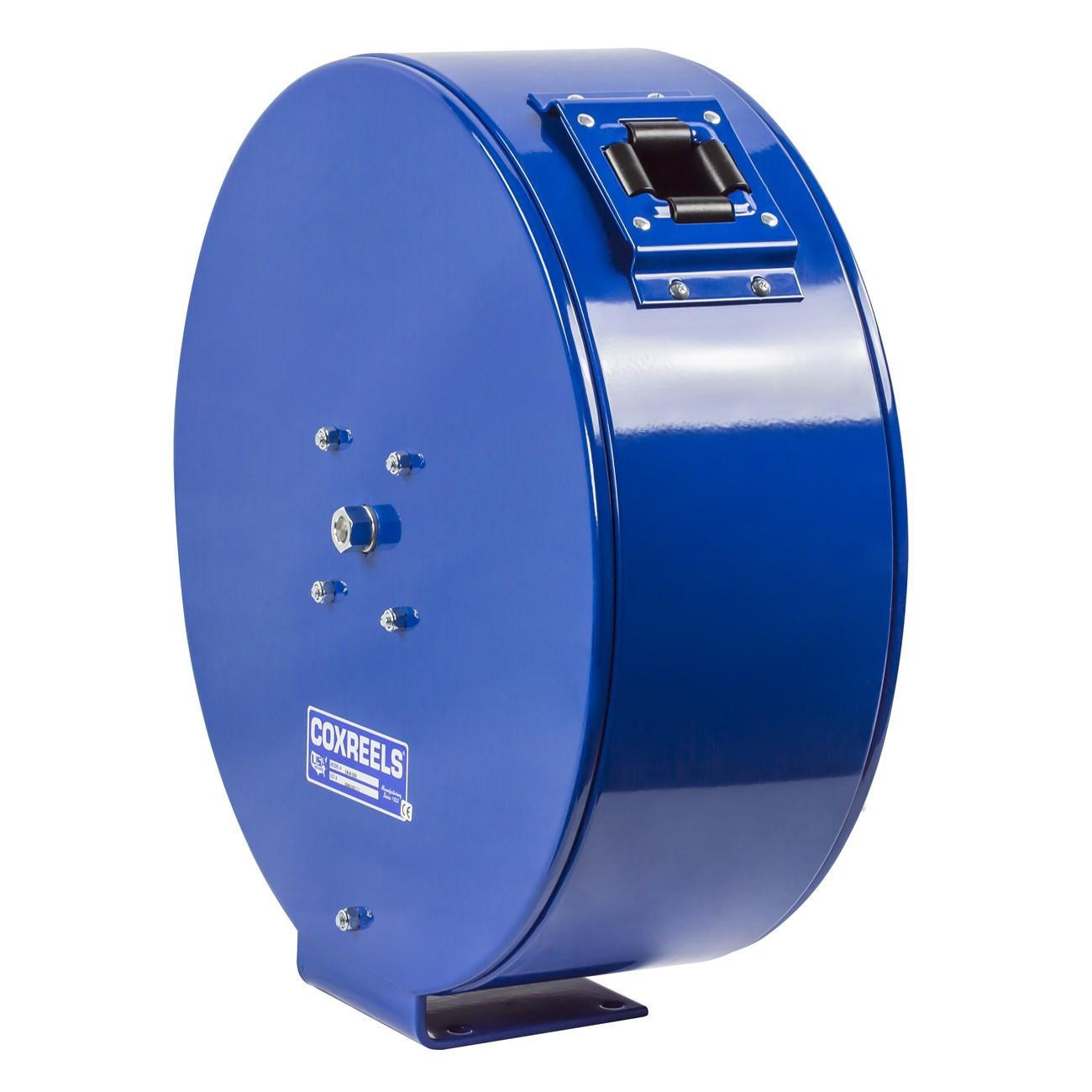

Coxreels ENHL-N-160 Enclosed Spring Driven Hose Reel

Product Description

The COXREELS ENHL-N-160 is an enclosed, spring-driven hose reel designed for professional work environments where hose management, durability, and a clean appearance are all required. The reel is housed in a heavy-gauge, three-piece powder-coated steel casing that protects internal components from dirt, moisture, and physical damage. It accepts 1/4 inch ID, 9/16 inch OD hose up to 60 feet in length. A machined zinc-plated steel 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount. Installed by mechanical contractors and industrial maintenance technicians in both shop and field environments.

The ENHL-N-160 is suited for light-duty fluid and air delivery applications in industrial, automotive service, and maintenance environments where a contained, professional-looking installation is required. The enclosed casing makes it appropriate for customer-facing work areas, tool rooms, and service bays. The adjustable hose roller guide assists in controlled hose retraction and payout, reducing wear on the hose over repeated cycles.

Key Features

• Three-piece heavy-gauge steel enclosure with CPC powder coat finish resists chips, rust, and corrosion
• Spring-driven cartridge motor is lubricated, enclosed, and removable for maintenance without full disassembly
• 90-degree full-flow NPT swivel machined from zinc-plated steel allows in-place seal service
• CNC robotically spun and ribbed discs with rolled edges for strength and hose protection
• Single-pedestal solid steel base with no-weld construction for maximum stability
• Multi-position lock ratchet mechanism with lubricated precision bearings for reliable retraction control

Compatibility

Designed as an OEM-style replacement or direct installation unit for spring-driven enclosed hose reel applications requiring 1/4 inch ID hose up to 60 feet in length.

Installation Notes

Installation is performed by qualified mechanical or maintenance technicians. Shut off the air or fluid supply and relieve all line pressure before mounting or servicing the reel. The three-piece casing disassembles without special tooling for straightforward wall or pedestal mounting. Follow all applicable facility safety codes when routing hose and securing the mounting base.

Technical Specifications

• Hose ID: 1/4 inch
• Hose OD: 9/16 inch
• Hose Length: 60 feet
• Drive Type: Spring driven
• Enclosure Type: Enclosed, 3-piece casing
• Material: Steel
• Finish: CPC powder coat
• Length: 22.25 inches
• Width: 12.75 inches
• Height: 23.75 inches
• Weight: 71 pounds
• UPC: 674255715431

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: ENHL-N-160
