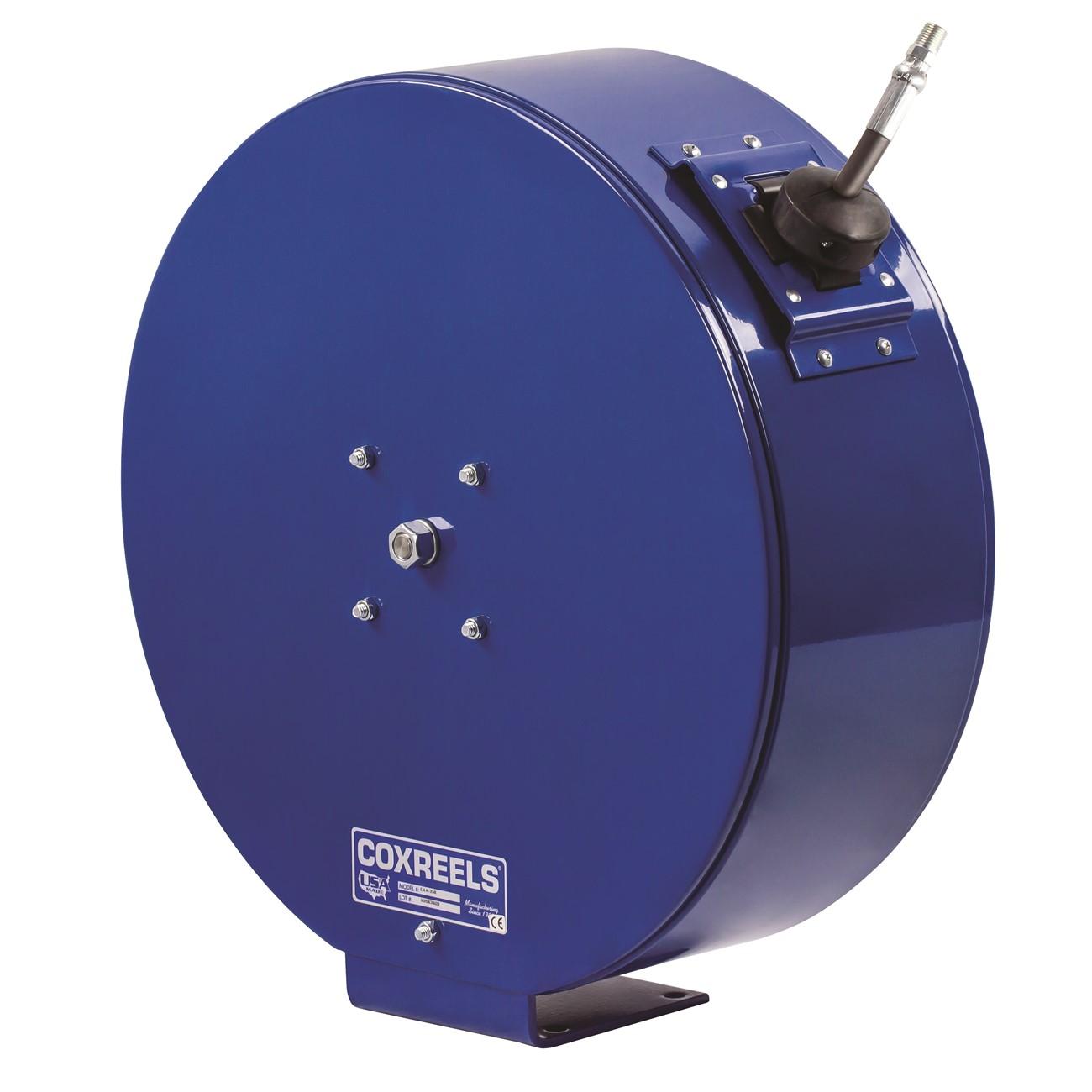

Coxreels ENH-N-335 Enclosed Spring Driven Hose Reel

Product Description

The COXREELS ENH-N-335 is an enclosed, spring-driven hose reel built for trade and industrial environments where hose protection and a clean appearance are both priorities. The reel is housed in a heavy-gauge, powder-coated steel 3-piece casing that shields internal components from dirt, moisture, and physical damage. It accepts 3/8 inch ID hose up to 35 feet in length and is constructed from steel throughout. The enclosure disassembles easily for routine maintenance without requiring full removal from the mount. Licensed mechanics, service technicians, and facilities maintenance crews are the typical installers and end users.

The ENH-N-335 suits professional service bays, maintenance shops, fleet facilities, and industrial workstations where a tidy, permanent hose station is needed. The enclosed design makes it appropriate for environments that require a clean and organized appearance alongside durable, reliable hose management. The adjustable hose roller guide helps direct hose routing to suit a range of mounting positions and workspace layouts.

Key Features

• Heavy-gauge steel 3-piece casing with powder-coat finish that is chip-resistant and rust-inhibiting
• Machined zinc-plated steel 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Cartridge-style spring motor is lubricated, enclosed, and fully removable for convenient servicing
• CNC robotically spun and ribbed discs with rolled edges for added strength, hose protection, and operator safety
• Solid one-piece steel base and support post with no-weld construction and dual axle support for maximum stability
• Multi-position lock ratchet mechanism, adjustable solid rubber hose stop, and lubricated precision bearings

Compatibility

Designed as an OEM-style enclosed spring-driven reel for use with 3/8 inch ID hose in professional and industrial hose management applications.

Installation Notes

Installation is typically performed by maintenance technicians or shop equipment specialists. Shut off and depressurize the air or fluid supply line before connecting or servicing the reel. The 3-piece casing is designed for tool-accessible disassembly, allowing swivel and motor service without dismounting the unit. Follow applicable OSHA and facility safety standards when mounting overhead or in high-traffic service areas.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 11/16 inches
• Hose Capacity: 35 feet
• Drive Type: Spring driven
• Casing Material: Steel
• Length: 22.25 inches
• Width: 12.75 inches
• Height: 23.75 inches
• Weight: 76 pounds
• UPC: 674255715363

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: ENH-N-335
