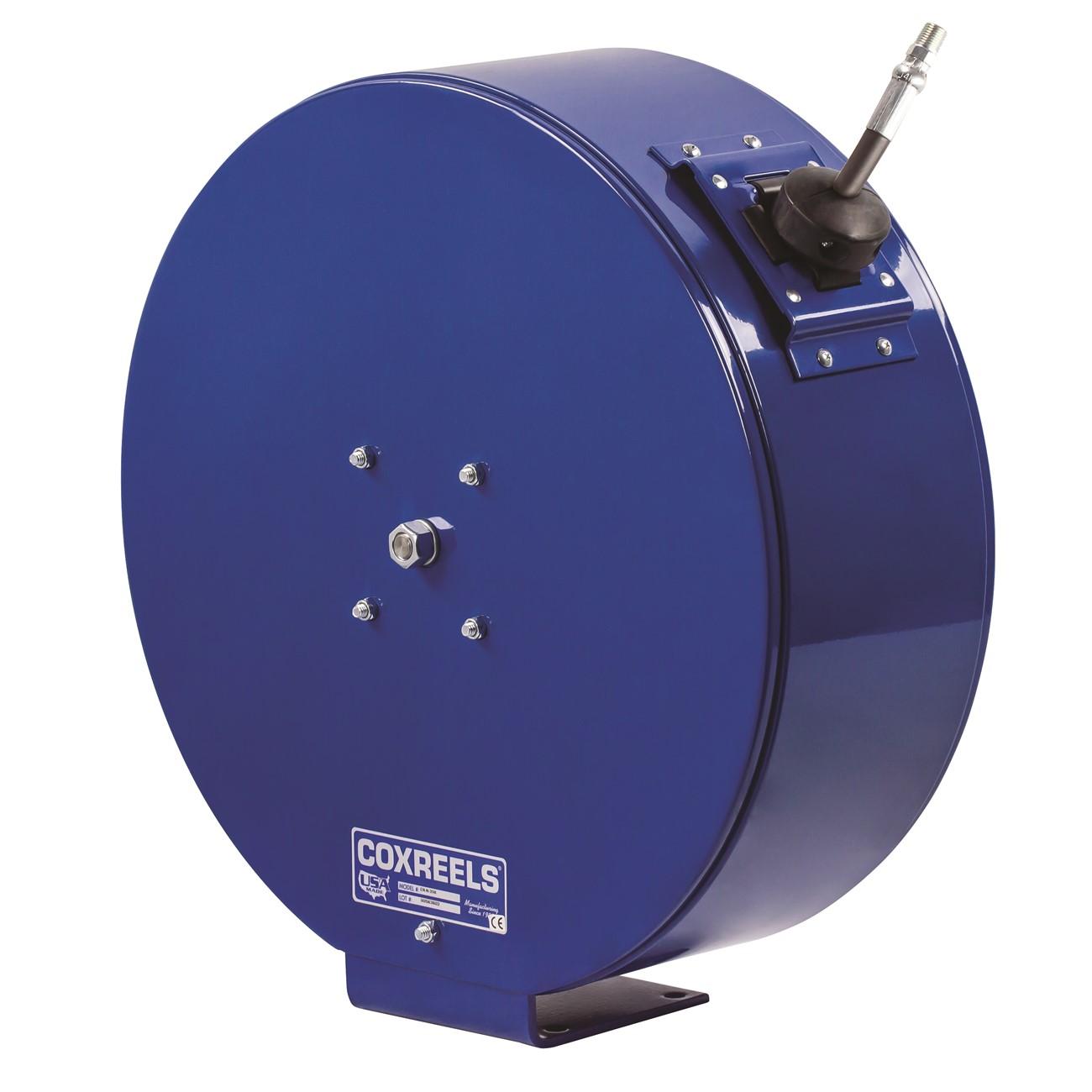

Coxreels ENH-N-135 Enclosed Spring Driven Hose Reel

Product Description

The COXREELS ENH-N-135 is an enclosed, spring-driven hose reel built for trade environments that require both hose protection and a clean, professional appearance. The reel features a heavy-gauge steel three-piece casing with a CPC powder coat finish that resists chips and rust, shielding the internal components from the elements. The spring-driven retraction mechanism uses a cartridge-style motor that is fully enclosed and lubricated for low-maintenance operation. Designed for use with 1/4 inch ID hose up to 35 feet in length, this reel suits compressed air, fluid transfer, and similar service applications in workshops, service bays, and light industrial settings. A licensed technician or qualified service professional handles installation and mounting.

The ENH-N-135 fits residential and commercial service environments where hose management, cleanliness, and component longevity are priorities. The enclosed casing keeps the reel and hose protected from debris, moisture, and physical damage in active work areas. The adjustable hose roller guide and solid rubber hose stop support organized, controlled hose deployment and retraction. The single-pedestal steel base with solid one-piece support post provides stable floor or wall-mount installation without welded joints.

Key Features

• Heavy-gauge steel three-piece enclosure with CPC powder coat finish for rust and chip resistance
• Enclosed, lubricated cartridge-style spring motor is removable for straightforward maintenance
• Machined zinc-plated steel 90-degree full-flow NPT swivel allows seal service and hose changes without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges for added strength, durability, and operator safety
• Multi-position lock ratchet mechanism holds hose at desired extension length
• Adjustable hose roller guide and solid rubber hose stop for controlled hose management
• Solid one-piece steel base with single-pedestal design and dual axle support for maximum stability

Compatibility

Designed for use with 1/4 inch ID, 9/16 inch OD hose up to 35 feet in length in compressed air, fluid, and similar service applications typical of the COXREELS EN Series enclosed spring-driven reel product line.

Installation Notes

Installation is typically performed by a qualified mechanic, service technician, or industrial maintenance professional. Shut off and depressurize the supply line completely before mounting or connecting the reel. Verify that the mounting surface and fasteners are rated for the combined weight of the reel and a fully loaded hose. Consult applicable facility and local codes for compressed air or fluid system installations.

Technical Specifications

• Hose Inner Diameter: 1/4 inch
• Hose Outer Diameter: 9/16 inch
• Hose Length: 35 feet
• Drive Type: Spring driven
• Casing Material: Steel
• Finish: CPC powder coat
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 63 pounds
• UPC: 674255715325

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: ENH-N-135
