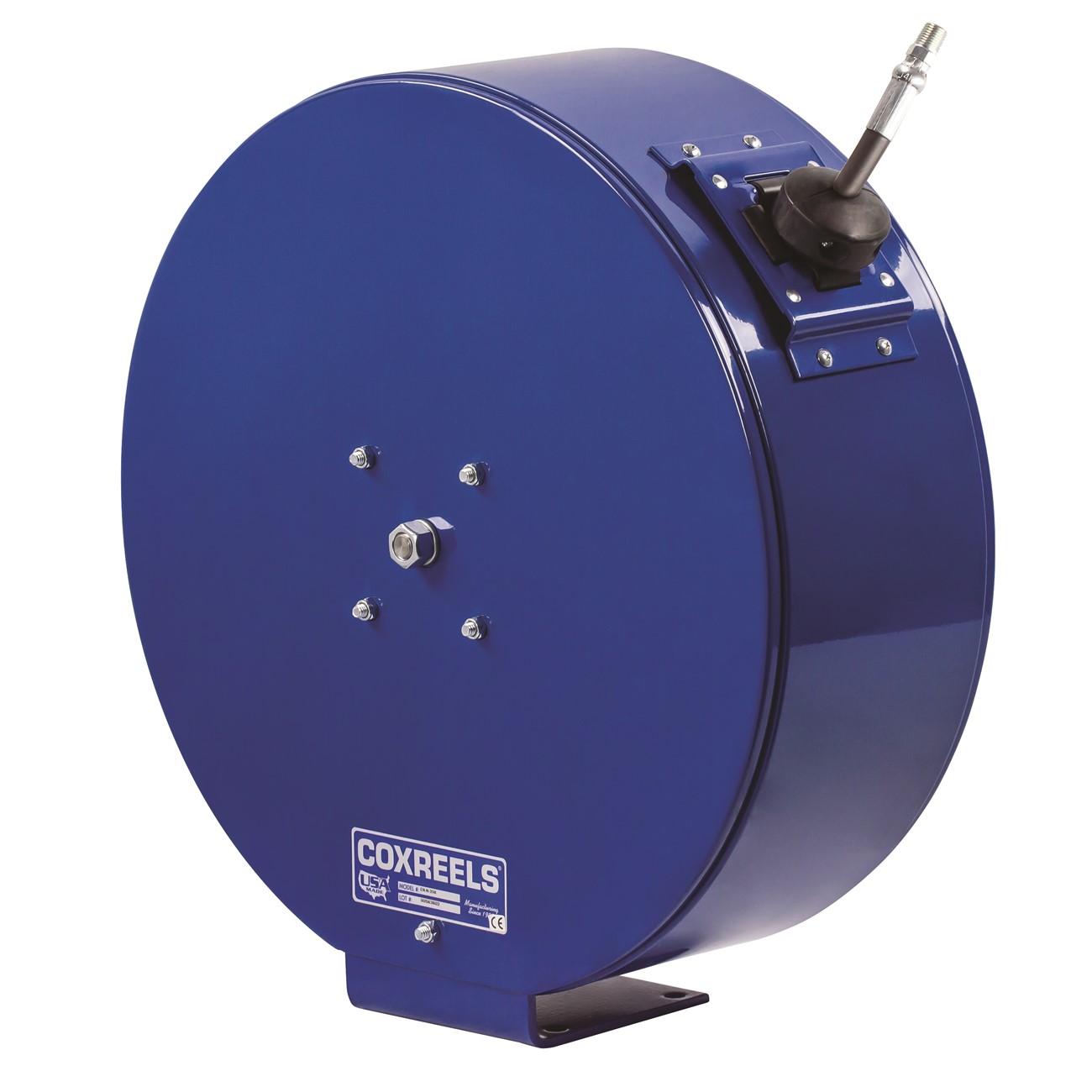

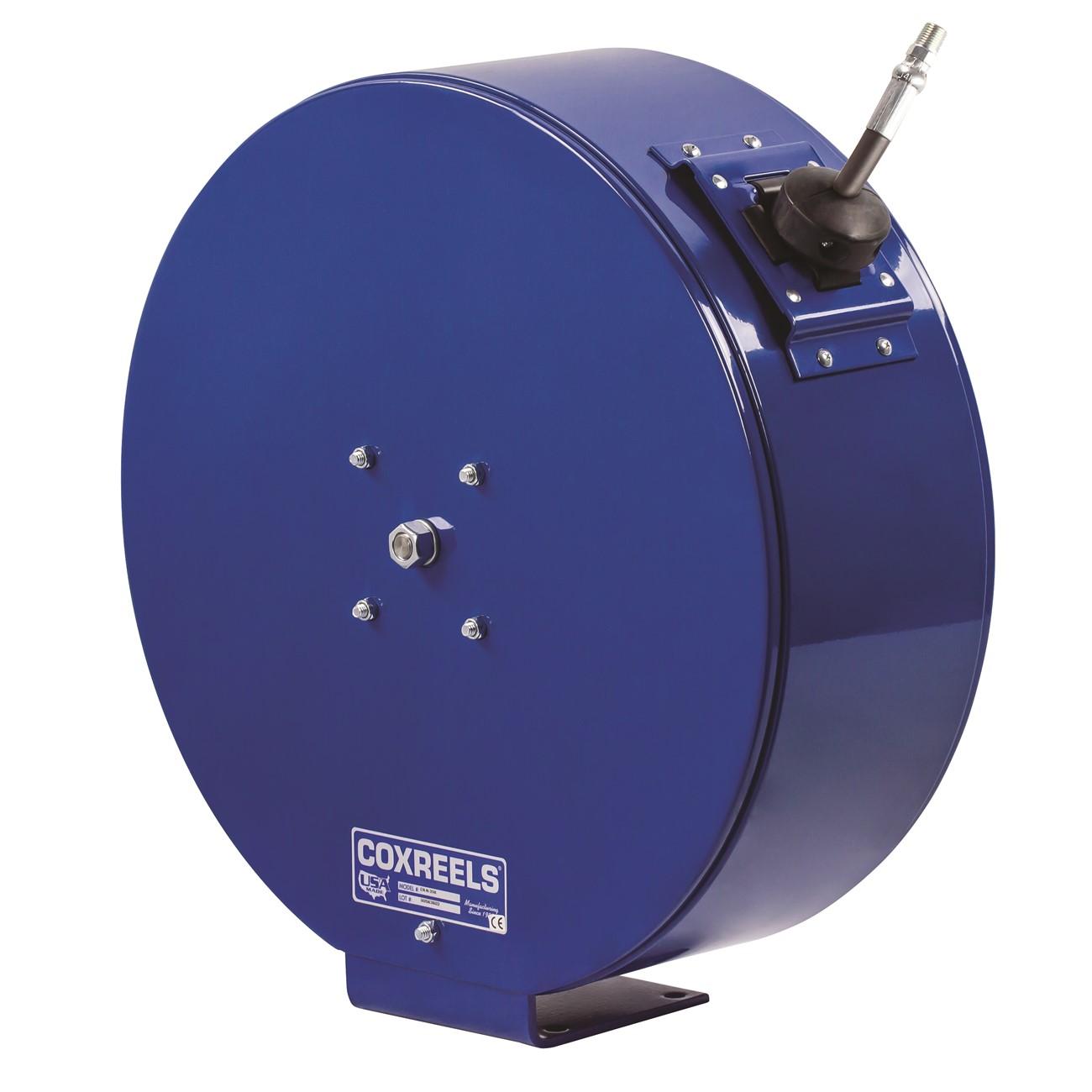

Coxreels ENH-N-125 Enclosed Spring Driven Hose Reel

Product Description

The COXREELS ENH-N-125 is an enclosed, spring-driven hose reel built for trade environments where both hose protection and a clean, professional appearance are required. The reel features a heavy-gauge, powder-coated steel 3-piece casing that shields internal components from dirt, moisture, and physical damage. Designed for 1/4 inch ID hose up to 25 feet in length, it uses a cartridge-style spring motor and a machined zinc-plated steel 90-degree full-flow NPT swivel. Licensed HVAC techs, plumbers, and industrial service technicians are the typical end users. The unit weighs 60 pounds and measures 20.5 inches long by 10.5 inches wide by 22 inches tall.

The ENH-N-125 is suited for professional service shops, vehicle-mounted setups, and fixed wall or pedestal installations where hose management and workplace appearance both matter. The enclosed design keeps the hose coiled and protected when not in use, making it appropriate for compressed air, light fluid, and similar low-pressure service lines in residential and light commercial service environments. The adjustable hose roller guide and solid rubber hose stop make it practical for high-frequency daily use by service technicians.

Key Features

• Heavy-gauge steel 3-piece casing with CPC powder coat finish for chip resistance and rust inhibition
• Cartridge-style spring motor is fully enclosed and removable for maintenance without special tools
• Machined zinc-plated steel 90-degree full-flow NPT swivel allows seal service without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Multi-position lock ratchet mechanism with adjustable solid rubber hose stop
• Single-pedestal steel base with no-weld construction and dual axle support for maximum stability

Compatibility

Designed as an OEM-style replacement or direct-install enclosed spring-driven hose reel for 1/4 inch ID hose lines in professional service and shop environments.

Installation Notes

Installation is typically performed by a qualified service technician using standard hand tools. Shut off and depressurize the supply line fully before connecting or disconnecting the swivel inlet. Secure the pedestal base to a stable surface according to applicable facility and safety codes. Do not exceed the rated hose ID or length for this reel model.

Technical Specifications

• Hose ID: 1/4 inch
• Hose OD: 9/16 inch
• Hose Length: 25 feet
• Casing Material: Steel with CPC powder coat finish
• Swivel Material: Zinc-plated steel
• Drive Type: Spring driven
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 60 pounds
• UPC: 674255715318

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: ENH-N-125
