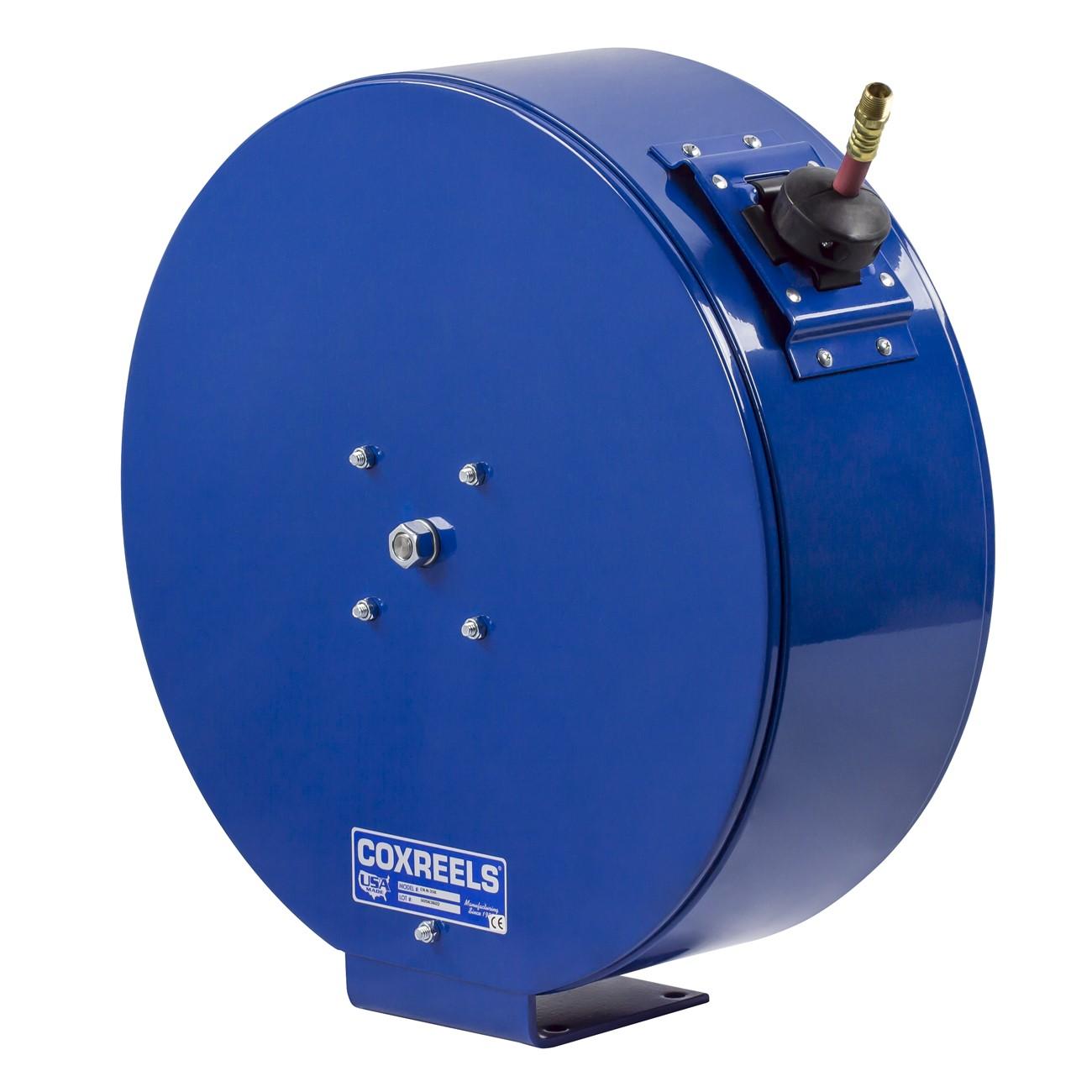

Coxreels EN-N-360 Enclosed Spring Driven Hose Reel

Product Description

The COXREELS EN-N-360 is an enclosed, spring-driven hose reel built for demanding trade and industrial environments where hose protection and a clean installation matter. The reel houses all internal components inside a heavy-gauge powder-coated steel casing, shielding the motor, discs, and hose from contaminants, impact, and weather exposure. It accepts 3/8 inch ID, 5/8 inch OD hose up to 60 feet in length and retracts automatically via a cartridge-style spring motor. Licensed technicians, service professionals, and facility maintenance crews install this reel wherever a self-retracting, protected hose station is required.

The EN-N-360 is designed for use in professional service bays, mechanical rooms, fleet maintenance facilities, and industrial workstations where a neat, enclosed hose management solution is necessary. Its spring-driven retraction makes it suitable for air, water, and compatible fluid service lines. The 3-piece steel casing design simplifies installation and allows straightforward access for routine maintenance without full reel removal. Applications span automotive service, light industrial, and general trade environments that require a compact, wall- or pedestal-mounted retractable hose station.

Key Features

• Enclosed heavy-gauge steel 3-piece casing with powder-coat finish resists chips, rust, and environmental exposure
• Cartridge-style spring motor is fully enclosed, lubricated, and removable for safe field maintenance
• Machined solid brass 90-degree full-flow NPT swivel allows seal service and hose changes without dismounting the reel
• CNC robotically spun and ribbed discs with rolled edges provide structural strength and hose protection
• Solid one-piece steel base with single pedestal support and dual axle support system for maximum stability
• Includes adjustable solid rubber hose stop, multi-position lock ratchet mechanism, and lubricated precision bearings

Compatibility

Designed for use with 3/8 inch ID hose up to 60 feet in length. Intended for air, water, and compatible fluid service applications as part of the COXREELS EN Series enclosed spring-driven reel line.

Installation Notes

Installation is typically performed by a qualified mechanical or facilities technician. Before servicing or mounting, relieve all line pressure and confirm the hose and fluid type are compatible with the reel's rated service. The 3-piece casing can be disassembled for access to internal components without removing the reel from its mount. Follow applicable facility and mechanical codes for hose reel mounting, fluid service, and pressure-rated fittings.

Technical Specifications

• Hose ID: 3/8 inch
• Hose OD: 5/8 inch
• Hose Capacity: 60 feet
• Drive Type: Spring driven
• Casing Material: Heavy-gauge steel with CPC powder-coat finish
• Swivel Material: Solid brass
• Length: 22.25 inches
• Width: 12.75 inches
• Height: 23.75 inches
• Weight: 68 pounds
• UPC: 674255715233

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EN-N-360
