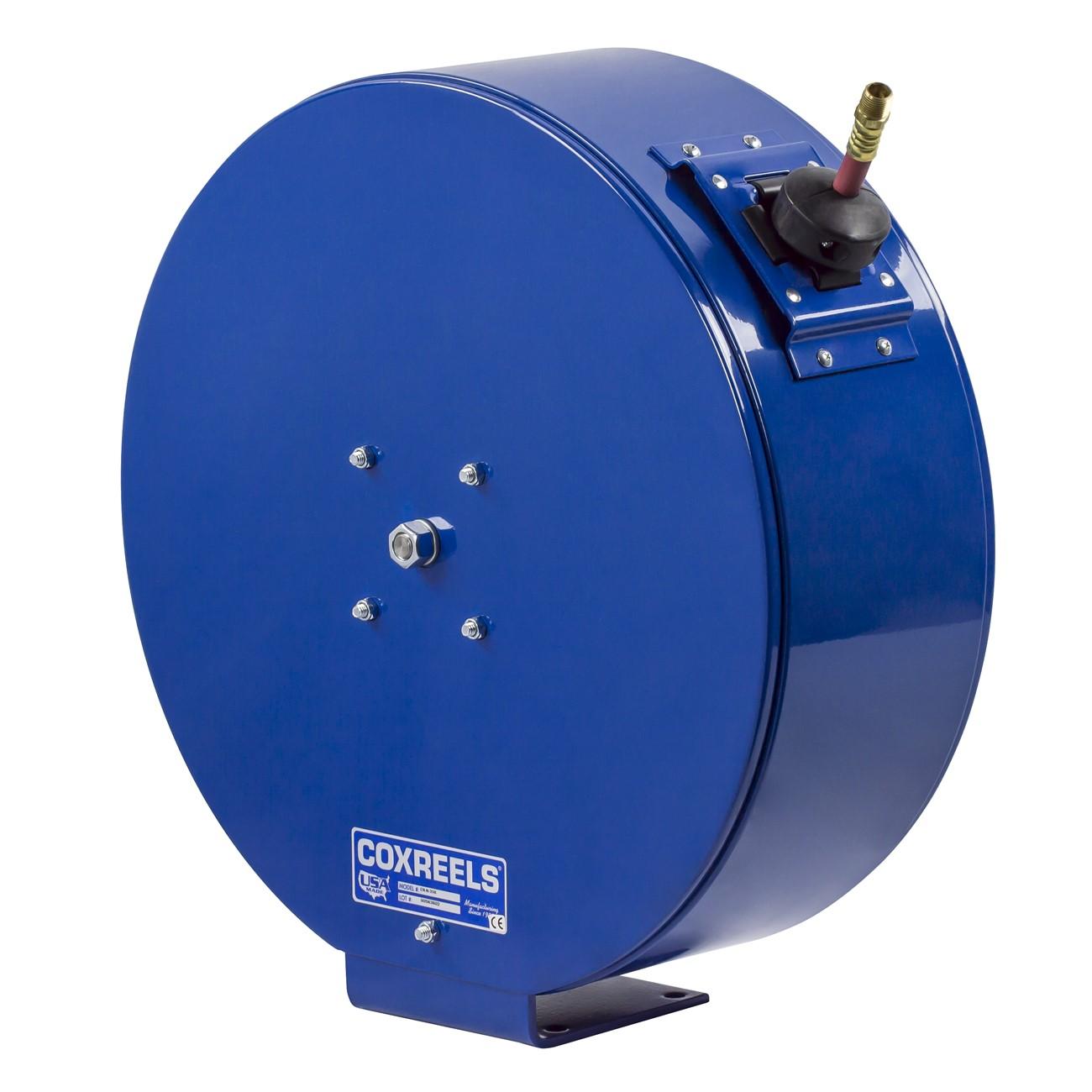

Coxreels EN-N-350 Enclosed Spring Driven Hose Reel

Product Description

The COXREELS EN-N-350 is an enclosed, spring-driven hose reel built for trade and industrial environments where hose protection and a clean installation are required. A heavy-gauge, three-piece powder-coated steel casing shields the internal components, the hose, and the spring motor from dirt, debris, and the elements. The reel measures 22.25 inches long, 12.75 inches wide, and 23.75 inches tall, and weighs 65 pounds. It accepts 3/8-inch ID hose up to 50 feet in length. Licensed contractors and service professionals in HVAC, plumbing, and general mechanical trades install this type of reel where a durable, organized hose storage solution is needed at a fixed service point.

The EN-N-350 is suited for stationary service bays, mechanical rooms, shop floors, and job-site installations that demand a neat, professional appearance. The enclosed casing keeps the reel assembly clean and protected between uses. The adjustable hose roller guide and multi-position lock ratchet mechanism allow the operator to position and lock the hose at the desired extension without tools. Its single-pedestal, no-weld steel base provides a stable mounting footprint on floors or elevated surfaces.

Key Features

• Three-piece heavy-gauge steel powder-coated casing protects internal components and resists chips, rust, and corrosion
• Spring-driven cartridge motor is lubricated, enclosed, and removable for maintenance without dismounting the reel
• Machined solid-brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges provide strength, durability, and hose protection
• Multi-position lock ratchet mechanism holds hose at any desired extension length
• Adjustable solid-rubber hose stop and adjustable hose roller guide included

Compatibility

Designed for use with 3/8-inch ID hose up to 50 feet in length. Intended for fixed-mount service installations in trade and industrial environments where an enclosed spring-rewind reel is required.

Installation Notes

Installation is typically performed by a licensed mechanical contractor or qualified service technician. The single-pedestal steel base should be secured to a stable surface using appropriate fasteners before connecting the hose supply line. Shut off and depressurize the supply line before making any hose or swivel connections. The three-piece casing disassembles for straightforward access during installation and maintenance.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 5/8 inches
• Hose Length Capacity: 50 feet
• Drive Type: Spring driven
• Casing Style: Enclosed, three-piece
• Length: 22.25 inches
• Width: 12.75 inches
• Height: 23.75 inches
• Weight: 65 pounds
• Material: Heavy-gauge steel casing, solid brass swivel, steel base
• Finish: CPC powder coat
• UPC: 674255715219

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EN-N-350
