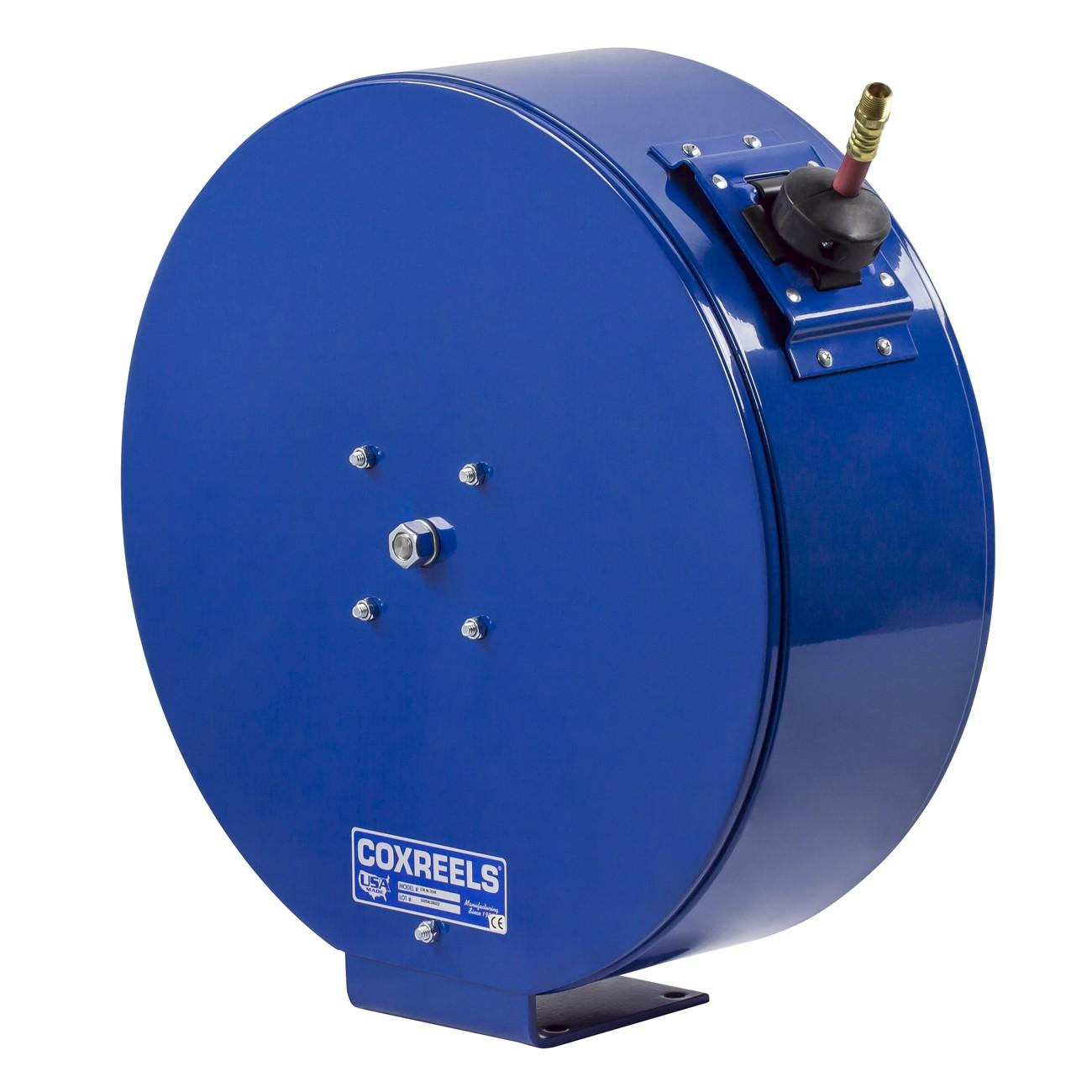

Coxreels EN-N-325 Enclosed Spring Driven Hose Reel

Product Description

The COXREELS EN-N-325 is an enclosed, spring driven hose reel designed for professional trade environments where hose management, durability, and a clean installation appearance are required. The reel features a heavy gauge steel three-piece powder coated casing that protects internal components from contaminants and physical damage. A machined solid brass 90-degree full-flow NPT swivel supports straightforward seal maintenance without removing the reel from its mount. CNC robotically spun and ribbed discs with rolled edges add structural strength and protect the hose during repeated use. At 49 pounds, the unit is built for fixed installation in shops, service bays, or equipment rooms.

The EN-N-325 is suited for light-duty fluid or air service lines in residential and commercial settings including automotive shops, HVAC service vehicles, plumbing supply stations, and industrial maintenance bays. The enclosed design makes it appropriate for environments where aesthetics and cleanliness standards are enforced. The spring driven retraction mechanism allows hands-free hose return. The reel accepts 3/8 inch ID, 5/8 inch OD hose up to 25 feet in length. Installation is typically performed by a general mechanic, HVAC technician, or plumber depending on the fluid service application.

Key Features

• Enclosed heavy gauge steel three-piece casing with powder coat finish protects reel and hose from contaminants and physical damage
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without dismounting the reel
• Lubricated cartridge-style spring motor is removable for maintenance
• CNC robotically spun and ribbed discs with rolled edges provide greater strength and hose protection
• Solid one-piece steel base with single pedestal support post and dual axle support system for stability
• Multi-position lock ratchet mechanism, adjustable solid rubber hose stop, and lubricated precision bearings included

Compatibility

Designed for use with 3/8 inch ID, 5/8 inch OD hose up to 25 feet in length. Intended as a fixed-mount spring driven reel for air, water, or compatible fluid service lines where an enclosed reel configuration is specified.

Installation Notes

Installation should be performed by a qualified technician familiar with the fluid or air service being connected. Shut off supply pressure and depressurize the line before mounting or servicing the reel. Secure the mounting base to a structurally adequate surface using appropriate fasteners rated for the reel weight. Verify that the hose and fittings used are rated for the working pressure and fluid type of the application before placing the system in service.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 5/8 inches
• Hose Length: 25 feet
• Drive Type: Spring driven
• Casing Material: Heavy gauge steel with powder coat finish
• Swivel Material: Solid brass
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 49 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EN-N-325
