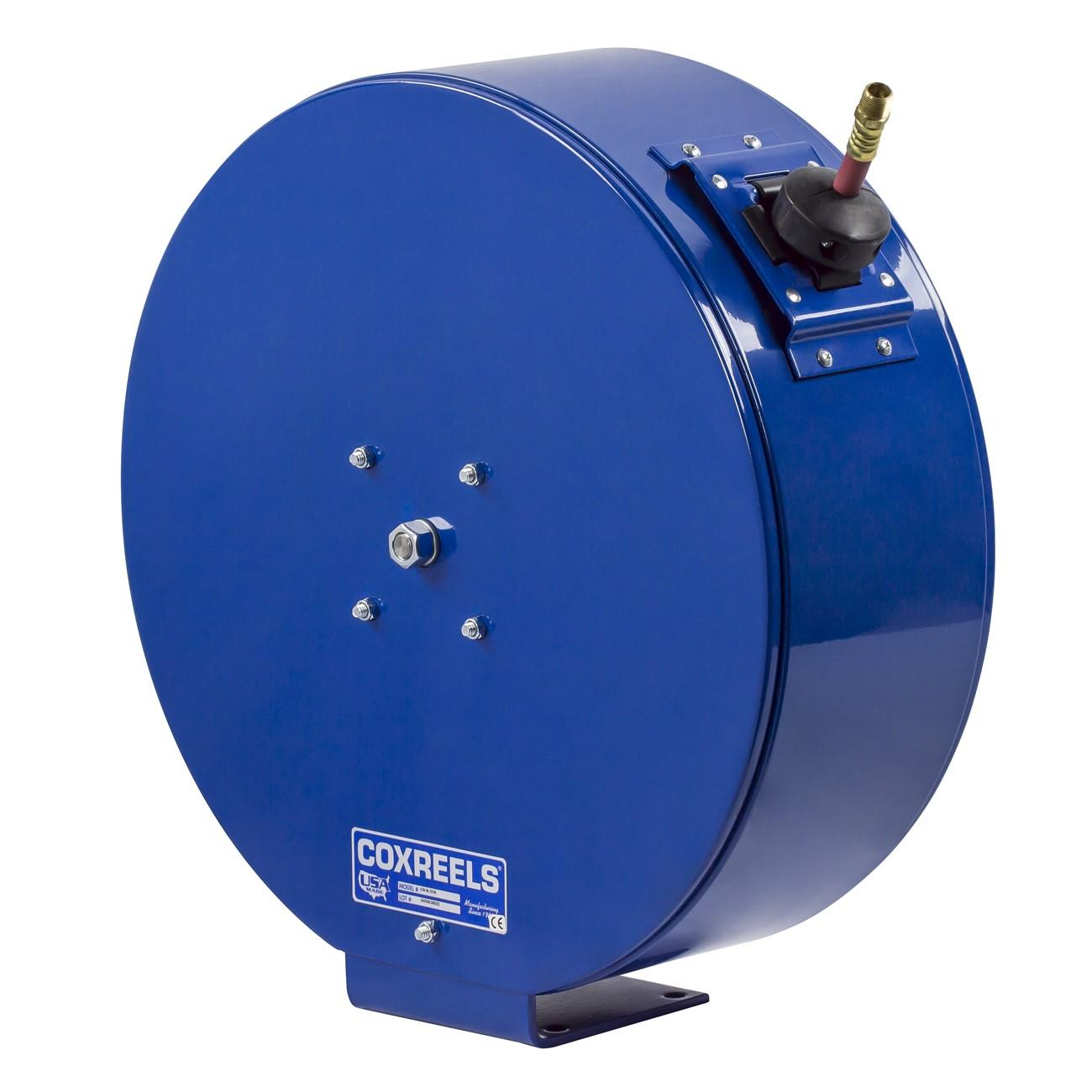

Coxreels EN-N-160 Enclosed Spring-driven Hose Reel

Product Description

The COXREELS EN-N-160 is an enclosed, spring-driven hose reel designed for professional trade environments where hose protection and a clean installation appearance are required. The reel features a heavy-gauge powder-coated steel 3-piece casing that shields internal components from contaminants, corrosion, and mechanical damage. Rated for 1/4 inch ID hose with a 1/2 inch OD and up to 60 feet of hose capacity, it is built for repeated daily use in HVAC, plumbing, and general mechanical service applications. A machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose swaps without removing the reel from its mount.

The EN-N-160 suits residential and light commercial service work where a wall- or pedestal-mounted reel needs to stay out of the way and protected from shop or field conditions. The enclosed casing keeps the reel and hose clean in service bays, equipment rooms, and mechanical spaces. The spring-driven rewind mechanism allows hands-free hose retraction, making it practical for solo technicians managing hose during service calls. The adjustable hose roller guide helps control lay and prevents kinking at the reel exit point.

Key Features

• Heavy-gauge steel 3-piece powder-coated casing shields internal components from dirt, moisture, and physical damage
• Machined solid brass 90-degree full-flow NPT swivel supports seal maintenance without dismounting the reel
• Enclosed cartridge-style spring motor is removable for field-serviceable maintenance
• CNC robotically spun and ribbed discs with rolled edges for structural strength and hose protection
• Multi-position lock ratchet mechanism holds hose at extended length without constant tension
• Solid one-piece steel base with single pedestal and dual axle support for stable mounting

Compatibility

Designed as an OEM-style replacement or new-install enclosed spring-driven hose reel for 1/4 inch ID hose in HVAC, plumbing, and mechanical service applications.

Installation Notes

Installation is typically performed by HVAC technicians, plumbers, or mechanical contractors. Mount to a secure wall surface or pedestal using hardware rated for the combined weight of the reel and fully loaded hose. Ensure the mounting surface can support the unit weight before fastening. Depressurize and disconnect any supply line before servicing internal components or the swivel assembly.

Technical Specifications

• Hose ID: 1/4 inch
• Hose OD: 1/2 inch
• Hose Capacity: 60 feet
• Drive Type: Spring-driven
• Casing Material: Heavy-gauge steel with CPC powder coat finish
• Swivel Material: Solid brass
• Length: 22.25 inches
• Width: 12.75 inches
• Height: 23.75 inches
• Weight: 65 pounds
• UPC: 674255715158

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EN-N-160
