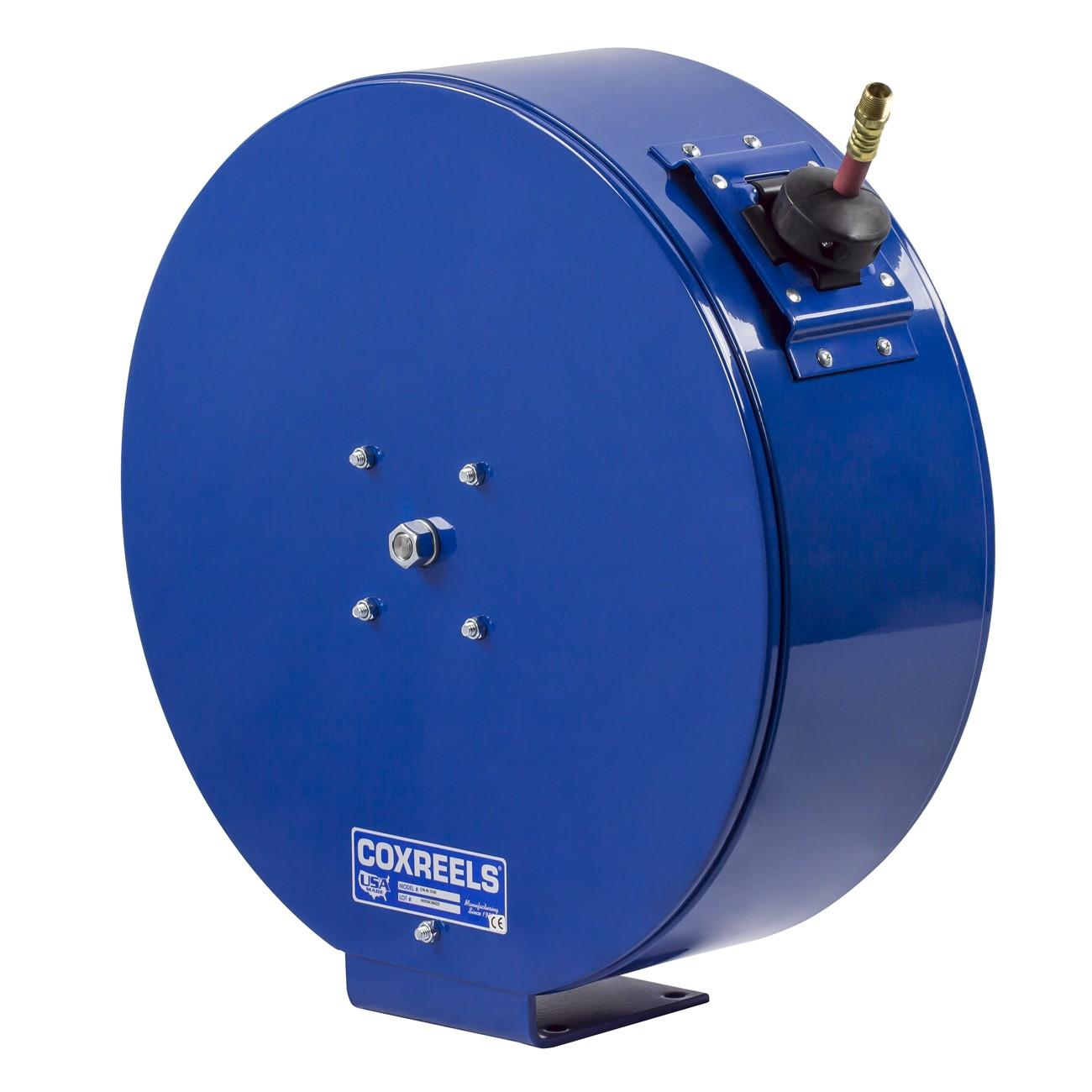

Coxreels EN-N-150 Enclosed Spring Hose Reel 1/4 in 50 Ft

Product Description

The COXREELS EN-N-150 is an enclosed, spring-driven hose reel built for trade and industrial environments where hose protection and a clean installation profile are both priorities. The reel houses its internal components inside a heavy-gauge powder-coated steel three-piece casing, shielding the spring motor, bearings, and swivel from dust, moisture, and mechanical damage. Hose capacity is 50 feet at 1/4 inch inner diameter. The unit ships as a single assembly weighing 52 pounds. Licensed trades and maintenance professionals in HVAC, plumbing, and light industrial service are the typical installers.

The EN-N-150 is suited for fixed-mount installations in shops, service bays, and commercial facilities where a tidy, professional appearance is required alongside reliable hose retraction. The enclosed casing keeps the reel visually clean and protects hose and components from environmental exposure. The three-piece casing design allows straightforward disassembly for inspection or maintenance without removing the full reel from its mount. The adjustable hose roller guide accommodates routing in tight or angled installations.

Key Features

• Heavy-gauge steel three-piece powder-coated casing shields internal components from elements and physical damage
• Cartridge-style spring motor is lubricated, enclosed, and removable for maintenance without full disassembly
• Machined solid brass 90-degree full-flow NPT swivel allows hose connection and seal service without dismounting the reel
• CNC robotically spun and ribbed discs with rolled edges provide structural strength and protect hose during retraction
• Multi-position lock ratchet mechanism holds hose at desired extension length
• Solid one-piece steel base with single pedestal and no-weld construction for maximum mounting stability
• Adjustable solid rubber hose stop and lubricated precision bearings included

Compatibility

Designed as an OEM-style enclosed spring-driven reel for fixed-mount applications accepting 1/4 inch inner diameter hose up to 50 feet in length.

Installation Notes

Installation is typically performed by a qualified mechanic or service technician. Secure the steel base to a structurally sound surface rated for the combined weight of the reel and loaded hose before attaching any supply line. Shut off and depressurize the supply line before connecting to the swivel inlet. Verify that all NPT thread connections are sealed and leak-tested before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 1/4 inch
• Hose Length: 50 feet
• Drive Type: Spring-driven
• Casing: Enclosed three-piece heavy-gauge steel
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Swivel: Machined solid brass 90-degree full-flow NPT
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 52 pounds
• UPC: 674255715134

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EN-N-150
