Coxreels EN-N-135 Enclosed Spring Hose Reel 1/4 in 35 Ft

Product Description

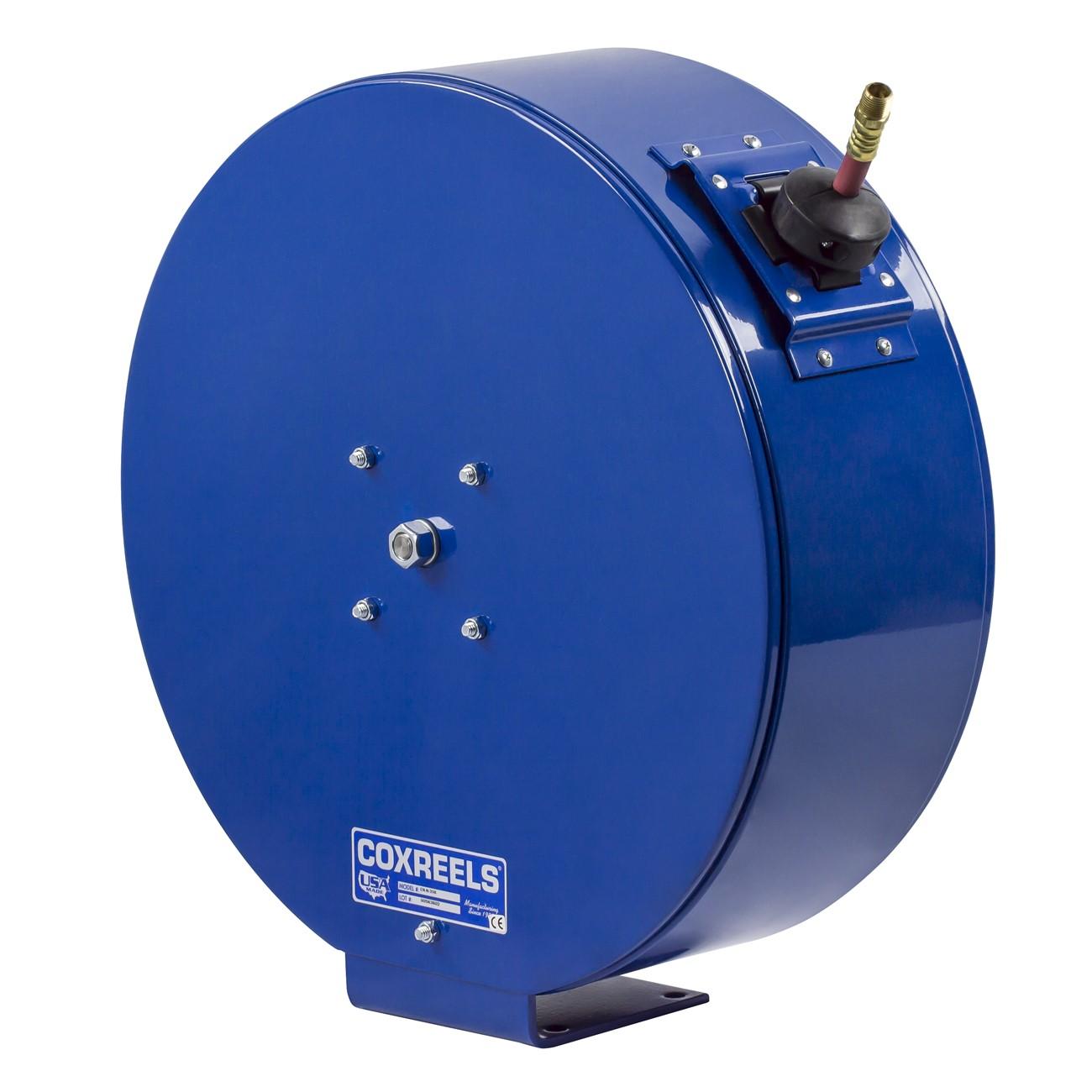

The COXREELS EN-N-135 is an enclosed, spring-driven hose reel designed for trade and industrial environments where hose protection and a clean installation appearance are priorities. The reel houses a 1/4 inch ID hose up to 35 feet in length inside a heavy-gauge, powder-coated steel three-piece casing that shields internal components from dust, moisture, and mechanical damage. A multi-position lock ratchet mechanism controls extension and retraction. The unit weighs 51 pounds and measures 20.5 inches long by 10.5 inches wide by 22 inches tall. Licensed HVAC technicians, plumbers, and general mechanical contractors commonly specify this reel for shop air, fluid dispensing, and similar low-pressure hose management applications.

The EN-N-135 is suited for both commercial shop environments and professional service vehicles where a tidy, protected hose storage solution is required. The enclosed casing keeps the hose coiled and shielded when not in use, reducing wear from UV exposure, debris, and foot traffic. The adjustable hose roller guide at the casing exit helps prevent kinking at the point of egress, extending hose service life. Its single-pedestal steel base with a no-weld support post allows mounting to walls, floors, or service vehicle surfaces in a stable, low-profile configuration.

Key Features

• Three-piece heavy-gauge steel enclosure with CPC powder-coat finish for chip and rust resistance
• Machined solid-brass 90-degree full-flow NPT swivel allows seal maintenance and hose replacement without dismounting the reel
• Cartridge-style spring motor is fully enclosed, lubricated, and removable for field maintenance
• CNC robotically spun and ribbed discs with rolled edges for structural strength and operator safety
• Multi-position lock ratchet mechanism with adjustable solid-rubber hose stop
• Lubricated precision bearings and exclusive dual-axle hub support system for long service life

Compatibility

Designed as an OEM-style enclosed spring-driven hose reel compatible with 1/4 inch ID hose applications up to 35 feet in length; consult COXREELS EN Series specifications to confirm fitting and fluid compatibility for specific use cases.

Installation Notes

Installation is typically performed by a qualified mechanic or facilities technician familiar with hose reel mounting requirements. Depressurize and disconnect the supply line before attaching or removing the reel from its mounting surface. The three-piece casing is designed to disassemble without special tools, simplifying initial installation and routine maintenance access. Verify that mounting hardware and substrate are rated to support the combined weight of the reel and a fully loaded hose.

Technical Specifications

• Hose ID: 1/4 inch
• Hose OD: 1/2 inch
• Hose Length: 35 feet
• Drive Type: Spring-driven
• Enclosure: Enclosed three-piece steel casing
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 51 pounds
• Material: Steel casing, solid brass swivel
• Finish: CPC powder coat
• UPC: 674255715110

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EN-N-135
