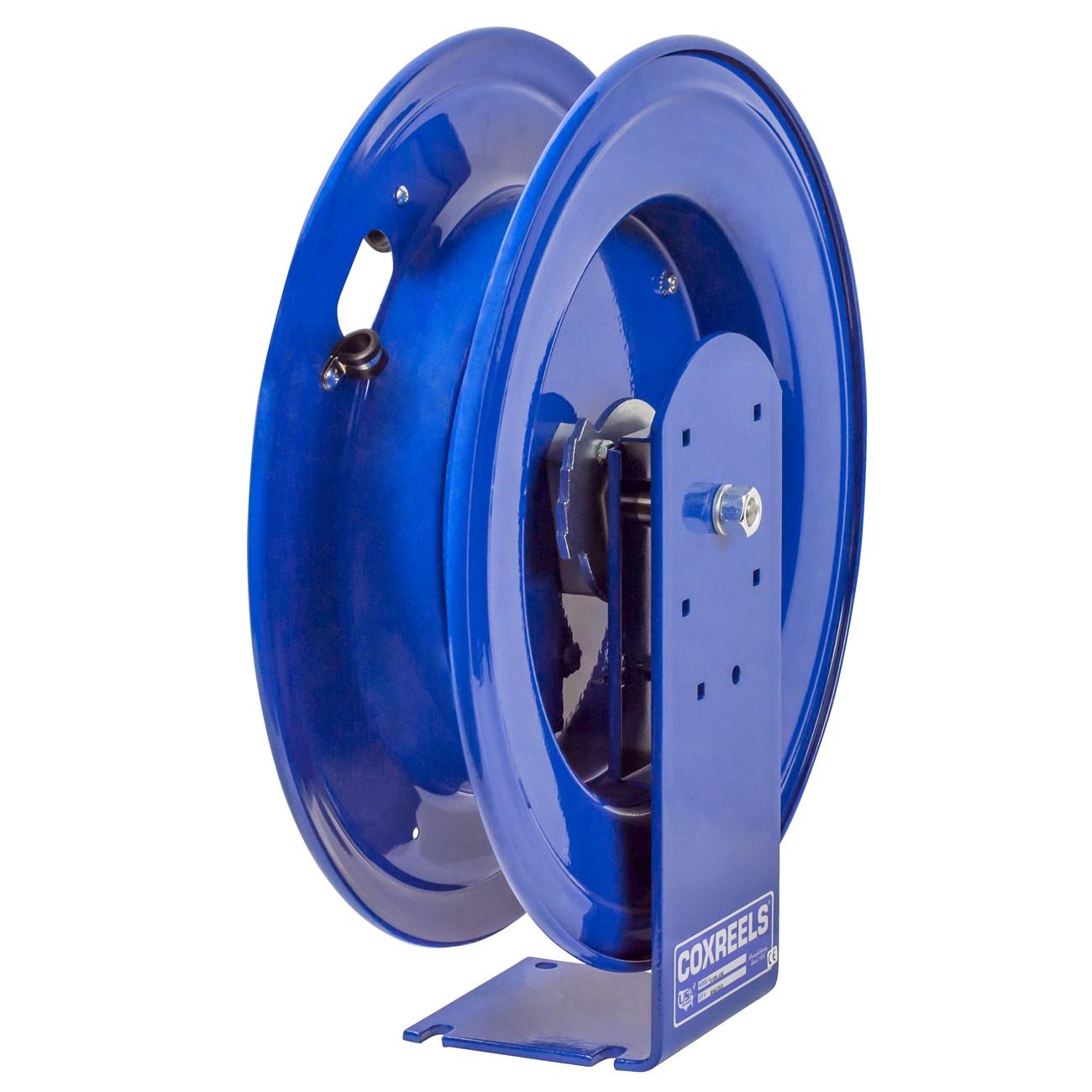

Coxreels E-MPL-350 Spring Rewind Hose Reel 3/8 in 50 Ft

Product Description

The COXREELS E-MPL-350 is a spring-driven hose reel from the E Series expandable multiple bank system, designed for professional multimedia delivery in service shops, fleet facilities, and commercial garages. It accepts 3/8-inch ID hose up to 50 feet in length and retracts automatically via an internal spring motor. The reel is built around a solid one-piece steel base and support post with no welds, a CNC robotically spun and ribbed disc design, and a machined solid brass 90-degree full-flow NPT swivel. At 49 pounds, it is a heavy-duty unit intended for permanent installation by qualified service technicians.

The E-MPL-350 is suited for use in automotive service bays, industrial maintenance facilities, and commercial shop environments where a clean, organized multi-reel layout is required. The interlocking cabinet design allows multiple reel assemblies to be combined and expanded to any number of units, supporting centralized delivery of air, water, oil, or other compatible media. This makes it a practical choice for high-use service environments that demand both durability and a professional appearance.

Key Features

• Spring-driven cartridge motor is lubricated, enclosed, and fully removable for maintenance without removing the reel from its mount
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without unmounting the reel
• CNC robotically spun and ribbed discs with rolled edges for structural strength, hose protection, and operator safety
• Solid one-piece steel base with no-weld support post construction for maximum stability
• Expandable interlocking metal cabinet design supports multiple reel bank configurations
• CPC powder coat finish is chip resistant and rust inhibiting; includes adjustable solid rubber hose stop and multi-position lock ratchet mechanism

Compatibility

Designed for use within the COXREELS E Series expandable multiple bank cabinet system; compatible with 3/8-inch ID hose up to 50 feet. Consult COXREELS documentation for compatible cabinet enclosures and accessory reel assemblies.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed air or fluid delivery systems. Shut off and depressurize the supply line before connecting or servicing the reel. Secure the base to a stable mounting surface per the manufacturer instructions and applicable facility codes. Do not exceed the rated hose size or length when configuring the reel assembly.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 5/8 inches
• Hose Capacity: 50 feet
• Drive Type: Spring rewind
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Base Material: Steel, one-piece no-weld construction
• Finish: CPC powder coat, chip resistant and rust inhibiting
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 49 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: E-MPL-350
