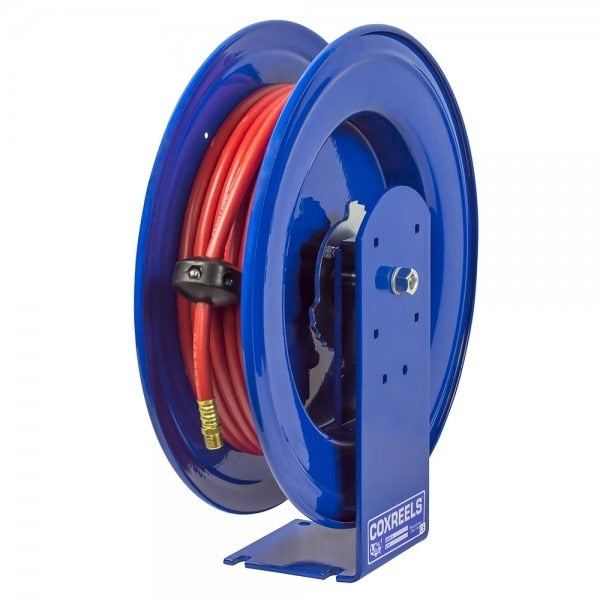

Coxreels E-MP-450 Spring Driven Hose Reel 1/2 in 50 Ft

Product Description

The COXREELS E-MP-450 is a spring-driven hose reel from the E Series expandable multiple bank system, designed for professional multimedia fluid delivery in commercial and industrial environments. Built around a solid one-piece steel base with a single pedestal design, the E-MP-450 accepts 1/2 inch ID, 3/4 inch OD hose up to 50 feet in length. A lubricated and enclosed cartridge-style motor drives retraction and is removable for field maintenance without special tooling. The unit weighs 63 pounds and measures 20.5 inches long, 10.5 inches wide, and 22 inches tall, making it a substantial, fixed-mount reel suited to permanent shop or service bay installations. Licensed HVAC techs, plumbers, and shop mechanics are the typical installers.

The E-MP-450 fits into the COXREELS E Series cabinet framework, which is designed to interlock and expand to accommodate any number of spring-driven reel assemblies side by side. This makes it well suited for multi-bay service facilities, fleet maintenance shops, and commercial service vehicles where organized delivery of air, water, or fluid lines is required. The expandable cabinet design allows operators to build out a multi-reel bank system over time without replacing existing units. Each reel assembly functions independently within the shared cabinet structure.

Key Features

• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• Lubricated, enclosed cartridge-style motor is fully removable for maintenance without disassembling the cabinet
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Solid one-piece steel base with single pedestal and no-weld construction for maximum stability
• Multi-position lock ratchet mechanism holds hose at any extended length
• CPC powder coat finish is chip resistant and rust inhibiting for long service life in shop environments
• Adjustable solid rubber hose stop and lubricated precision bearings included

Compatibility

Designed for use within the COXREELS E Series expandable multiple bank cabinet system; compatible with 1/2 inch ID, 3/4 inch OD hose up to 50 feet in length.

Installation Notes

Installation is typically performed by a qualified mechanic or plumbing professional using standard hand tools. The reel should be mounted to a structurally sound surface capable of supporting the unit weight plus the loaded hose assembly. Shut off and depressurize the fluid supply line before connecting or disconnecting the swivel inlet. Consult local plumbing and mechanical codes for hose reel mounting requirements in commercial facilities.

Technical Specifications

• Hose Inside Diameter: 1/2 inch
• Hose Outside Diameter: 3/4 inch
• Maximum Hose Length: 50 feet
• Drive Type: Spring driven
• Swivel Type: 90-degree full-flow NPT brass swivel
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 63 pounds
• Base Material: Steel
• Finish: CPC powder coat, chip resistant and rust inhibiting
• UPC: 674255715004

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: E-MP-450
