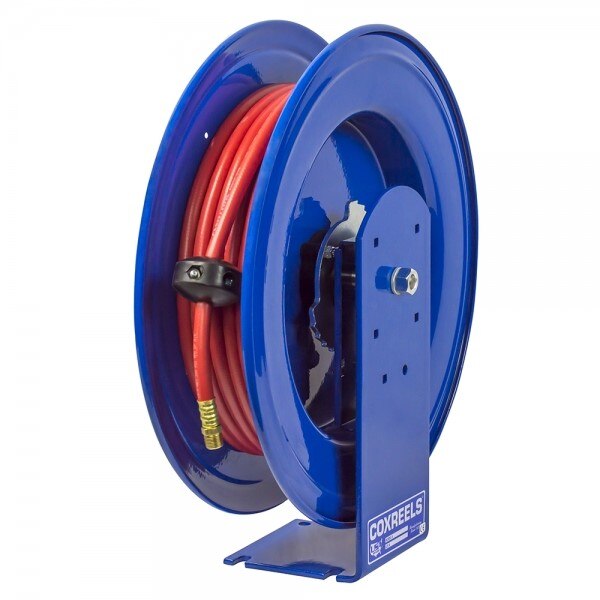

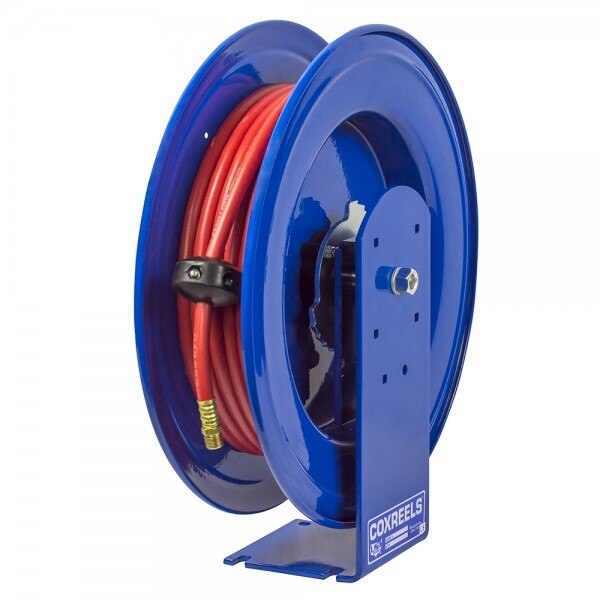

Coxreels E-MP-430 Spring Rewind Hose Reel 1/2 in 30 Ft

Product Description

The COXREELS E-MP-430 is a spring-rewind hose reel from the E Series expandable bank system, designed for professional multimedia delivery in industrial and commercial service environments. Built around a solid one-piece steel base and support post with no welds, the reel accommodates 1/2 inch ID hose up to 30 feet in length. The cartridge-style spring motor is lubricated, enclosed, and fully removable for maintenance without disturbing the reel mount. Heavy-duty CNC robotically spun and ribbed discs with rolled edges provide structural strength and protect hose during repeated retraction cycles. Licensed HVAC technicians, plumbers, and shop service professionals are the typical installers.

The E-MP-430 is suited for fixed service bays, professional shop floors, and any environment where multiple reels must be organized within an expandable cabinet configuration. The E Series cabinet design is interlocking and scalable, allowing any number of spring-driven reel assemblies to be combined in a single bank system. This makes the E-MP-430 a practical choice for multi-bay automotive service shops, industrial maintenance facilities, and professional plumbing or HVAC service setups requiring organized, centralized fluid or air delivery at a fixed station.

Key Features

• Spring-rewind cartridge motor is lubricated, enclosed, and removable for safe field maintenance
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges for increased strength, durability, and hose protection
• Solid one-piece steel base and support post construction with no welds for maximum stability
• Multi-position lock ratchet mechanism holds hose at desired extension length
• CPC powder coat finish resists chips and rust for long service life in demanding environments

Compatibility

Designed for use within the COXREELS E Series expandable interlocking cabinet bank system; compatible with 1/2 inch ID hose configurations up to 30 feet in length.

Installation Notes

Installation is typically performed by a qualified technician familiar with hose reel mounting and plumbing connections. Shut off the supply line and depressurize the system before connecting or servicing the swivel and hose fittings. Secure the steel base pedestal to a stable mounting surface per the manufacturer instructions before applying line pressure. Follow applicable local plumbing and mechanical codes when connecting to pressurized fluid or air supply lines.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 3/4 inch
• Hose Capacity: 30 feet
• Rewind Type: Spring
• Swivel Type: Machined brass 90-degree full-flow NPT
• Base Material: Steel
• Finish: CPC powder coat
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 47 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: E-MP-430
