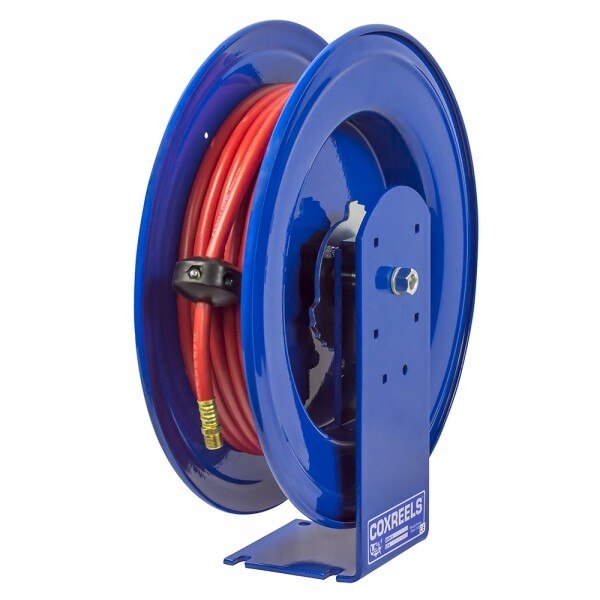

Coxreels E-MP-350 Spring Rewind Hose Reel 3/8 in 50 Ft

Product Description

The COXREELS E-MP-350 is a spring-rewind hose reel from the E Series expandable bank system, built for professional multimedia delivery in service bays, shops, and fleet facilities. It accommodates 3/8 inch ID hose up to 50 feet in length and uses a cartridge-style spring motor for smooth, controlled retraction. The reel mounts on a single-pedestal steel base with a solid one-piece support post requiring no welding. A machined brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount. Licensed technicians and shop mechanics are the primary installers. At 61 pounds, the unit is built for permanent fixed installation.

The E-MP-350 is suited for commercial and industrial service environments where multiple reels are needed in a single organized station. The E Series cabinet design is interlocking and expandable, allowing any number of spring-driven reel assemblies to be combined into one bank system. Typical applications include vehicle service shops, maintenance facilities, and fleet service bays where compressed air, fluid, or other media are delivered from a central overhead or wall-mounted reel station. The unit ships as a single reel assembly intended for standalone use or integration into a multi-reel cabinet bank.

Key Features

• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without dismounting the reel
• Cartridge-style spring motor is lubricated, enclosed, and removable for in-place maintenance
• CNC robotically spun and ribbed discs with rolled edges provide structural strength and hose protection
• Single-pedestal steel base with one-piece support post and no-weld construction for maximum stability
• Expandable interlocking cabinet design supports multi-reel bank configurations
• CPC powder coat finish resists chips and rust; includes adjustable rubber hose stop, multi-position lock ratchet, and lubricated precision bearings

Compatibility

Designed for integration into COXREELS E Series expandable metal cabinet bank systems and suitable as a standalone spring-rewind reel for 3/8 inch ID hose applications in commercial and industrial service environments.

Installation Notes

Installation is typically performed by qualified maintenance technicians or shop equipment installers. Shut off all supply lines and depressurize the system before mounting or servicing the reel. Secure the pedestal base to a structurally sound surface using hardware rated for the load. Verify that inlet fittings and swivel connections are compatible with the supply medium and pressure rating before placing the system into service.

Technical Specifications

• Hose ID: 3/8 inch
• Hose Capacity: 50 feet
• Spring Motor Type: Cartridge-style, spring rewind
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Base Construction: One-piece steel, single-pedestal, no-weld
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 61 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: E-MP-350
