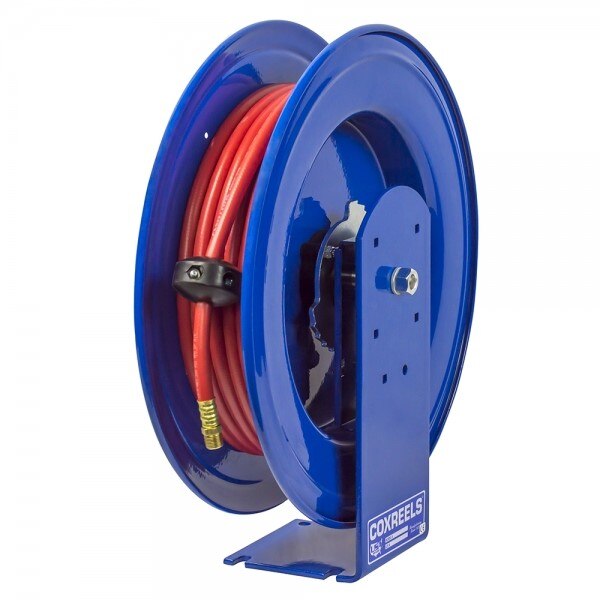

Coxreels E-MP-330 Spring Hose Reel 3/8 Inch Id 30 Foot

Product Description

The COXREELS E-MP-330 is a spring-driven hose reel built for professional multi-bank cabinet systems in demanding trade environments. It accommodates 3/8 inch ID, 5/8 inch OD hose up to 30 feet and retracts automatically via a cartridge-style spring motor. The unit weighs 47 pounds and ships as a single reel assembly. A machined brass 90-degree full-flow NPT swivel, CNC-spun steel discs, and a multi-position lock ratchet mechanism make this a durable, field-serviceable component. Licensed tradespeople in HVAC, plumbing, and industrial service work will find this reel suited for fluid and air delivery applications where organization and reliability matter most.

The E-MP-330 is part of the COXREELS E Series expandable cabinet system, which allows multiple spring-driven reel assemblies to be mounted together in interlocking enclosures. This design is well suited for service bays, mechanical rooms, and shop installations where centralized multimedia delivery from a single organized cabinet is required. The single-pedestal steel base provides a stable mount, and the expandable bank configuration means additional reel assemblies can be added without replacing the entire enclosure.

Key Features

• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• Enclosed, lubricated cartridge-style spring motor is removable for safe field maintenance
• CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Solid one-piece steel base and support post construction with no weld joints for maximum stability
• Expandable interlocking cabinet design supports multiple reel bank systems for organized, professional installations
• CPC powder coat finish is chip-resistant and rust-inhibiting; includes adjustable solid rubber hose stop and lubricated precision bearings

Compatibility

Designed for use within the COXREELS E Series expandable multiple-bank cabinet system; accepts 3/8 inch ID hose up to 30 feet in length. Consult the COXREELS E Series documentation to confirm compatibility with specific cabinet enclosures and reel bank configurations.

Installation Notes

Installation is typically performed by qualified mechanical or HVAC technicians familiar with hose reel mounting and fluid or pneumatic distribution systems. Depressurize and disconnect any supply lines before servicing the swivel or spring motor. Secure the base to a structurally sound surface using appropriately rated fasteners. Follow applicable facility and local mechanical codes when integrating into a compressed air or fluid delivery system.

Technical Specifications

• Hose ID: 3/8 inch
• Hose OD: 5/8 inch
• Hose Length Capacity: 30 feet
• Drive Type: Spring
• Weight: 47 pounds
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Swivel Material: Solid brass
• Base Material: Steel
• Finish: CPC powder coat
• UPC: 674255714946

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: E-MP-330
