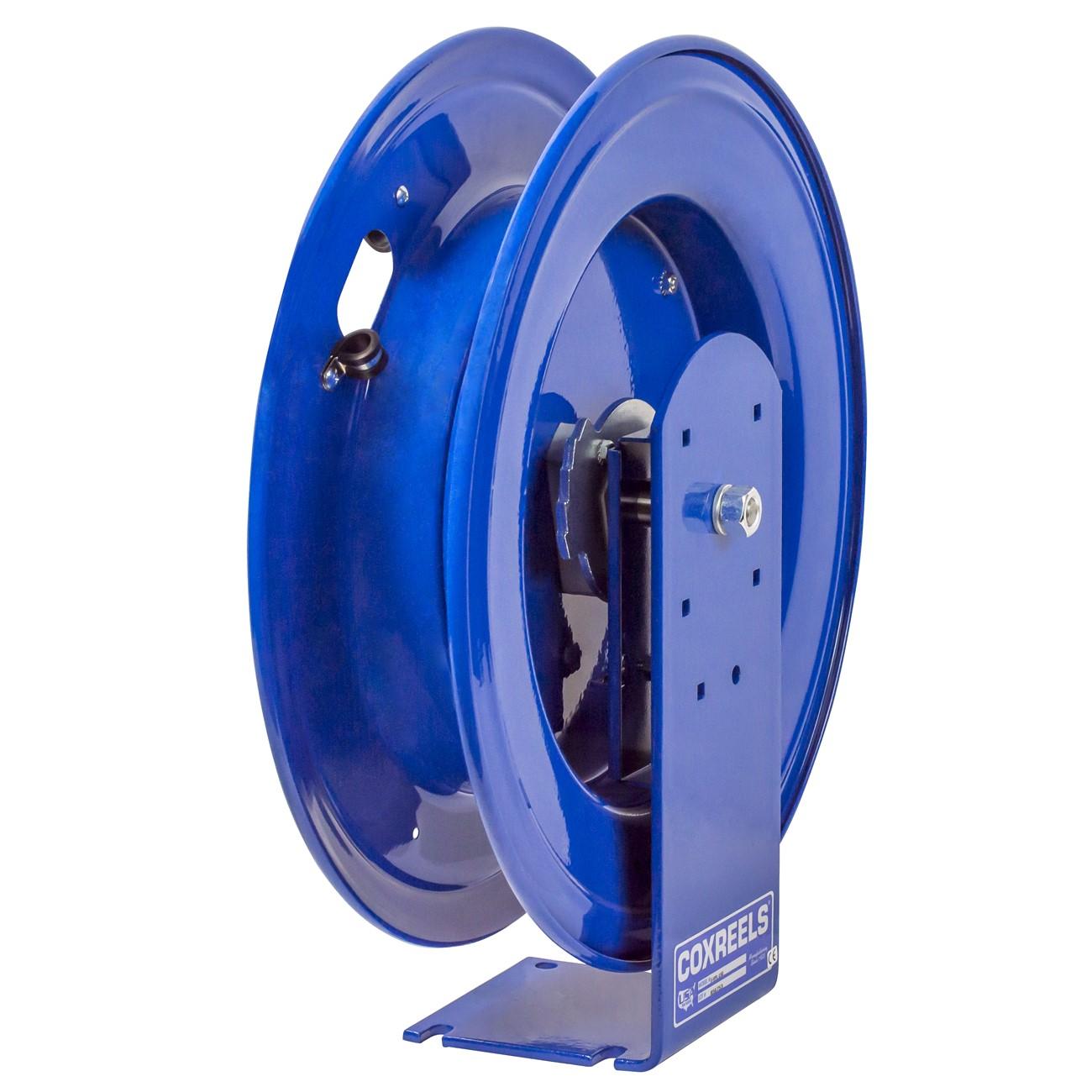

Coxreels E-LPL-450 Spring Driven Hose Reel 1/2 Inch Id 50 Ft

Product Description

The COXREELS E-LPL-450 is a spring-driven hose reel from the E Series expandable bank system lineup, built for professional fluid delivery in demanding shop, service bay, and industrial environments. It accepts hose with a 1/2 inch ID and 3/4 inch OD, with a 50 ft hose capacity. The reel rides on lubricated precision bearings and uses a cartridge-style spring motor that can be removed without taking the reel off its mount. Licensed plumbers, HVAC technicians, fleet mechanics, and industrial maintenance crews are the primary installers and users of this equipment.

The E-LPL-450 is designed for use in multiple-reel bank configurations where organization and professional appearance matter. The interlocking metal cabinet system allows additional reel assemblies to be added as needs grow, making it well suited for service shops, vehicle maintenance facilities, and commercial lube operations that run several fluid or air lines from a single centralized station.

Key Features

• Cartridge-style spring motor is enclosed, lubricated, and removable for maintenance without dismounting the reel
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for increased strength, hose protection, and operator safety
• Solid one-piece steel base and support post construction with no welds for maximum stability
• Multi-position lock ratchet mechanism holds hose at desired extension length
• CPC powder coat finish is chip resistant and rust inhibiting for long service life
• Expandable and interlocking cabinet design supports multi-reel bank configurations

Compatibility

Designed for use with 1/2 inch ID hose up to 50 ft in length and compatible with COXREELS E Series interlocking expandable cabinet bank systems.

Installation Notes

Installation is typically performed by a licensed mechanic, plumber, or qualified maintenance technician. Shut off the fluid supply and depressurize the line before connecting or servicing the swivel and hose fittings. Secure the pedestal base to a stable surface using appropriate fasteners before mounting the reel assembly. Consult local plumbing and mechanical codes for fluid-type-specific connection requirements.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 3/4 inch
• Hose Capacity: 50 ft
• Spring Drive: Cartridge-style enclosed motor
• Swivel: Machined solid brass 90-degree full-flow NPT
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 42 pounds
• Finish: CPC powder coat, chip resistant and rust inhibiting
• UPC: 674255714922

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: E-LPL-450
