Coxreels E-LPL-330 Spring Driven Hose Reel 3/8 Inch Id 30 Ft

Product Description

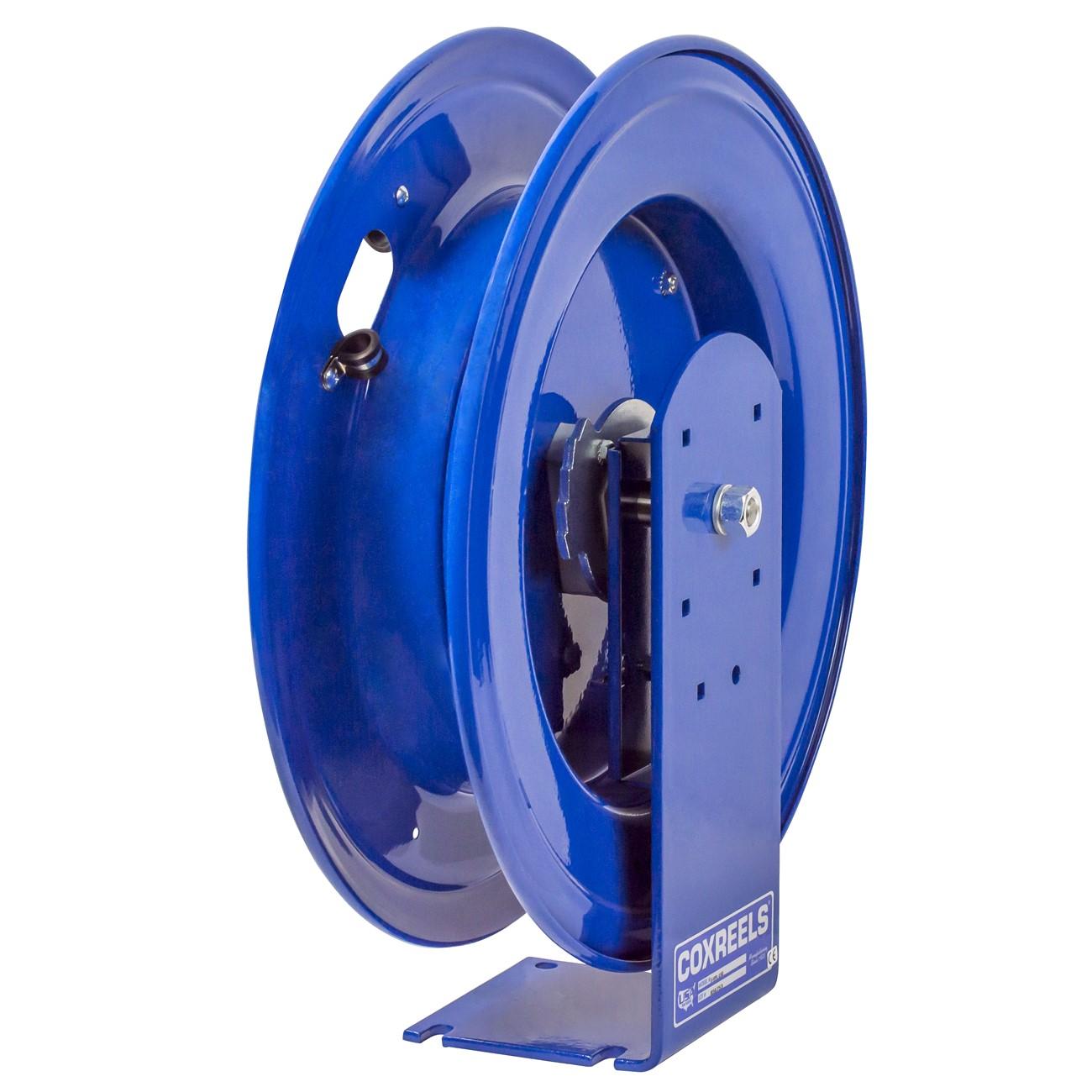

The COXREELS E-LPL-330 is a spring-driven hose reel from the E Series expandable cabinet system, designed for professional multimedia fluid delivery in shop, service bay, and industrial environments. It accommodates hose with a 3/8 inch inner diameter and up to 30 feet in length. The reel is built around a cartridge-style spring motor and a machined brass 90-degree full-flow NPT swivel, allowing hose removal and seal service without dismounting the reel from its installation point. Licensed service professionals and shop technicians are the primary installers of this unit.

The E-LPL-330 is intended for use in expandable metal cabinet bank configurations where multiple spring-driven reels are mounted together for a clean, organized delivery setup. The interlocking cabinet design allows the system to be built out to any number of reels as a service operation grows. Typical applications include automotive service shops, industrial facilities, and professional trade service vehicles or fixed bays requiring organized hose management for air, fluid, or low-pressure line delivery.

Key Features

• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• Enclosed cartridge-style spring motor is pre-lubricated and fully removable for maintenance
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Solid one-piece steel base and support post with no-weld single pedestal construction for maximum stability
• Designed for expandable interlocking metal cabinet bank systems supporting multiple reel assemblies
• CPC powder coat finish is chip-resistant and rust-inhibiting; includes adjustable solid rubber hose stop, multi-position lock ratchet, and lubricated precision bearings

Compatibility

Designed for use within the COXREELS E Series expandable cabinet bank system, compatible with 3/8 inch ID hose up to 30 feet in length.

Installation Notes

Installation is typically performed by a qualified shop technician or industrial maintenance professional. Before mounting or servicing the reel, relieve all line pressure and disconnect the fluid supply. Secure the pedestal base to a stable surface using appropriate fasteners for the mounting substrate. Consult local facility and safety codes for fluid handling and hose reel placement requirements.

Technical Specifications

• Hose Inner Diameter: 3/8 inch
• Hose Outer Diameter: 5/8 inch
• Maximum Hose Length: 30 feet
• Drive Type: Spring driven
• Swivel Material: Solid brass
• Swivel Type: 90-degree full-flow NPT
• Base Material: Steel
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 29 pounds
• UPC: 674255714861

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: E-LPL-330
