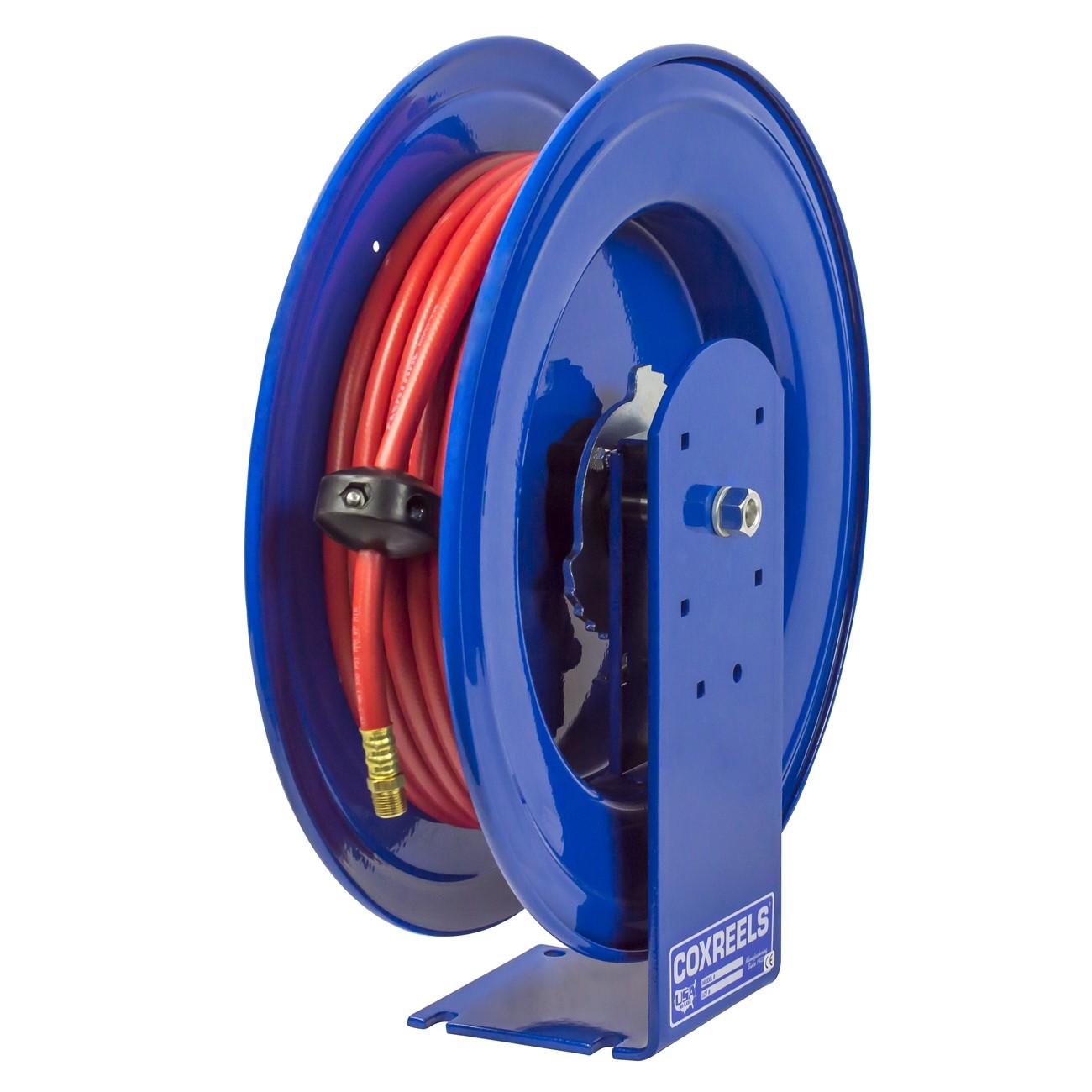

Coxreels E-LP-450 Spring Driven Hose Reel 1/2 in 50 Ft

Product Description

The COXREELS E-LP-450 is a spring-driven hose reel built for the E Series expandable bank system. It accepts hose with a 1/2 inch ID and 3/4 inch OD up to 50 feet in length. The reel is designed for professional multimedia delivery installations where multiple reels must be organized into a single, unified cabinet system. A machined brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount. A lubricated, enclosed cartridge-style motor is field-removable for maintenance. Installers in industrial, commercial, and fleet service environments specify the E-LP-450 when a clean, expandable multi-reel layout is required.

The E-LP-450 is suited for fixed installation in service bays, equipment rooms, and shop environments where spring retraction and organized hose management are required. The reel integrates into the E Series interlocking cabinet system, allowing any number of spring-driven reel assemblies to be combined into a single expandable bank. Typical applications include compressed air, fluid dispensing, and similar trade service lines. The unit ships as a single reel assembly without cabinet enclosure unless ordered as part of a configured bank system.

Key Features

• Spring-driven retraction with multi-position lock ratchet mechanism for controlled hose extension and holding
• Machined solid brass 90-degree full-flow NPT swivel — serviceable without dismounting the reel
• Lubricated enclosed cartridge motor is removable for maintenance without full reel disassembly
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Single-pedestal steel base with one-piece support post and dual axle support for maximum stability
• CPC powder coat finish — chip resistant and rust inhibiting — plus adjustable solid rubber hose stop and lubricated precision bearings

Compatibility

Designed for use within the COXREELS E Series expandable interlocking cabinet and multi-reel bank system. Compatible hose: 1/2 inch ID, 3/4 inch OD, up to 50 feet in length.

Installation Notes

Installation should be performed by a qualified technician familiar with the applicable service medium — compressed air, hydraulic fluid, or similar. De-pressurize and lock out the supply line before mounting or servicing the reel. Fasten to a structurally sound wall, ceiling, or pedestal surface capable of supporting the reel weight plus hose and fluid load. Follow all applicable facility and safety codes for the service medium being conveyed.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 3/4 inch
• Max Hose Length: 50 feet
• Drive Type: Spring driven
• Swivel Material: Solid brass
• Swivel Type: 90-degree full-flow NPT
• Motor Type: Lubricated enclosed cartridge
• Base Material: Steel
• Finish: CPC powder coat
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 50 pounds
• UPC: 674255714786

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: E-LP-450
