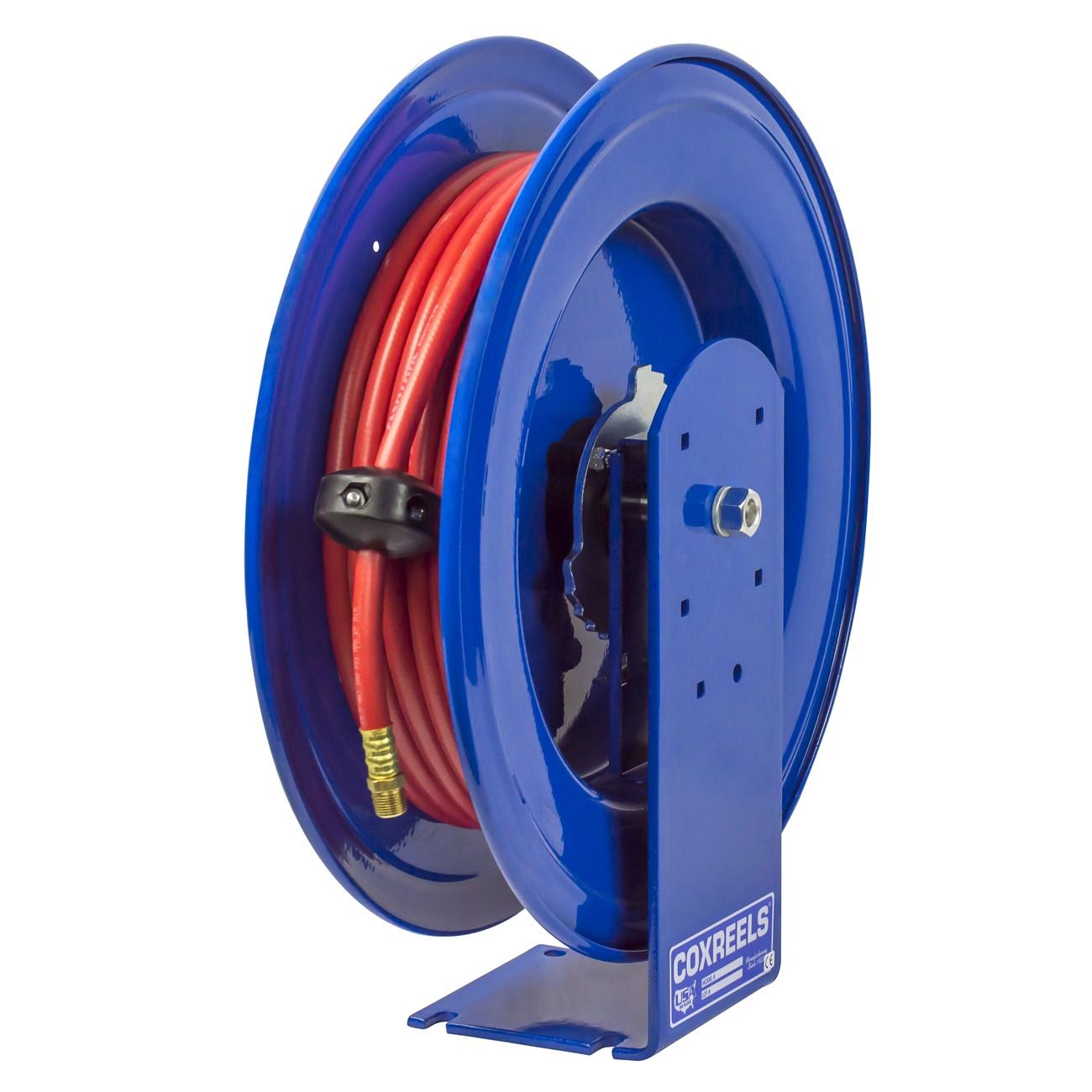

Coxreels E-LP-430 Spring Driven Hose Reel 1/2 in 30 Ft

Product Description

The COXREELS E-LP-430 is a spring-driven hose reel from the E Series line, designed for professional-grade fluid delivery applications in industrial and commercial service environments. The reel accepts 1/2 inch ID hose up to 30 feet in length and retracts automatically via an enclosed cartridge-style spring motor. Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges provide structural strength and protect hose integrity during repeated cycling. The unit weighs 41 pounds and measures 20.5 inches long by 10.5 inches wide by 22 inches tall. Licensed service technicians and facility maintenance professionals are the primary installers of this type of equipment.

The E-LP-430 is suited for workshop, service bay, and light industrial installations where a self-retracting hose reel is needed for air, water, or compatible fluid lines. The E Series cabinet design is expandable, allowing multiple reel assemblies to be interlocked into a single organized bank system. This makes the E-LP-430 a practical choice for multi-bay service facilities requiring a clean, uniform appearance across multiple delivery points.

Key Features

• Spring-driven cartridge motor is enclosed, lubricated, and removable for maintenance without pulling the reel from its mount
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service in place
• CNC robotically spun and ribbed discs with rolled edges for added strength and hose protection
• Single-pedestal steel base with one-piece support post, no-weld construction, and dual axle support for stability
• Multi-position lock ratchet mechanism holds hose at any extended length
• CPC powder coat finish provides chip resistance and rust inhibition
• Adjustable solid rubber hose stop and lubricated precision bearings included

Compatibility

Designed for use with 1/2 inch ID hose up to 30 feet in length. The E Series expandable cabinet system allows this reel to integrate into multi-reel bank configurations using interlocking metal cabinet enclosures.

Installation Notes

Installation is typically performed by qualified maintenance or service technicians. Shut off and depressurize the supply line before mounting or servicing the reel. The swivel and cartridge motor are designed for in-place service, so full removal from the mounting surface is not required for routine maintenance. Follow applicable facility codes and manufacturer torque guidance when securing the mounting pedestal base.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 3/4 inch
• Hose Capacity: 30 feet
• Drive Type: Spring driven
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 41 pounds
• Swivel Material: Solid brass
• Finish: CPC powder coat
• UOM: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: E-LP-430
