Coxreels E-HPL-350 Hose Reel 3/8 in 50 Ft Steel

Product Description

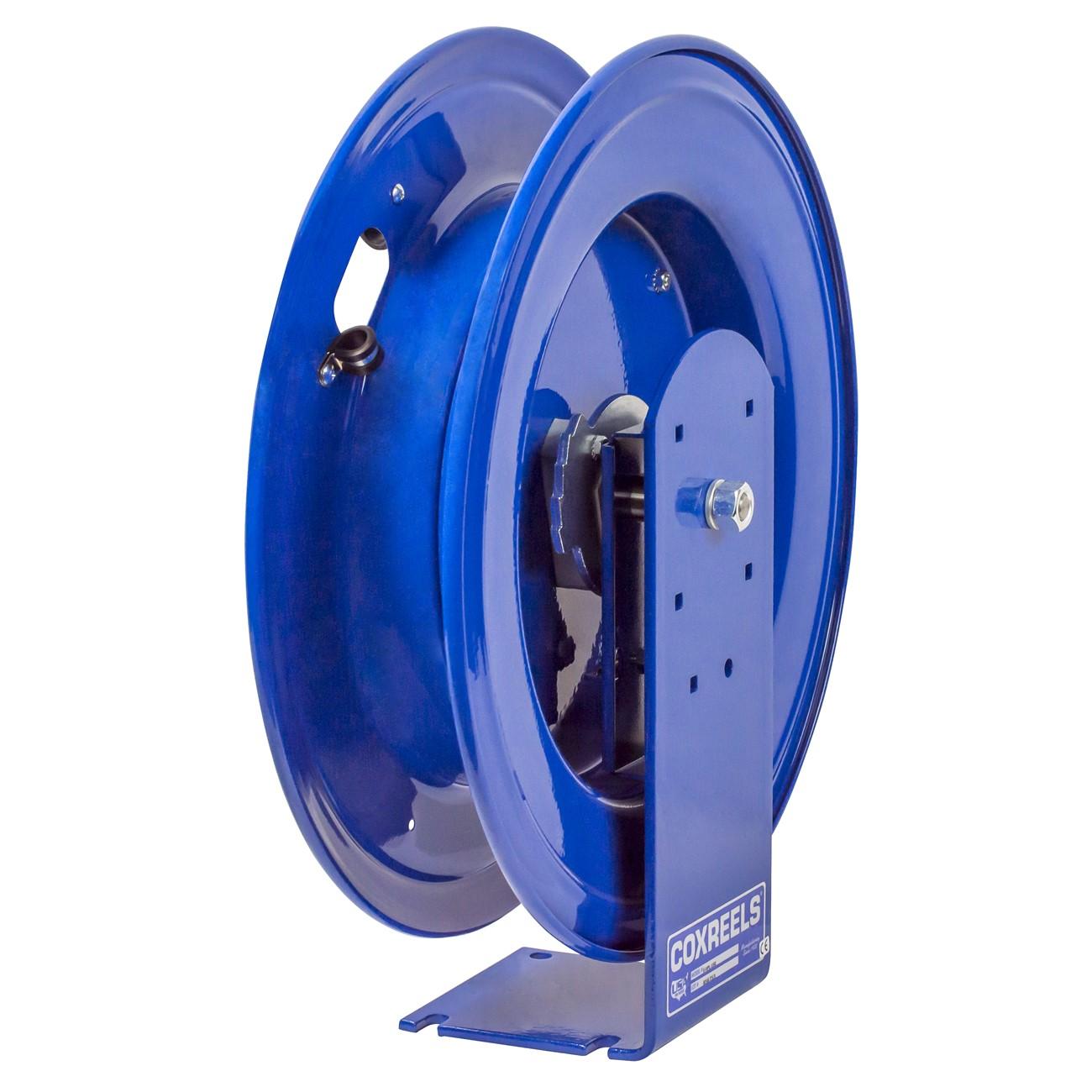

The COXREELS E-HPL-350 is a spring-driven hose reel from the E Series expandable bank system, designed for professional-grade multimedia delivery in shop, fleet, and service bay environments. Built around a solid one-piece steel base with a single pedestal support post, the reel accepts 3/8 inch ID, 11/16 inch OD hose up to 50 feet in length. Key components include a machined zinc-plated steel NPT swivel, a removable cartridge-style motor, and CNC robotically spun ribbed steel discs with rolled edges. Licensed trade professionals and service technicians are the primary installers and operators of this unit.

The E-HPL-350 is suited for commercial and industrial service environments where multiple reels must be organized into a single, expandable cabinet system. The E Series interlocking cabinet design allows any number of spring-driven reel assemblies to be combined into one custom bank, making it a practical solution for garages, fleet service facilities, and multi-bay shops that require consistent hose management across several work stations. The reel is rated for use with standard 3/8 inch hose connections and is compatible with the COXREELS E Series expandable metal cabinet enclosures.

Key Features

• Spring-driven retraction with a multi-position lock ratchet mechanism for controlled hose positioning
• Machined zinc-plated steel 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Removable lubricated cartridge-style motor simplifies maintenance and reduces downtime
• CNC robotically spun and ribbed steel discs with rolled edges provide hose protection and operator safety
• Solid one-piece steel base with single pedestal support post and no-weld construction for maximum stability
• CPC powder coat finish is chip-resistant and rust-inhibiting; adjustable solid rubber hose stop included

Compatibility

Designed for use within the COXREELS E Series expandable multiple-reel bank system; compatible with E Series interlocking metal cabinet enclosures for multi-reel configurations.

Installation Notes

Installation is typically performed by qualified service technicians or maintenance professionals. Ensure the mounting surface is capable of supporting the reel weight plus the loaded hose before securing the base. Depressurize and disconnect the supply line before performing any maintenance on the swivel, cartridge motor, or hose connections. Follow applicable OSHA and facility safety guidelines when mounting reels in overhead or elevated positions.

Technical Specifications

• Hose Inside Diameter: 3/8 inches
• Hose Outside Diameter: 11/16 inches
• Hose Capacity: 50 feet
• Drive Type: Spring driven
• Material: Steel
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 49 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: E-HPL-350
