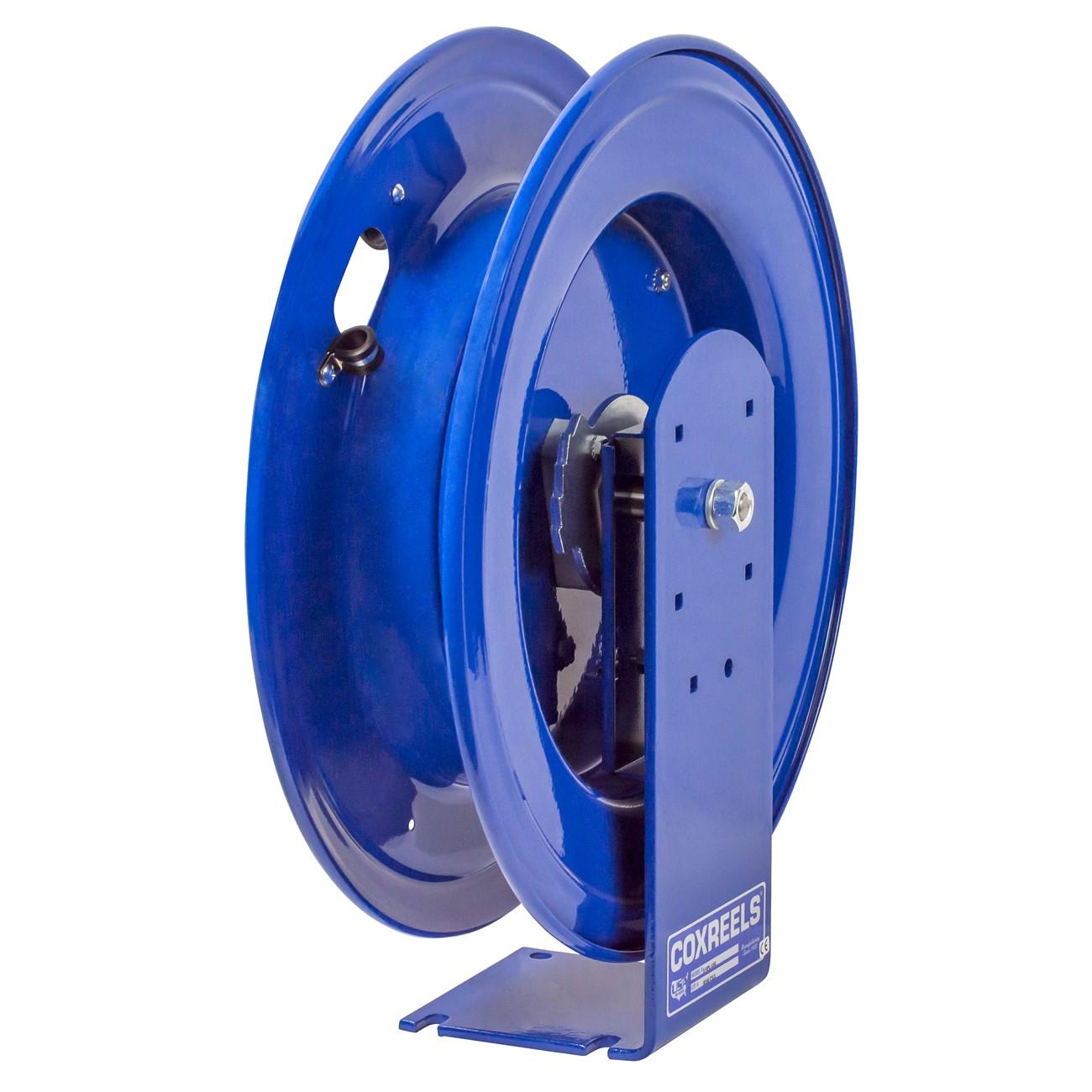

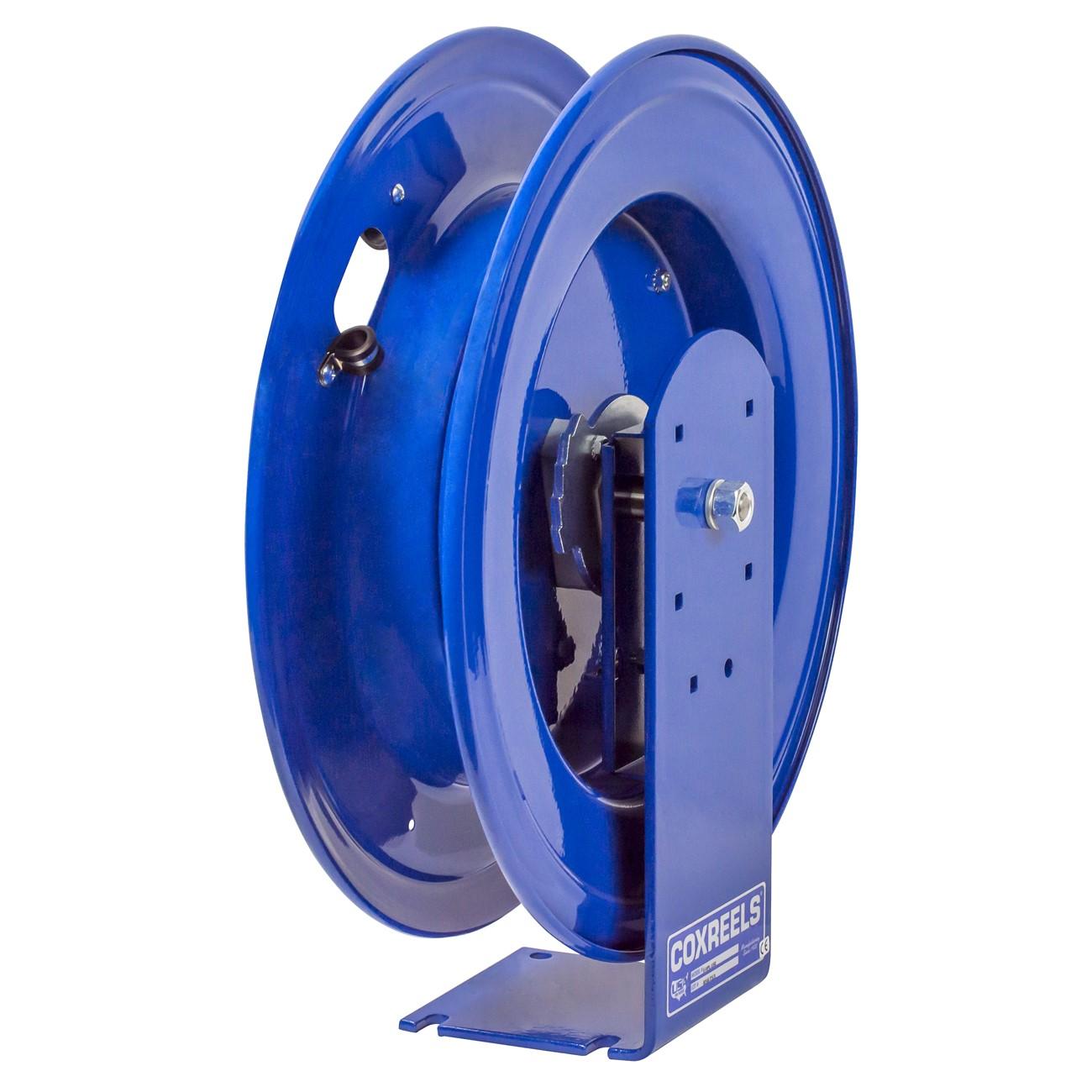

Coxreels E-HPL-130 Spring Driven Hose Reel 30 Ft Steel

Product Description

The COXREELS E-HPL-130 is a spring-driven hose reel built for professional fluid and compressed-air delivery in demanding trade environments. Engineered as part of the COXREELS E Series expandable bank system, it accommodates 1/4-inch ID, 9/16-inch OD hose up to 30 feet in length. The reel is constructed with heavy-duty CNC robotically spun steel discs and a solid one-piece steel base, giving it the structural rigidity required for daily service use. A multi-position lock ratchet mechanism controls hose extension, and a machined zinc-plated steel swivel provides full-flow NPT connection without requiring reel removal from its mount. At 39 pounds, this unit is substantial enough for permanent installation in service bays, shops, and fleet maintenance facilities.

The E-HPL-130 is designed for installation in commercial and industrial service environments where organized, multi-reel hose delivery is required. Its interlocking cabinet design allows it to be paired with additional E Series reel assemblies to build expandable bank systems, making it well suited for automotive shops, HVAC service facilities, plumbing supply stations, and similar professional settings. A licensed technician or experienced installer typically handles the mounting and plumbing connections during initial setup.

Key Features

• Spring-driven retraction with multi-position lock ratchet mechanism for controlled hose positioning
• Machined zinc-plated steel 90-degree full-flow NPT swivel allows seal maintenance without removing reel from mount
• Enclosed, lubricated cartridge-style motor is removable for safe and convenient maintenance
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength, hose protection, and operator safety
• Solid one-piece steel base and support post with dual axle support for maximum stability
• Expandable interlocking cabinet design supports multi-reel bank configurations
• CPC powder coat finish is chip resistant and rust inhibiting; adjustable solid rubber hose stop included

Compatibility

Designed as part of the COXREELS E Series expandable bank system; compatible with interlocking E Series cabinet enclosures for multi-reel configurations accommodating 1/4-inch ID hose.

Installation Notes

Installation is typically performed by a licensed plumber, HVAC technician, or qualified mechanical contractor. Shut off the compressed air or fluid supply completely before making or breaking any hose or swivel connections. Verify that the mounting surface and fastener hardware are rated for the combined weight of the reel, hose, and working fluid load. Consult applicable local mechanical codes and the manufacturer installation guide before commissioning the unit.

Technical Specifications

• Hose Inside Diameter: 1/4 inch
• Hose Outside Diameter: 9/16 inch
• Hose Length: 30 feet
• Drive Type: Spring driven
• Material: Steel
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 39 pounds
• Swivel Connection: NPT full-flow zinc-plated steel
• Finish: CPC powder coat

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: E-HPL-130
