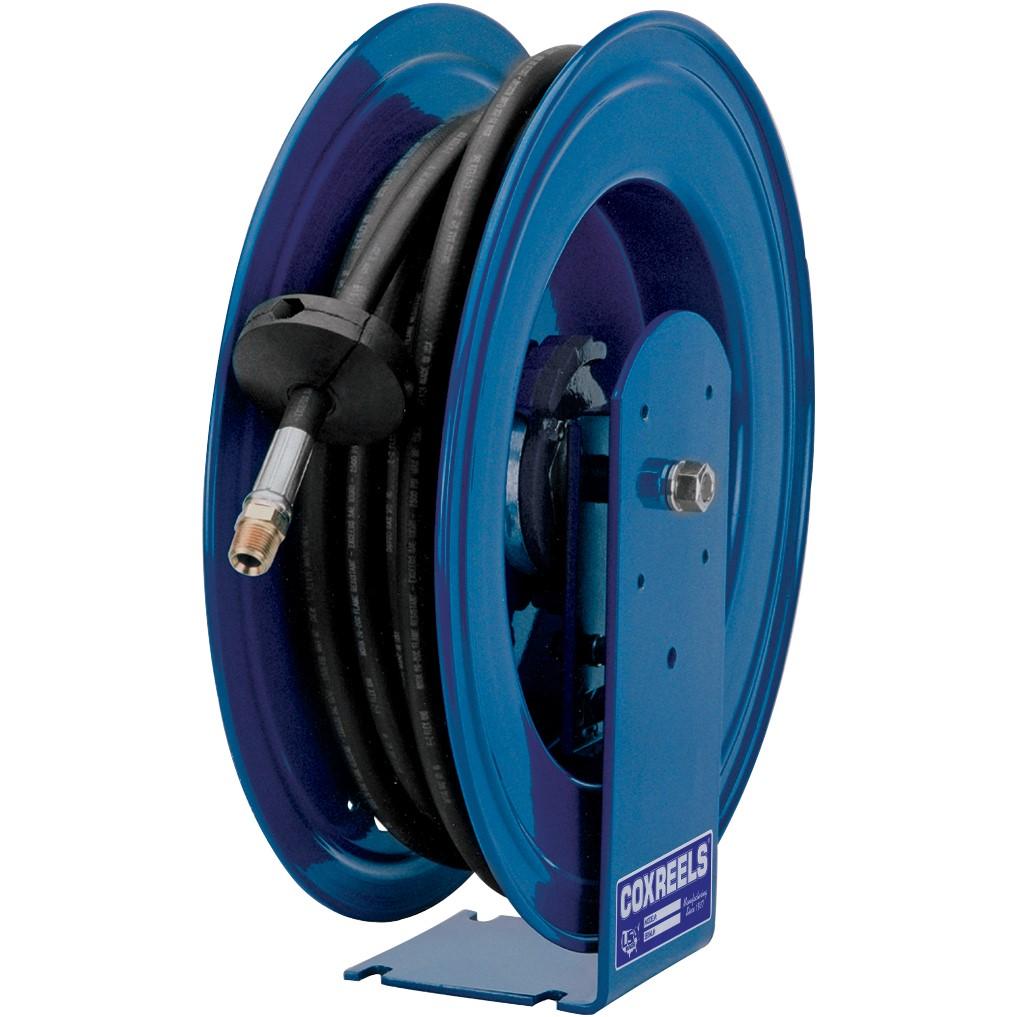

Coxreels E-HP-350 Hose Reel 3/8 in 50 Ft Steel

Product Description

The COXREELS E-HP-350 is a spring-driven hose reel built for heavy-duty professional use in industrial, mechanical, and service shop environments. Part of the COXREELS E Series expandable bank system, this reel accepts 3/8-inch ID hose up to 50 feet in length and is constructed with a solid one-piece steel base for maximum stability. The unit ships at 61 pounds and features a CNC robotically spun and ribbed disc design with rolled edges that protect both the hose and the operator. A chip-resistant, rust-inhibiting CPC powder coat finish keeps the reel serviceable in demanding shop conditions.

The E-HP-350 is designed for professional installation in fixed service bays, mechanical shops, and similar high-use environments where organized, reliable hose management is required. The E Series interlocking cabinet system allows this reel to be combined with additional reel assemblies into a multi-bank configuration, making it a practical solution for shops that need multimedia delivery from a single organized installation. It is suited for use by industrial maintenance technicians, automotive service professionals, and fleet service operators.

Key Features

• Spring-driven retraction with a multi-position lock ratchet mechanism for controlled hose extension and retrieval
• Machined zinc-plated steel 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Lubricated and enclosed cartridge-style motor is removable for safe, convenient maintenance
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection, strength, and operator safety
• Solid one-piece steel base and support post with no-weld construction and dual axle support for maximum stability
• Expandable interlocking metal cabinet design supports multiple reel bank configurations for professional organization
• CPC powder coat finish is chip-resistant and rust-inhibiting for long service life

Compatibility

Designed as an OEM-style replacement and direct-fit unit within the COXREELS E Series expandable multiple reel bank system, accommodating 3/8-inch ID hose up to 50 feet in length.

Installation Notes

Installation should be performed by a qualified technician familiar with fixed hose reel mounting requirements. Shut off all supply pressure to the line before installation or servicing. Secure the reel to a structural surface capable of supporting the unit weight plus the load of a pressurized hose. Refer to local and facility codes for compressed fluid or air line installations before putting the system into service.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 11/16 inches
• Hose Length: 50 feet
• Drive Type: Spring driven
• Material: Steel
• Finish: CPC powder coat
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 61 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: E-HP-350
