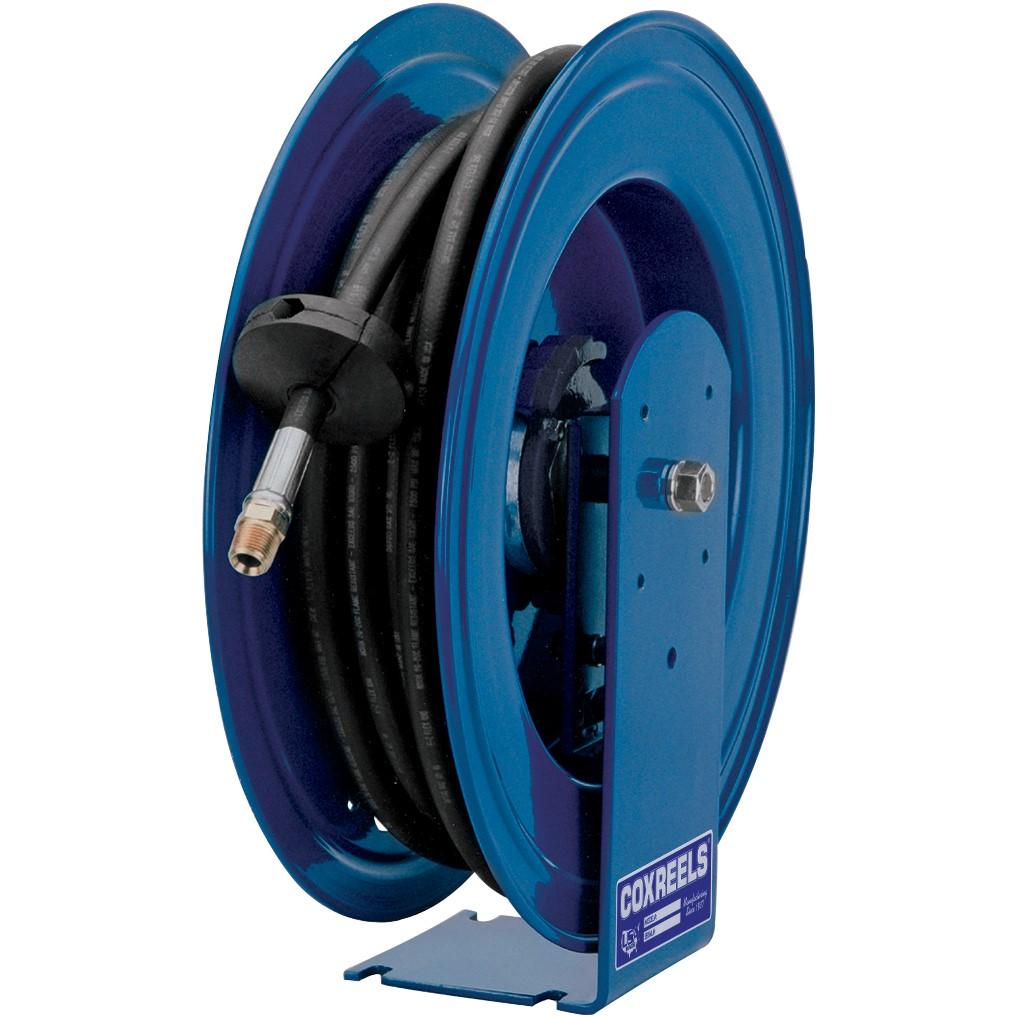

Coxreels E-HP-150 Spring Retractable Hose Reel 50 Ft

Product Description

The COXREELS E-HP-150 is a spring-driven, retractable hose reel from the E Series line, engineered for professional-grade fluid delivery in demanding trade environments. Built on a solid one-piece steel base with a single-pedestal design, this reel accepts 1/4 inch ID hose up to 50 feet in length. The cartridge-style spring motor is fully enclosed and lubricated, allowing safe removal for maintenance without disrupting the entire installation. A machined zinc-plated steel NPT swivel supports full-flow connection and eliminates the need to remove the reel from its mount during hose changes. Licensed HVAC technicians, plumbers, and service pros rely on this unit for organized, repeatable hose deployment at fixed service stations.

The E-HP-150 is designed for use in professional shop environments, service bays, and multi-reel bank cabinet installations. Its interlocking, expandable cabinet system allows multiple spring-driven reel assemblies to be grouped together for organized multimedia delivery. This makes it a practical fit for vehicle service facilities, industrial maintenance shops, or any fixed workstation requiring consistent hose management. The reel ships as a single unit and can be integrated into a larger E Series bank configuration as the operation grows.

Key Features

• Spring-driven cartridge motor is enclosed, lubricated, and removable for maintenance without unmounting the reel
• Machined zinc-plated steel 90-degree full-flow NPT swivel allows hose installation and seal service in place
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Solid one-piece steel base with no-weld single-pedestal design and dual axle support for maximum stability
• Multi-position lock ratchet mechanism holds hose at any extended length
• CPC powder coat finish is chip-resistant and rust-inhibiting for long service life
• Expandable cabinet-compatible design supports multi-reel bank system configurations

Compatibility

Designed as an OEM-style component for COXREELS E Series expandable bank cabinet systems, accommodating 1/4 inch ID hose up to 50 feet in length.

Installation Notes

Installation and servicing should be performed by a qualified technician familiar with pressurized fluid delivery systems. Depressurize and drain the supply line fully before mounting or performing maintenance on the reel assembly. Secure the base to a stable surface using appropriate hardware rated for the load. Follow applicable facility safety codes and manufacturer torque guidance for swivel and inlet fittings.

Technical Specifications

• Hose ID: 1/4 inch
• Hose OD: 9/16 inch
• Hose Capacity: 50 feet
• Retraction Type: Spring-driven
• Base Material: Steel
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 60 pounds
• UPC: 674255714380

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: E-HP-150
