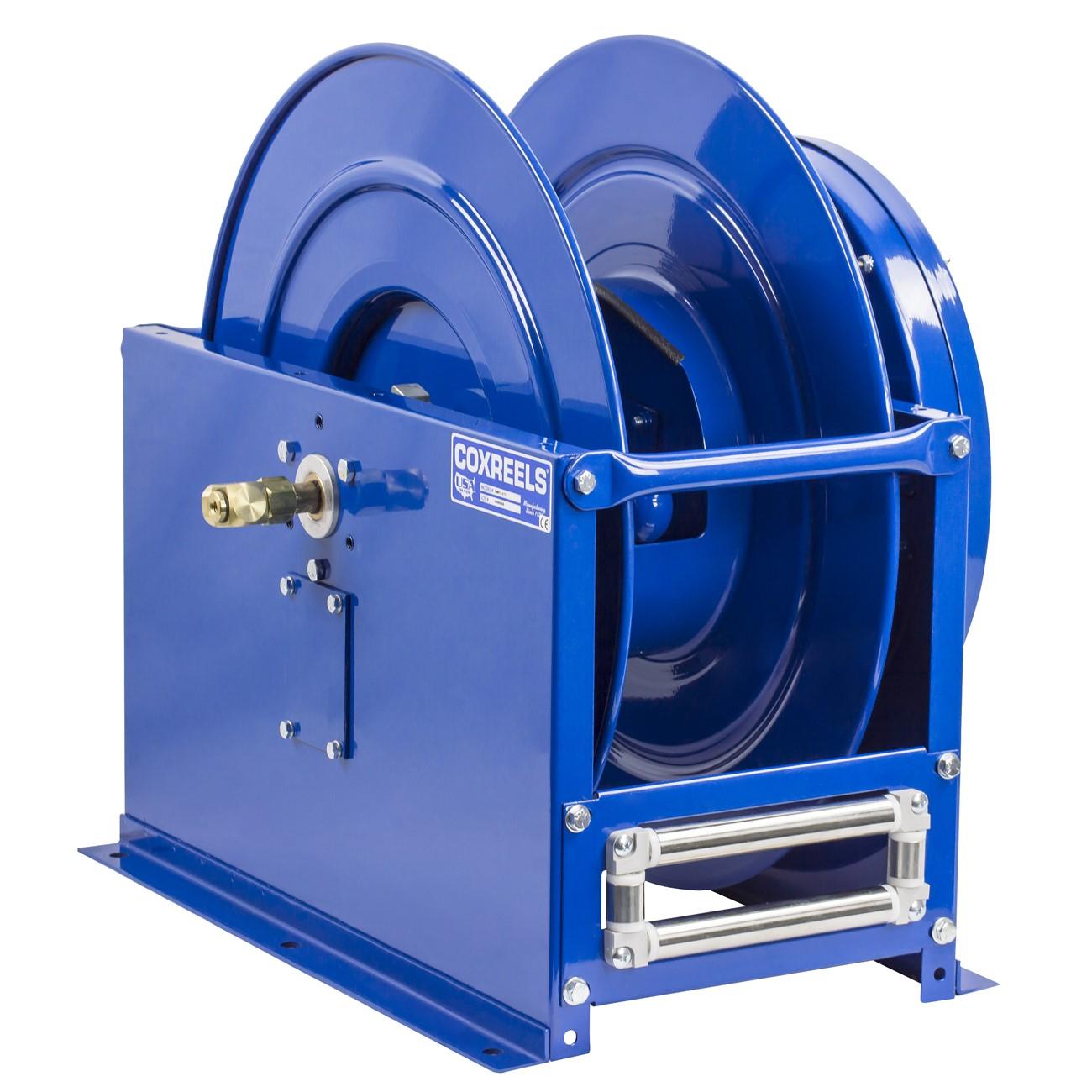

Coxreels DMPL-450 Dual Product Spring Driven Hose Reel

Product Description

The COXREELS DMPL-450 is a dual product, spring driven hose reel from the DP Series, engineered for applications that require simultaneous delivery through two separate hose lines. It features two swivel inlets and two outlets, making it a direct fit for jobs where large-volume fluid delivery at low to medium pressures is required. The steel box-style frame incorporates heavy duty cross supports to all four corners, providing the structural rigidity needed for demanding shop, fleet, or service bay environments. Licensed technicians and service professionals across lubrication, hydraulic fluid, and industrial fluid distribution will find this reel built for sustained daily use.

The DMPL-450 is suited for commercial and industrial fluid service operations where dual-product dispensing from a single reel saves time and reduces equipment footprint. Typical installations include service bays, lube centers, and fleet maintenance facilities handling two fluid types simultaneously. The 1/2 inch ID hose path and 50 foot hose capacity support high-volume delivery runs in both fixed and mobile service configurations.

Key Features

• Two external fluid paths with machined solid brass 90-degree full-flow NPT swivel inlets for simple seal maintenance without removing the reel from its mount
• Lubricated and enclosed cartridge-style spring motor is removable for maintenance without full disassembly
• Heavy duty CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and operator safety
• Reinforced steel box-style frame with dual inlets and outlets engineered for dual hose load handling
• Exclusive low-profile outlet riser and open drum slot design prevents hose crimping and promotes flat, smooth hose wrap
• CPC powder coat finish with stainless steel pinch-proof rollers, stainless steel pawl spring, and self-lubricated flange bearings for long service life

Compatibility

Designed for use with 1/2 inch ID hose at 15/16 inch OD up to 50 feet in length, in dual-product low to medium pressure fluid delivery applications typical of industrial and commercial service environments.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid distribution systems and applicable OSHA and local safety codes. Shut off and depressurize all fluid supply lines before mounting or servicing the reel. The swivel inlets are designed to allow hose connection and seal service without dismounting the unit. Ensure the mounting surface and fasteners are rated to support the reel weight with hose fully loaded.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 15/16 inch
• Hose Length Capacity: 50 feet
• Frame Material: Steel
• Drive Type: Spring Driven
• Inlets: 2 swivel NPT brass inlets
• Outlets: 2
• Length: 25.5 inches
• Width: 22 inches
• Height: 22 inches
• Weight: 102 pounds
• UPC: 674255814332

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: DMPL-450
