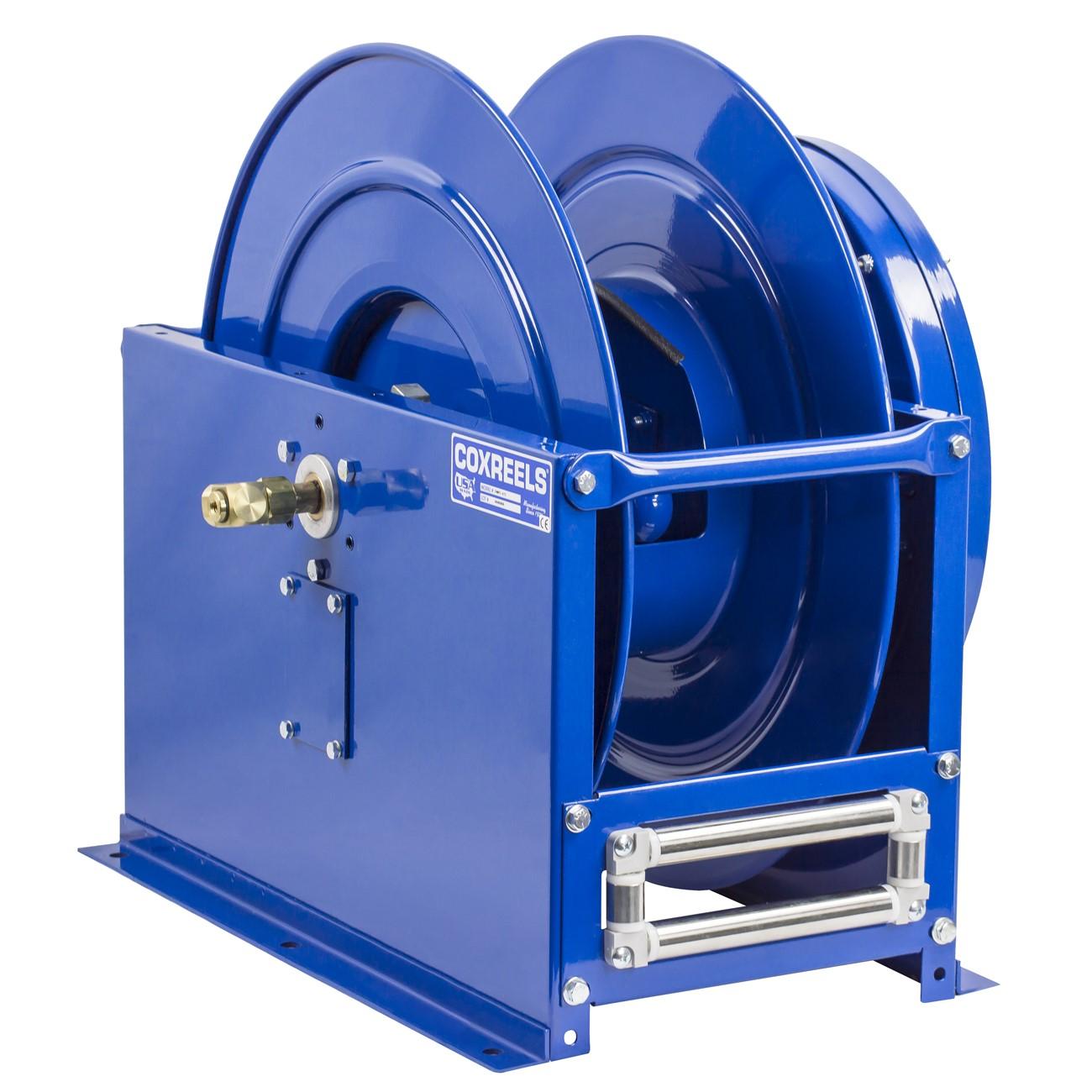

Coxreels DMPL-350 Dual Product Hose Reel 3/8 in 50 Ft Steel

Product Description

The COXREELS DMPL-350 is a spring-driven, dual product delivery hose reel built for trade professionals who need to run two hoses simultaneously from a single reel. Part of the COXREELS DP Series, it features two swivel inlets and two outlets, making it suited for high-volume, low-to-medium pressure applications. The reel is constructed with a heavy-duty steel box-style frame reinforced with steel cross supports at all four corners. CNC robotically spun and ribbed discs with rolled edges add structural strength while protecting the hose and the operator. A CPC powder coat finish resists chips and rust for long service life.

This reel is designed for demanding industrial and commercial environments where dual hose delivery is required. Typical applications include lubrication systems, fluid transfer, and similar service scenarios requiring simultaneous delivery of two products at low to medium pressures. The 3/8 inch inner diameter hose path and 50 foot hose capacity make it a practical choice for shop floor, fleet service, and industrial maintenance operations. A licensed technician or trained service professional handles installation and mounting.

Key Features

• Two external fluid paths with machined solid brass 90-degree full-flow NPT swivel inlets for easy seal maintenance and hose installation without removing the reel from its mount
• Cartridge-style motor is lubricated, enclosed, and fully removable for safe and convenient field maintenance
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, hose protection, and operator safety
• Reinforced steel box-style frame with two inlets and two outlets engineered for dual hose applications
• Exclusive low-profile outlet riser and open drum slot design delivers a non-crimping, flat smooth hose wrap
• Stainless steel pinch-proof rollers, stainless steel pawl spring, and self-lubricated flange bearings for long-term reliability

Compatibility

Designed as an OEM-style dual product spring-driven hose reel for low-to-medium pressure fluid delivery systems requiring dual hose capability with 3/8 inch ID hose.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid delivery and hose reel mounting procedures. Shut off and depressurize all fluid supply lines before mounting or servicing the reel. Secure the reel to a stable surface rated for the combined weight of the unit and filled hose. Verify all NPT inlet and outlet connections are properly sealed and leak-tested before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 3/8 inches
• Hose Outer Diameter: 13/16 inches
• Hose Length Capacity: 50 feet
• Drive Type: Spring Driven
• Frame Material: Steel
• Finish: CPC Powder Coat
• Swivel Inlets: Two solid brass 90-degree full-flow NPT
• Length: 25.5 inches
• Width: 22 inches
• Height: 22 inches
• Weight: 99 pounds
• UPC: 674255814301

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: DMPL-350
