Coxreels DMPL-3100 Dual Product Hose Reel 3/8 in 100 Ft

Product Description

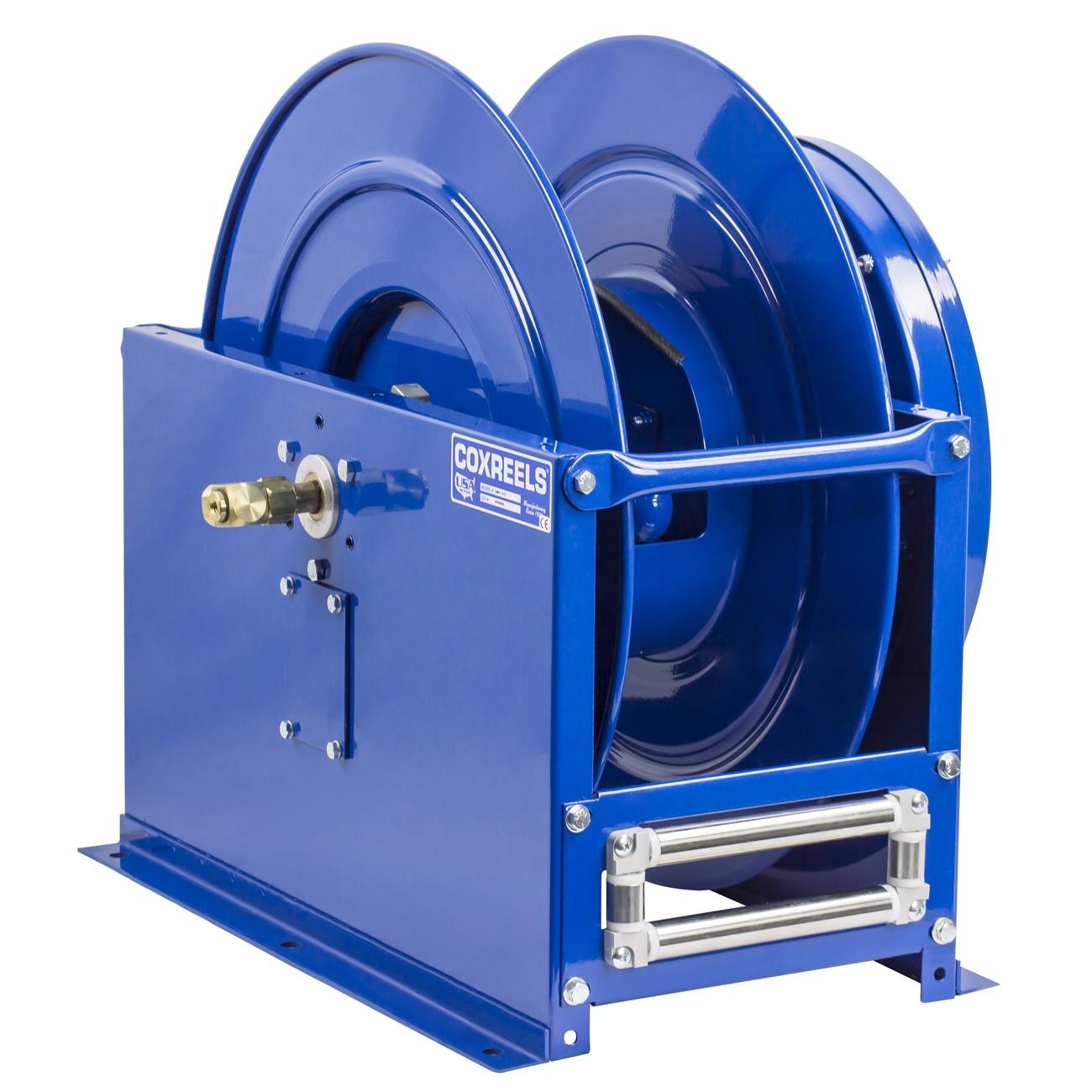

The COXREELS DMPL-3100 is a spring-driven dual product hose reel from the DP Series, designed to deliver two fluid streams simultaneously through a single reel unit. It accepts two separate hose lines with 3/8-inch inner diameter and accommodates up to 100 feet of hose per channel. The box-style steel frame features heavy-duty cross supports at all four corners, providing the structural rigidity required for demanding low- and medium-pressure delivery applications. Licensed HVAC technicians, plumbers, and fluid-handling service professionals install this reel in environments where dual-product delivery and reliable spring retraction are required.

The DMPL-3100 is suited for industrial and commercial service applications where two fluid products must be dispensed or circulated from a single mounting point. Typical installations include lubrication systems, fluid transfer stations, and multi-product service bays. The spring-driven retraction mechanism keeps hose off the floor and under consistent tension. The low-profile outlet riser and open drum slot design promote a flat, non-crimping hose wrap, reducing wear over extended service cycles.

Key Features

• Dual external fluid paths with machined solid brass 90-degree full-flow NPT swivel inlets for straightforward seal maintenance without removing the reel from its mount
• Lubricated and enclosed cartridge-style retraction motor is fully removable for safe, convenient field maintenance
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for increased strength, hose protection, and operator safety
• Reinforced steel box-style frame with two inlets and two outlets engineered specifically for dual hose applications
• Exclusive low-profile outlet riser and open drum slot design promotes non-crimping, flat smooth hose wrap
• CPC powder coat finish resists chips and rust; stainless steel pinch-proof rollers, stainless steel pawl spring, and self-lubricated flange bearings included

Compatibility

Designed as an OEM-style replacement or direct installation reel for dual-product fluid delivery systems using 3/8-inch ID hose in low- and medium-pressure service applications.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid transfer systems and applicable plumbing or mechanical codes. Shut off and depressurize all fluid lines before mounting or servicing the reel. Verify that the mounting surface and fasteners are rated for the combined weight of the reel and fully loaded hose. Do not exceed the rated working pressure for the installed hose and fittings.

Technical Specifications

• Hose Inner Diameter: 3/8 inches
• Hose Length Capacity: 100 feet
• Drive Type: Spring driven
• Number of Fluid Paths: 2 (dual product)
• Frame Material: Steel
• Length: 33.5 inches
• Width: 22 inches
• Height: 25.75 inches
• Weight: 120 pounds
• UPC: 674255814295

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: DMPL-3100
