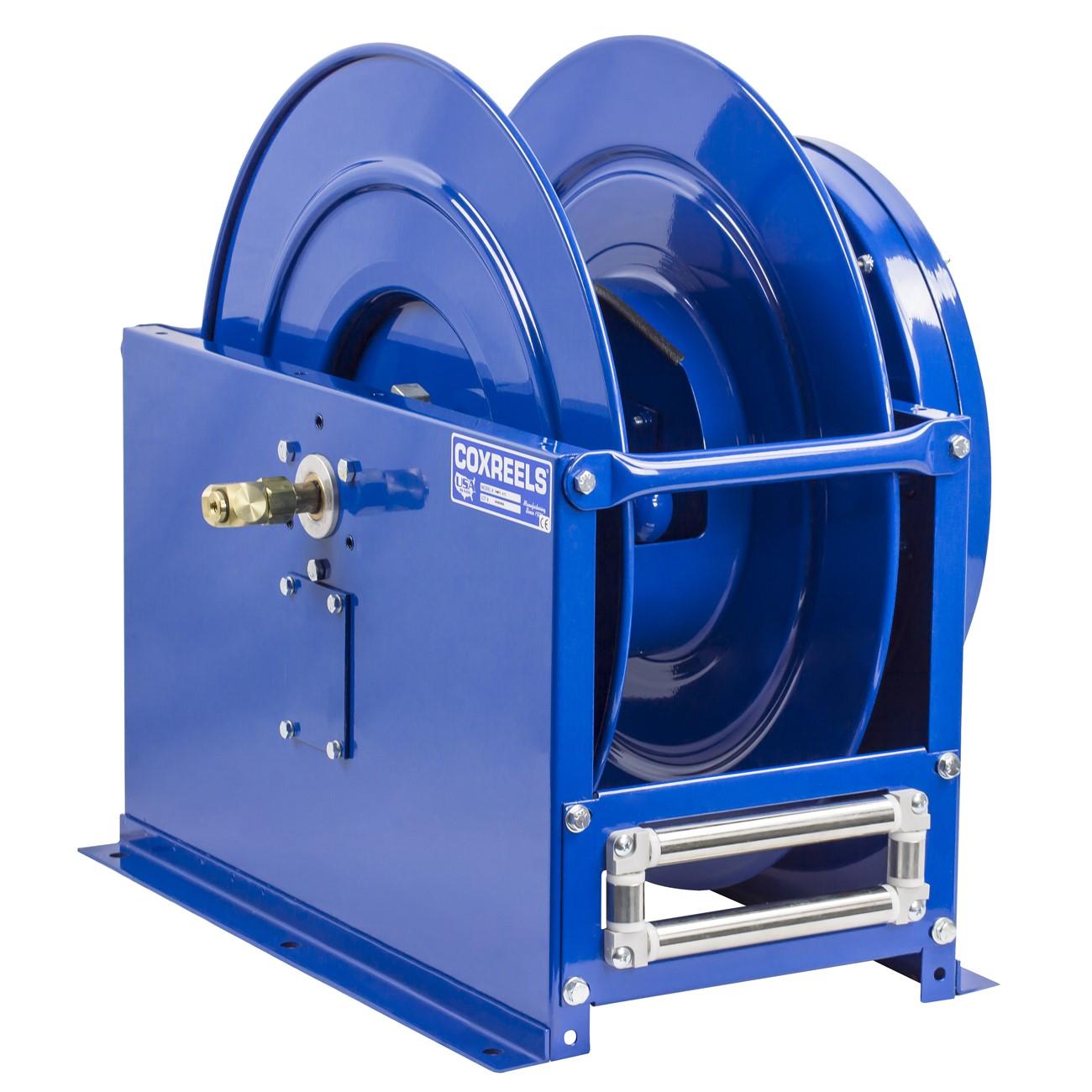

Coxreels DLPL-550 Dual Product Spring Driven Hose Reel

Product Description

The COXREELS DLPL-550 is a DP Series dual product delivery spring-driven hose reel designed for trade and industrial applications requiring simultaneous delivery of two fluid lines. It features two swivel inlets and two outlets, allowing dual hose operation from a single reel. The reel accepts hose with a 3/4 inch ID and 1-1/4 inch OD, with a 50-foot hose length capacity. Built on a reinforced steel box-style frame, the DLPL-550 is engineered for high-volume delivery in low to medium pressure service. Licensed contractors and industrial service technicians working with dual-fluid dispensing systems are the primary installers.

The DLPL-550 is suited for fixed or mobile service bays, fleet maintenance facilities, industrial plants, and similar environments where dual-product delivery is required. Its spring-driven retraction mechanism makes it practical for high-cycle use in both stationary and portable mount configurations. The box-style frame includes heavy-duty steel cross supports at all four corners, adding rigidity in demanding work environments. Applications include lubrication systems, fluid transfer, and similar low-to-medium pressure dual-hose service work.

Key Features

• Two machined solid brass 90-degree full-flow NPT swivel inlets allow seal maintenance and hose installation without removing the reel from its mount
• Lubricated and enclosed cartridge-style spring motor is removable for safe servicing
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and hose protection
• Exclusive low-profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap
• Heavy-duty stainless steel pinch-proof rollers and stainless steel pawl spring for long service life
• CPC powder coat finish resists chips and rust for extended outdoor or shop use

Compatibility

Designed as an OEM-style dual product hose reel for low to medium pressure dual-hose fluid delivery applications in industrial and commercial service environments.

Installation Notes

Installation is typically performed by qualified mechanics or industrial maintenance technicians. Shut off all fluid supply lines and relieve system pressure before mounting or servicing the reel. Secure the reel to a structurally sound surface rated for the combined weight of the unit and fluid-filled hoses. Verify all NPT inlet and outlet fittings are thread-sealed and torqued per the fitting manufacturer guidelines before returning the system to service.

Technical Specifications

• Hose ID: 3/4 inch
• Hose OD: 1-1/4 inch
• Hose Length Capacity: 50 feet
Drive Type: Spring driven
• Inlets: Two NPT swivel inlets
• Outlets: Two
• Frame Material: Steel
• Length: 25.5 inches
• Width: 22 inches
• Height: 22 inches
• Weight: 100 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: DLPL-550
