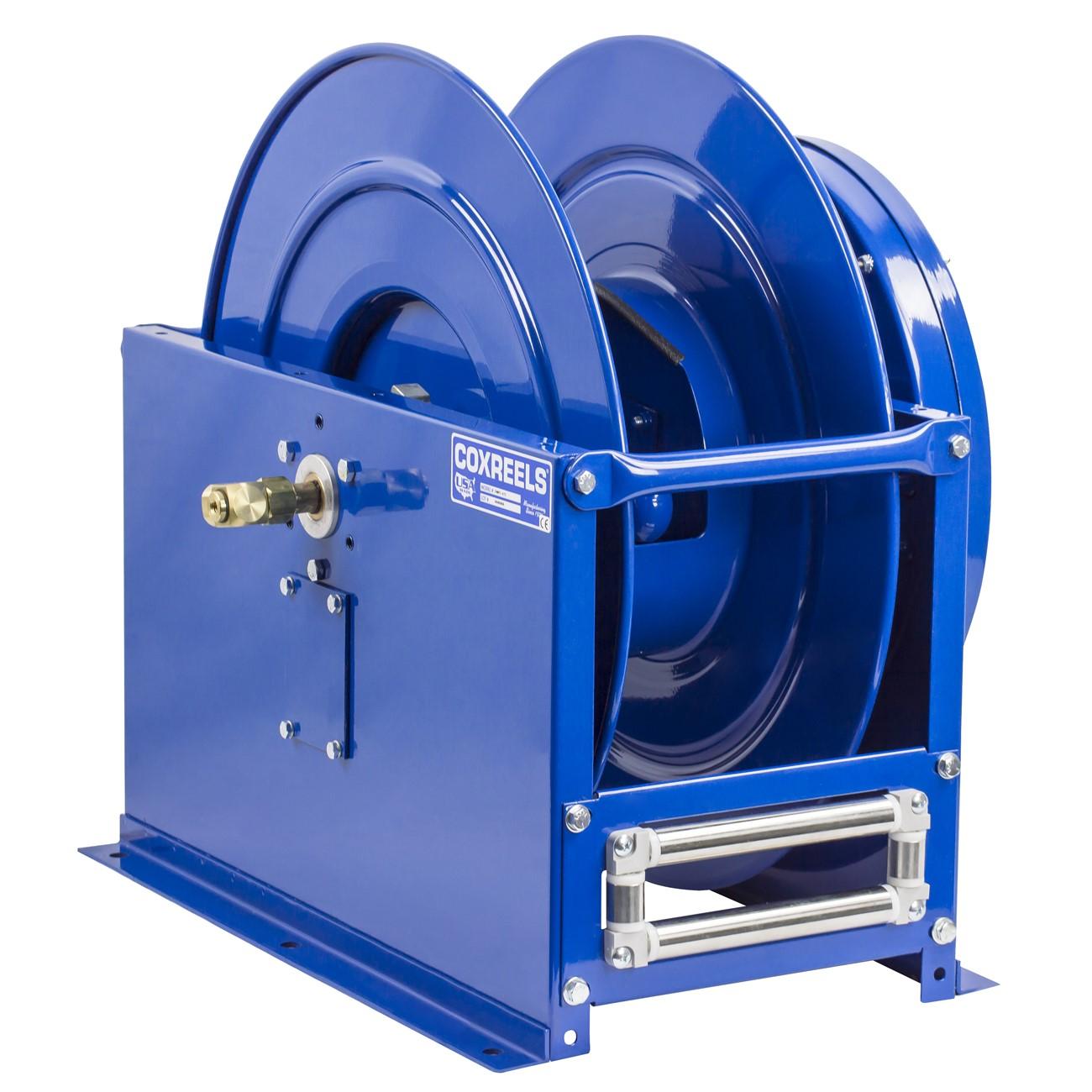

Coxreels DLPL-525 Dual Product Hose Reel 25 Ft Steel

Product Description

The COXREELS DLPL-525 is a spring-driven dual product delivery hose reel designed for applications that require simultaneous delivery of two fluid lines. Part of the COXREELS DP Series, it accepts 3/4 inch ID hose up to 25 feet in length and is built around a reinforced steel box-style frame with heavy-duty cross supports at all four corners. The unit features two external swivel inlets and two outlets, making it suited for high-volume, low-to-medium pressure fluid delivery in demanding service environments. Plumbing contractors, industrial fluid service technicians, and equipment maintenance professionals are the primary installers of this reel.

The DLPL-525 is used in settings where dual-hose delivery is required, such as lubrication service bays, fluid transfer stations, and industrial maintenance facilities. The spring-driven retraction mechanism keeps hose neatly stored and reduces wear from manual coiling. The box-style frame and reinforced steel construction support permanent wall, ceiling, or floor mounting in both indoor and covered outdoor environments. Its dual-swivel inlet design allows hose removal and replacement without dismounting the reel from its installation point.

Key Features

• Two machined solid brass 90-degree full-flow NPT swivel inlets support simple seal maintenance without removing the reel from its mount
• Enclosed cartridge-style motor is lubricated and removable for safe, convenient servicing
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and operator safety
• Exclusive low-profile outlet riser with open drum slot design delivers a non-crimping, flat smooth hose wrap
• CPC powder coat finish resists chips and rust for long service life
• Heavy-duty stainless steel pinch-proof rollers, stainless steel pawl spring, and self-lubricated flange bearings

Compatibility

Designed as a dual-product OEM-style spring-driven hose reel replacement or new installation for low-to-medium pressure fluid delivery systems requiring 3/4 inch ID hose up to 25 feet.

Installation Notes

Installation should be performed by a qualified plumbing or industrial service technician familiar with fluid delivery systems. Shut off all fluid supply lines and depressurize the system completely before connecting or disconnecting hose or swivel fittings. Secure the reel to a structurally sound mounting surface rated for the combined weight of the reel and filled hose. Verify all NPT thread connections are properly sealed with thread sealant appropriate for the fluid being handled.

Technical Specifications

• Hose Inner Diameter: 3/4 inches
• Hose Length: 25 feet
• Drive Type: Spring Driven
• Frame Material: Steel
• Swivel Inlets: 2 external brass NPT swivel inlets
• Outlets: 2
• Length: 25.5 inches
• Width: 22 inches
• Height: 22 inches
• Weight: 93 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: DLPL-525
