Coxreels DLPL-475 Dual Product Spring Hose Reel 1/2 in 75 Ft

Product Description

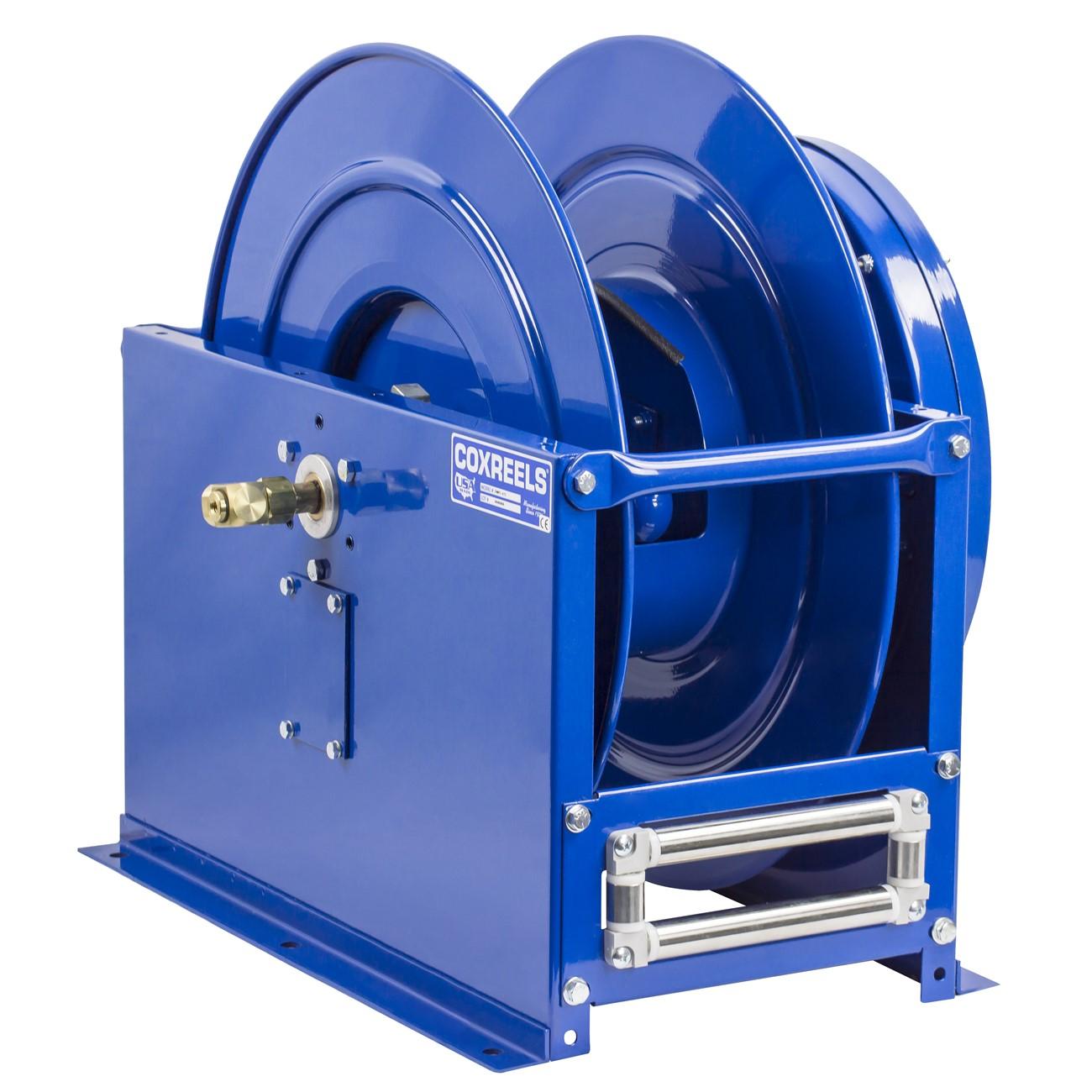

The COXREELS DLPL-475 is a dual product, spring-driven hose reel from the DP Series, designed for applications that require simultaneous delivery of two fluid products through a single reel assembly. It features two swivel inlets and two outlets, allowing two hoses to be routed and retracted together without tangling. The unit weighs 104 pounds and measures 33.5 inches long by 22 inches wide by 25.75 inches tall, making it a substantial, fixed-mount reel suited for demanding service bays, fleet maintenance facilities, or industrial fluid delivery stations. Licensed mechanics, lubrication technicians, and fluid handling specialists are the primary installers of this unit.

The DLPL-475 is built for low- to medium-pressure applications requiring large-volume dual-fluid delivery, such as simultaneous dispensing of oil and another fluid in a shop environment. The 1/2 inch inner diameter hose capacity with a 7/8 inch outer diameter and 75-foot hose length supports runs across large service bays or equipment yards. The heavy-duty, box-style steel frame with cross supports to all four corners provides the rigidity needed for permanent or semi-permanent wall and ceiling mounts in commercial and industrial settings.

Key Features

• Two external fluid paths with machined solid brass 90-degree full-flow NPT swivel inlets for easy seal maintenance without removing the reel from its mount
• Lubricated, enclosed cartridge-style spring motor is removable for convenient maintenance and service
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for added strength, durability, and hose protection
• Sturdy steel box-style frame with reinforced cross supports to all four corners handles dual hose loads
• Exclusive low-profile outlet riser and open drum slot design promotes flat, non-crimping hose wrap
• CPC powder coat finish resists chips and rust; stainless steel pinch-proof rollers, stainless steel pawl spring, and self-lubricated flange bearings extend service life

Compatibility

Designed as an OEM-style dual product hose reel for commercial and industrial fluid delivery systems requiring simultaneous two-line hose management in low- to medium-pressure service environments.

Installation Notes

Installation should be performed by a qualified fluid handling or mechanical technician familiar with dual-line hose reel systems. Shut off all fluid supply lines and relieve system pressure completely before mounting or servicing the reel. The unit requires a rigid mounting surface rated to support the reel weight plus hose and fluid load. Follow applicable facility codes and manufacturer torque guidance for all mounting hardware.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 7/8 inch
• Hose Length: 75 feet
• Drive Type: Spring driven
• Inlet Configuration: Dual swivel inlets, NPT brass
• Outlet Configuration: Dual outlets
• Frame Style: Box-style steel with cross supports
• Finish: CPC powder coat
• Length: 33.5 inches
• Width: 22 inches
• Height: 25.75 inches
• Weight: 104 pounds
• UPC: 674255814233

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: DLPL-475
