Coxreels DLPL-4100 Dual Product Hose Reel 100 Ft Steel

Product Description

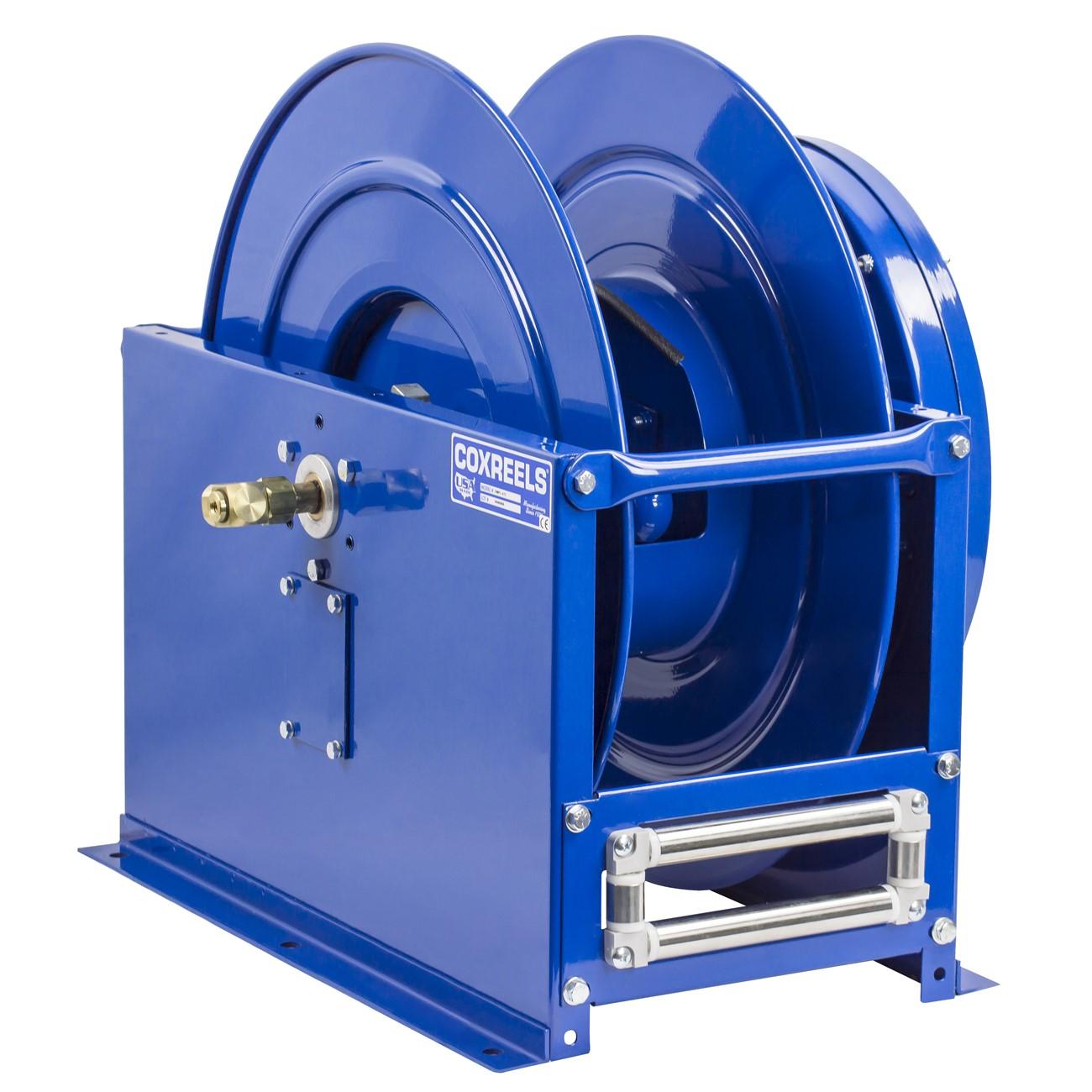

The COXREELS DLPL-4100 is a dual-product, spring-driven hose reel designed for industrial and commercial fluid delivery applications that require simultaneous handling of two hose lines. Part of the COXREELS DP Series, this unit features two swivel inlets and two outlets, allowing large-volume delivery at low to medium pressures through a single reel assembly. The box-style steel frame measures 33.5 inches long, 22 inches wide, and 29 inches tall, and weighs 138 pounds. It is built for demanding service environments where hose reel durability and ease of maintenance are essential. Licensed contractors and industrial service technicians are the primary installers.

The DLPL-4100 is suited for low and medium pressure dual-hose applications in industrial, agricultural, and commercial settings. Its large hose capacity accommodates 1/2 inch inner diameter hose at 100 feet per line, making it appropriate for fluid transfer, lubrication, and similar high-volume delivery scenarios. The spring-driven retraction mechanism supports efficient hose management in fixed or mobile service bays where manual rewind is impractical.

Key Features

• Two machined solid brass 90-degree full-flow NPT swivel inlets allow seal maintenance and hose installation without removing the reel from its mount
• Enclosed, lubricated cartridge-style motor is removable for maintenance without full disassembly
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and hose protection
• Reinforced steel box-style frame with cross supports to all four corners for rigidity under load
• Exclusive low-profile outlet riser and open drum slot design promotes flat, non-crimping hose wrap
• CPC powder coat finish resists chips and rust; stainless steel pinch-proof rollers, stainless steel pawl spring, and self-lubricated flange bearings for long service life

Compatibility

Designed as an OEM-style dual-product spring-driven hose reel for low and medium pressure industrial and commercial fluid delivery systems requiring simultaneous dual-hose operation with 1/2 inch ID hose.

Installation Notes

Installation should be performed by a qualified technician familiar with industrial hose reel mounting and fluid system connections. Shut off and depressurize all fluid lines before connecting or servicing the reel. Secure the reel to a structurally adequate mount capable of supporting the 138-pound unit plus hose and fluid load. Follow all applicable local codes and manufacturer torque guidelines for NPT fittings when making inlet and outlet connections.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 7/8 inch
• Hose Length: 100 feet
• Reel Type: Dual Product Spring Driven
• Frame Material: Steel
• Length: 33.5 inches
• Width: 22 inches
• Height: 29 inches
• Weight: 138 pounds
• UPC: 674255814219

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: DLPL-4100
